Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Electronic Control Unit | In trunk, behind left trunk trim panel. |
| Alternator Dump Module | In engine compartment, near air cleaner. See Figure . |

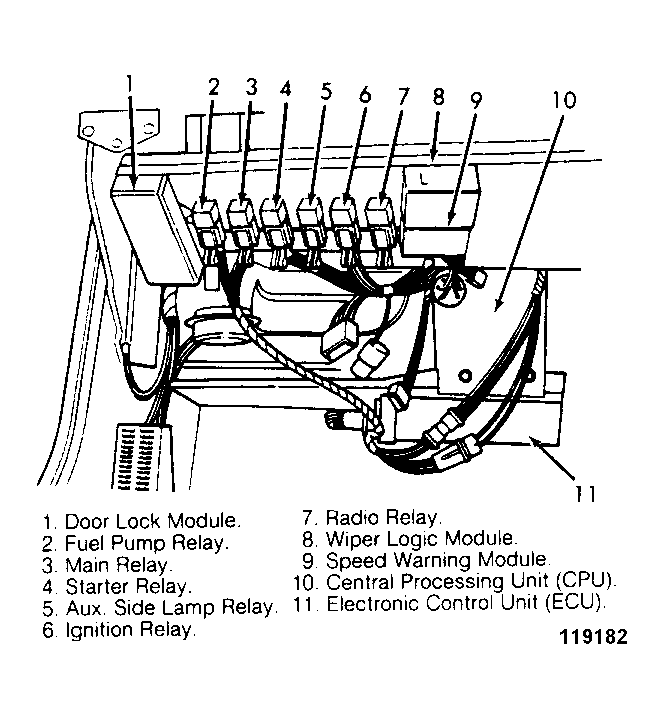

| Central Processing Unit (CPU) | Under left side of dash panel. See Figure . |
| Cruise Control Unit | Under right side of dash panel. |
| Door Lock Module | In left side door panel. See Figure . |
| Electronic Control Unit (ECU) | Under left side of dash panel. See Figure . |
| Engine Management ECU | Behind center of dash panel. See Figure . |
| Gearbox ECU | Behind left side of dash panel. See Figure . |
| Headlight Failure Module | Behind each headlight. |
| Light Logic Module | Behind left side of instrument panel. See Figure . |
| Rear Light Failure Modules | Behind each rear light. |
| Speed Warning Module | Behind left side of dash. See Figure . |
| Wiper Logic Module | Behind left side of dash. See Figure . |
