Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | Behind left side panel in trunk. | |
| A/C Control Unit | On right side of A/C unit. See Figure . | |
| A/C Servo Control Unit | On lower left corner of A/C assembly. | |
| Audio Warning Control Unit | Under right side of dash, behind glove box. | |
| Brakelight Failure Module | Under rear deck lid. | |
| Convertible Top Control Unit | Under rear deck lid. | |
| Door Lock Control Unit | In right side door panel. | |
| Electronic Control Unit (ECU) | ||
| Ignition | Behind right kick panel. | |
| PFI | On right side of trunk. | |
| Power Module | ||

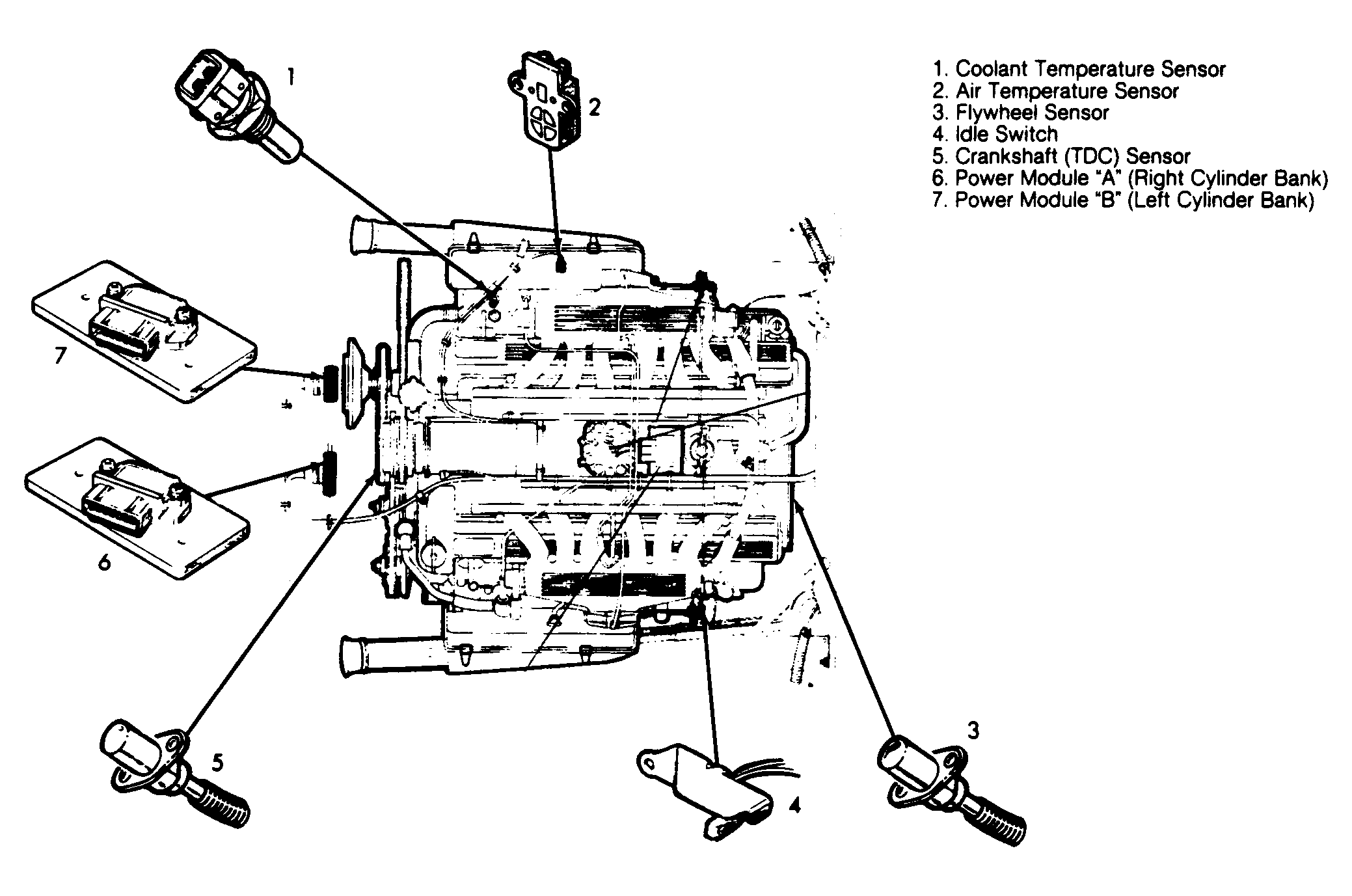

| Left Cylinder Bank ("B") | Forward of engine. See Figure . | |
| Right Cylinder Bank ("A") | Forward of engine. See Figure . | |
| Seat Belt Control Unit | Under right side of dash. | |
| Speed Control Interface Module | On left side of trunk. | |
| Warning Light Check Unit | Under left side of dash. | |
