Anti-Lock Brake System: Testing: Notes
WARNING:
DO NOT loosen or remove any ABS hydraulic component until system has been depressurized. Failure to depressurize system may lead to personal injury. See DEPRESSURIZING BRAKE SYSTEM under REMOVAL & INSTALLATION.
NOTE:

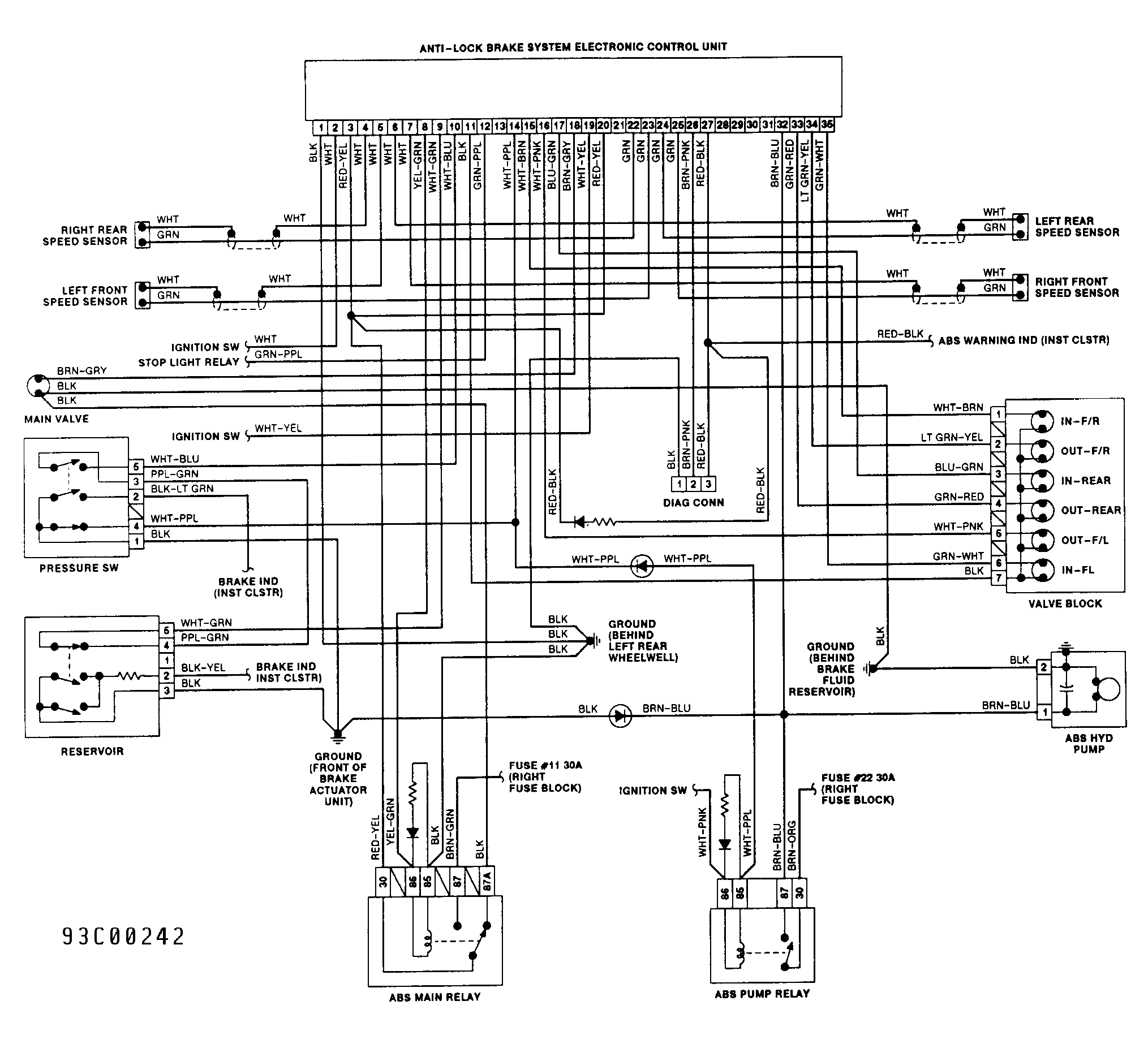

To aid in testing components, see Figure
for wire colors and terminal identification.
