Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component	Location

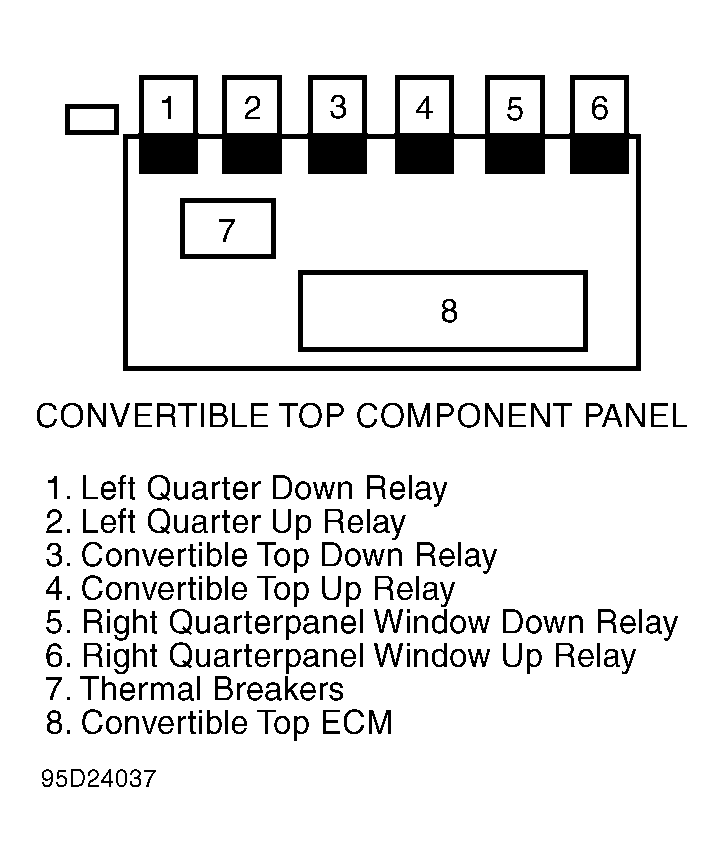

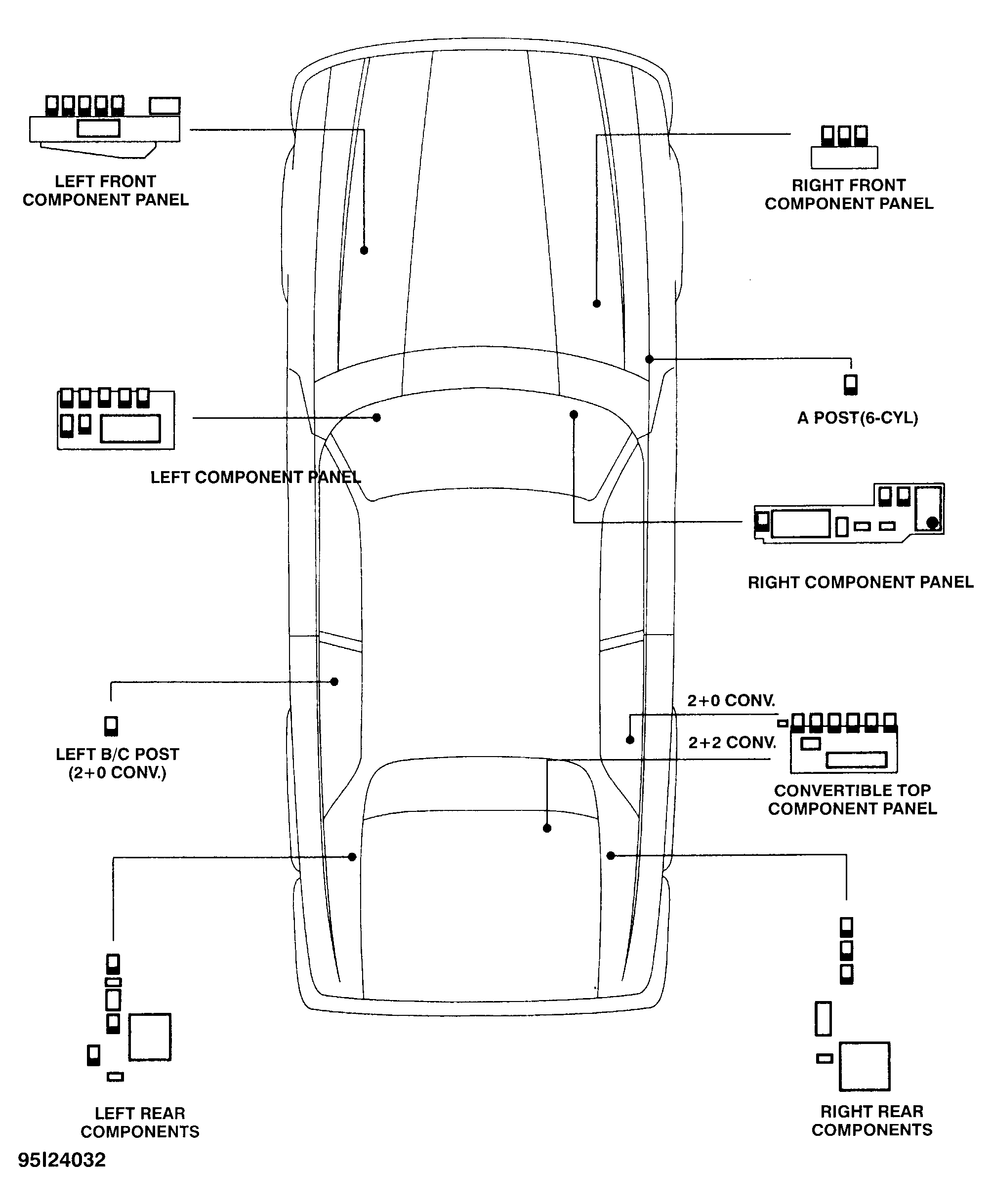

Convertible Top Fuse	Next to convertible top component panel. See Figure & Figure .

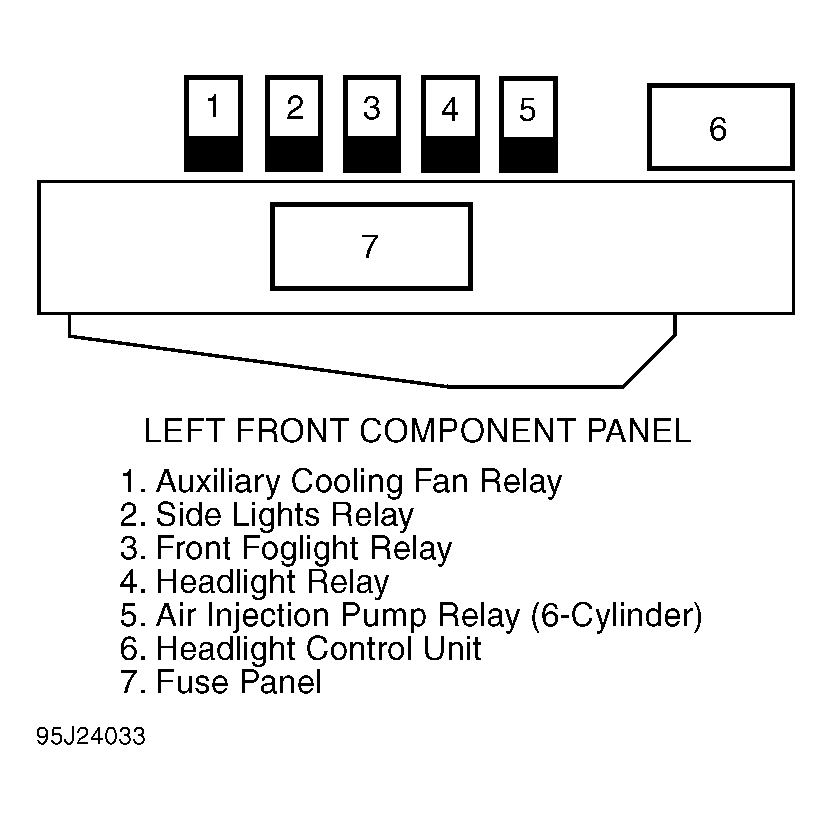

Engine Compartment Fuse Block	On left front inner fender panel. See Figure .
Luggage Compartment Fuse Block	On right side of luggage compartment. See Figure .
Passenger Compartment Fuse Block	Behind left and right side of dash. See Figure .

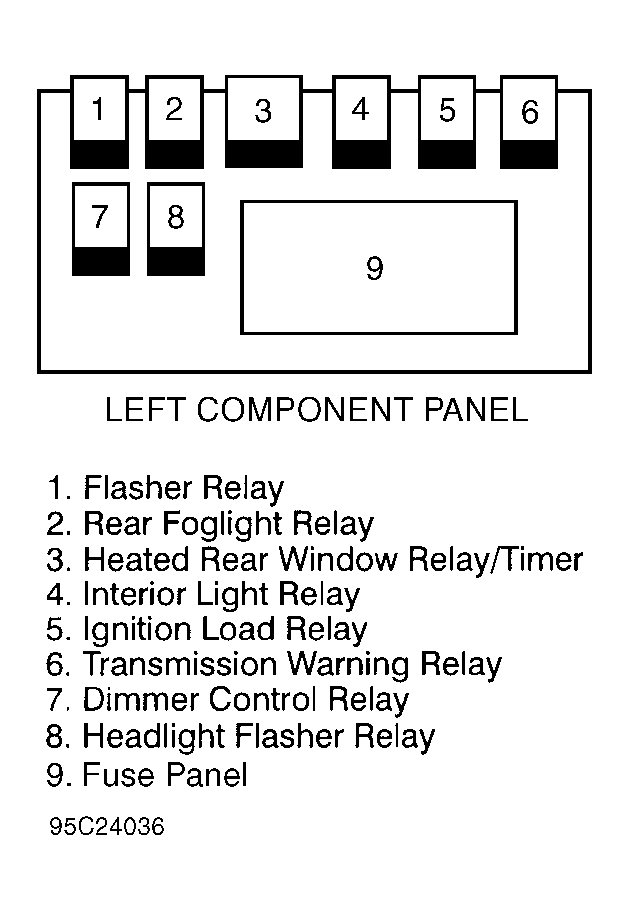

Window Thermo Breaker	Behind left side of dash, on right component panel. See Figure & Figure .
