Removal & Installation
- Disconnect negative battery cable. Remove door armrest. From inside of door pocket, remove guard light assembly retaining screw. Remove guard light assembly. Carefully pull around outer edge of door panel to disengage locating tangs.

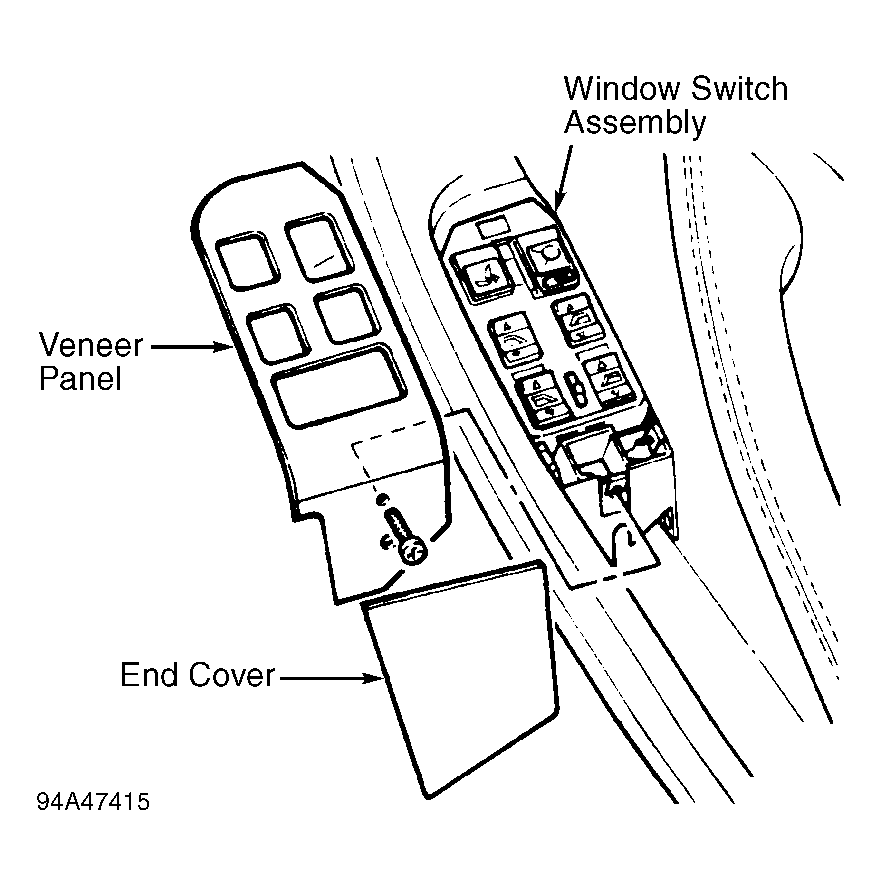

- Remove door panel and disconnect wiring harness connectors. Place door panel on clean work surface. Remove door pocket from door panel. Remove window switch assembly end cover. See Fig 1
. Remove veneer panel. Remove switch assembly from door pocket. To install, reverse removal procedure.
Courtesy of JAGUAR CARS, INC.
