C2: Check For O2 Sensor Failure

Run the engine for a period to warm the sensor and then maintain a steady speed of approximately 2500 rpm3.
Measure the voltage between EM022/001 and EM022/002

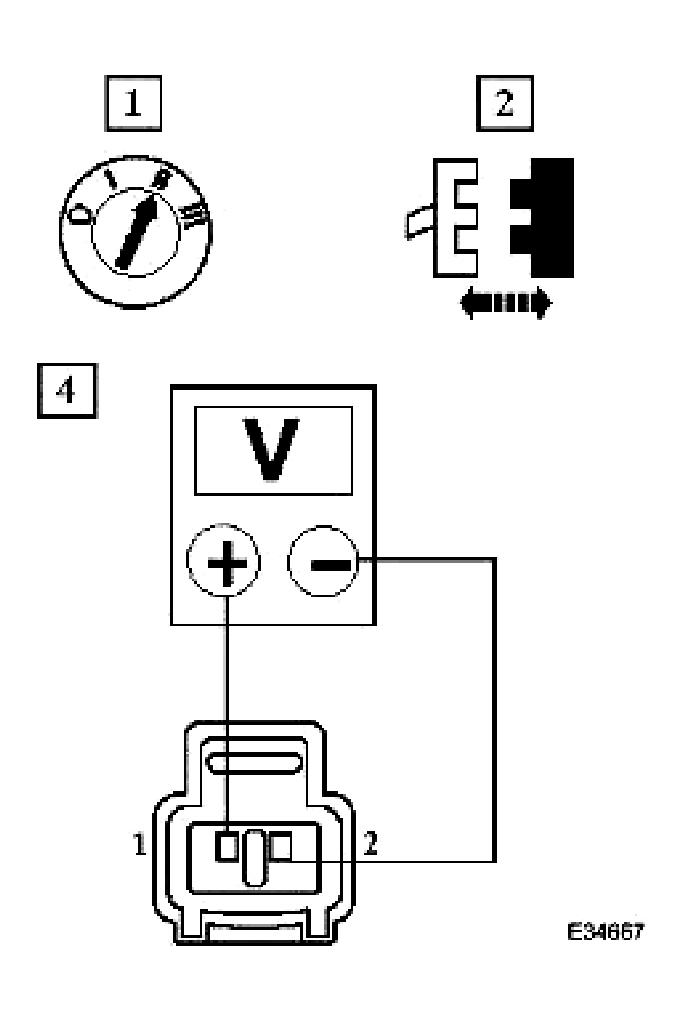

Fig 1: Measuring Voltage Between EM022/001 And EM022/002
Courtesy of JAGUAR CARS, INC.
- Is the voltage between 600mV and 1.0 Volt?
Yes : GO to C3

No : Renew O2 sensor and reconnect plug(s)

GO to C6
