Circuit Protection Devices
CIRCUIT PROTECTION DEVICES

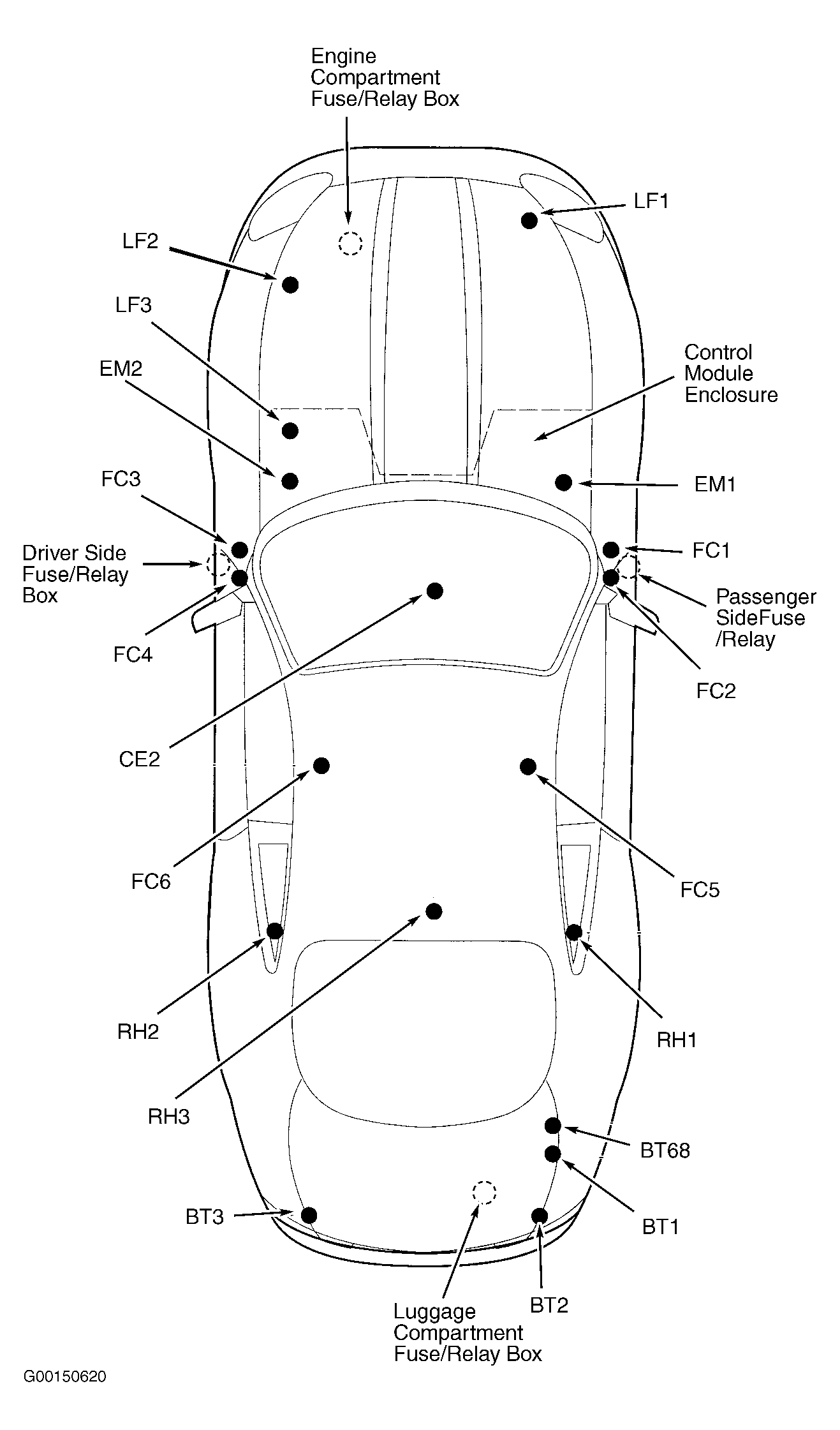

| Component | Component Location |
|---|---|
| Driver Side Fuse/Relay Box | Behind left side of dash. See Figure . |
| Engine Compartment Fuse/Relay Box | Left front of engine compartment. See Figure . |
| Engine Management Fuse/Relay Box | Right rear of engine compartment, in control module enclosure. |
| Luggage Compartment Fuse/Relay Box | Right side of luggage compartment. See Figure . |
| Passenger Side Fuse/Relay Box | Behind right side of dash. See Figure . |
