Quarter Window Motor: Installation
- With an assistant holding quarter glass, install molded water shield (later type) and window motor/regulator assembly on body. Install, but DO NOT fully tighten, lock nuts attaching motor regulator assembly.
- Install water shield (early PVC type). Install and fully raise convertible top assembly, until it latches properly. DO NOT install speaker, rear quarter molding, or rear seat at this time.

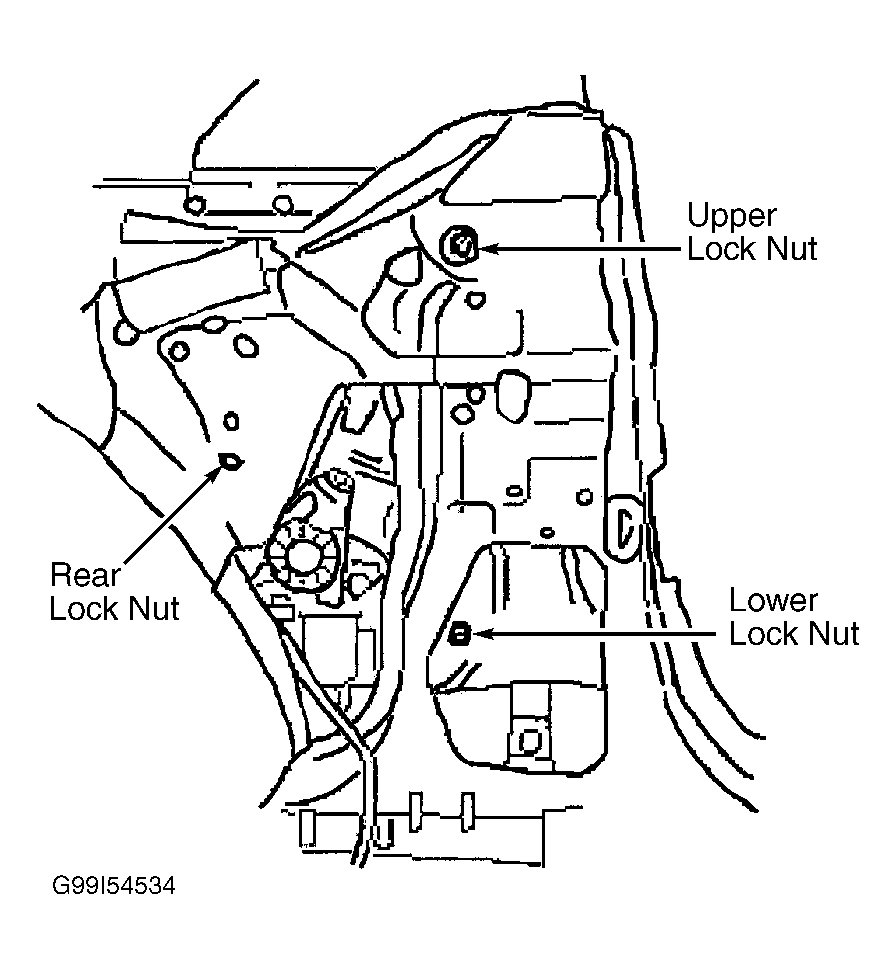

- Fully raise door glass. Connect a 12-volt battery to rear quarter glass motor, and raise glass until it just contacts top seal. Loosen lower lock nut. See Fig 1. Move quarter glass to obtain a.59" (15 mm) gap between front edge of rear quarter glass frame and rear edge of door glass. Tighten lower lock nut.
- Loosen upper lock nut. Turn upper lock nut to achieve lateral alignment of quarter glass upper edge with top seal. Tighten upper lock nut. Loosen rear lock nut. Turn rear lock nut to achieve lateral alignment of quarter glass rear edge with top seal. Tighten rear lock nut.
- Fully raise rear quarter glass, check alignment around seals, and readjust as necessary. Connect wiring harness for quarter window motor. Fully raise and lower convertible top. Recheck alignment of glass once more. Reverse removal procedure to complete installation.
