Jaguar
›
1998
›
XK8 2D Convertible
›
Repair and Diagnosis
›
Engine Mechanical
›
Exhaust System
›
Description & Operation
›
Oxygen Sensor (O2
›
Circuit Diagram, O2 Sensors / ECM
Circuit Diagram, O2 Sensors / ECM

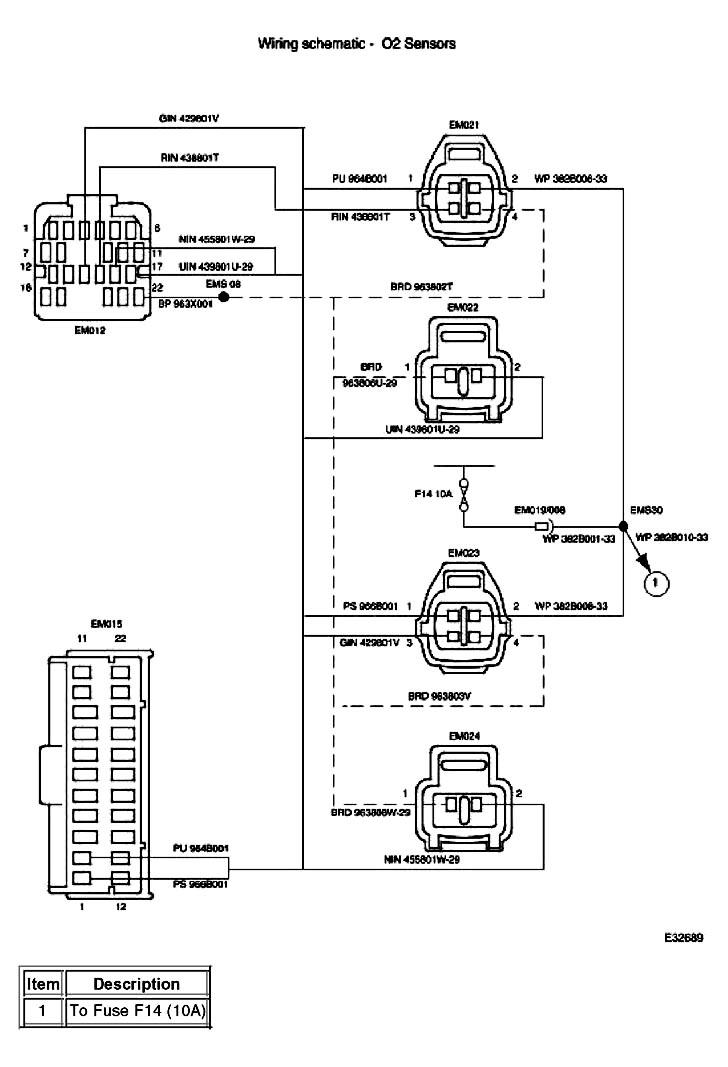

Fig 1: O2 Sensors/ECM - Circuit Diagram
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
