Circuit Protection Devices
CIRCUIT PROTECTION DEVICES

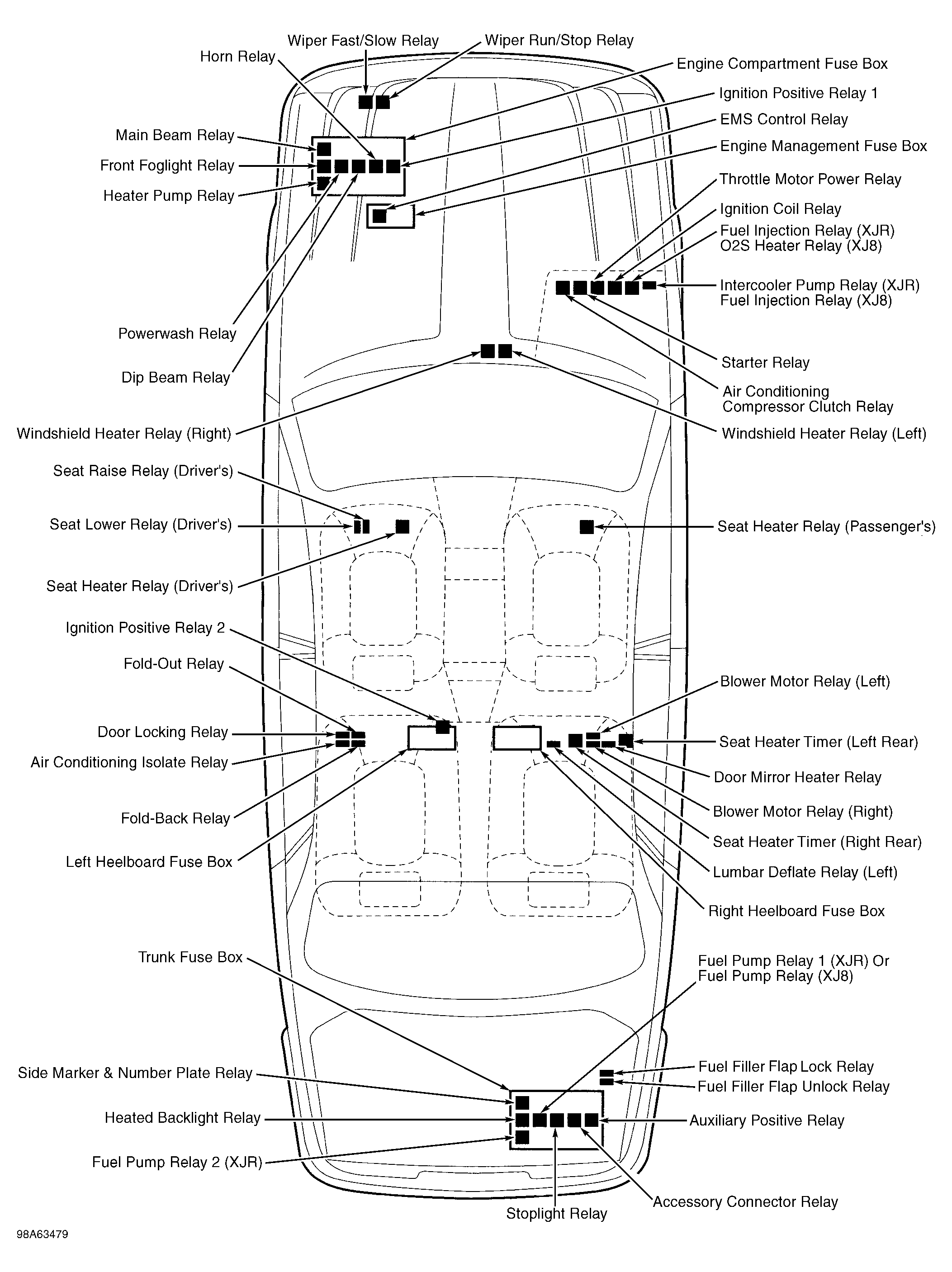

| Component | Component Location |
|---|---|
| Engine Compartment Fuse Box | In left front of engine compartment. See Figure . |
| Engine Management Fuse Box | In left side of engine compartment. See Figure . |
| Left Heelboard Fuse Box | Front of left rear seat. See Figure . |
| Right Heelboard Fuse Box | Front of right rear seat. See Figure . |
| Trunk Fuse Box | On right rear side of luggage compartment. See Figure . |
