Engine and Transmission Control Module Compartment Relays
Engine and Transmission Control Module Compartment Relays

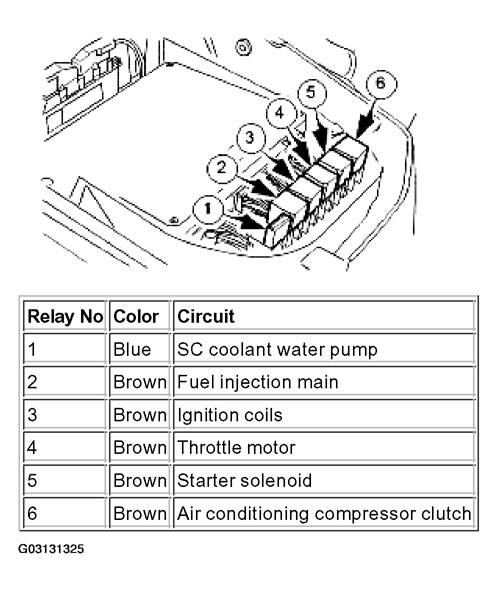

Fig 1: Identifying Engine And Transmission Control Module Compartment Relays
