Component Locations
NOTE:

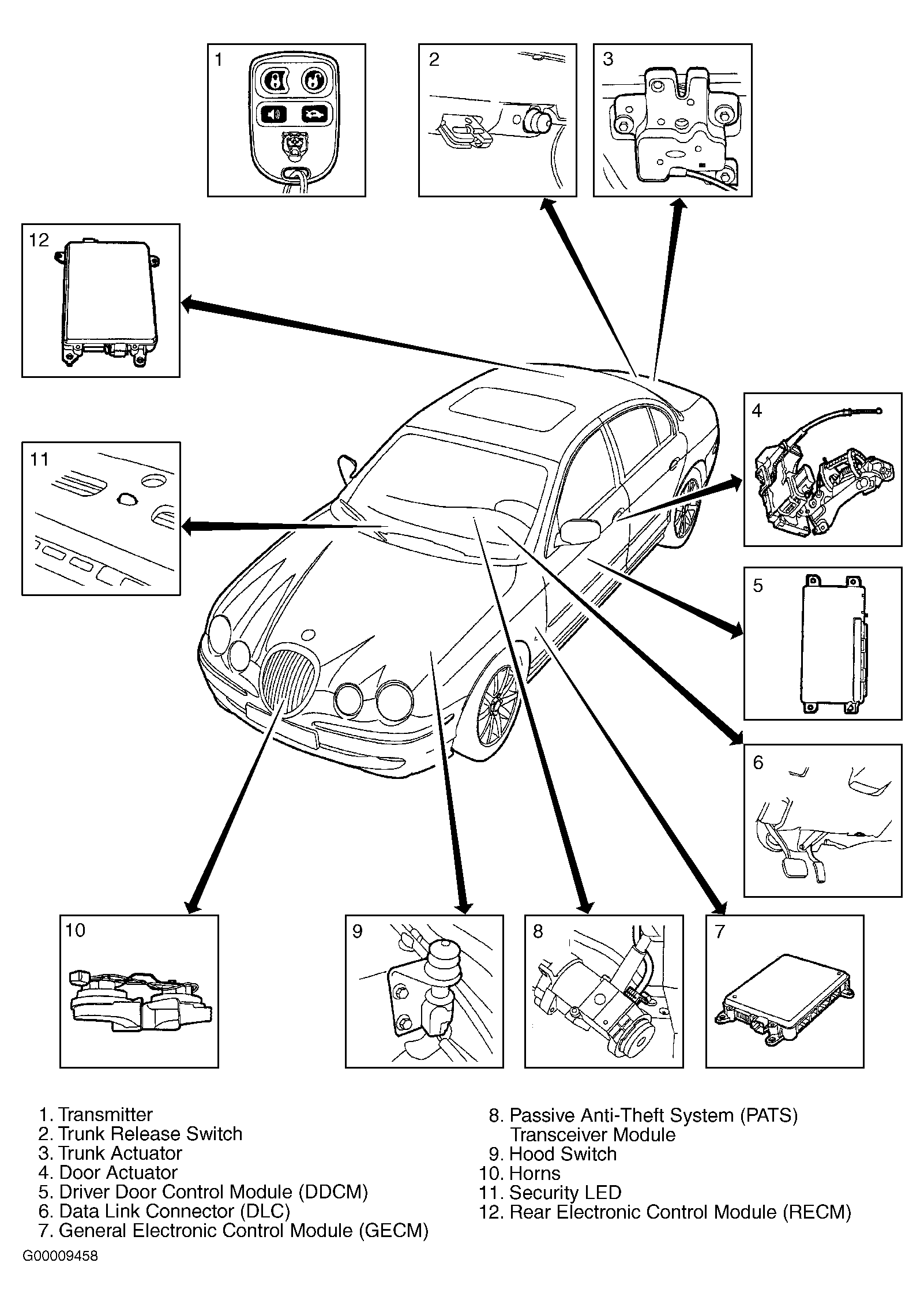

For S-type anti-theft system component locations see Fig 1
.
COMPONENT LOCATIONS
| Application | Location |
|---|---|
| Body Control Module | On Passenger's Air Bag Bracket, Above Glove Box |
| Driver's Door Control Module | At Bottom Center Of Driver's Door |
| Key Transponder Control Module (XJR & XJ8) | Underneath Dash, Just Right Of Instrument Cluster |
| Key Transponder Control Module (XK8) | Next To Driver's Side Fuse/Relay Box |
| Passenger's Door Control Module | At Bottom Center Of Passenger's Door |
| Security Control Module | On Right Side Of Trunk, Below Fuse/Relay Box |
