Component Locations

COMPONENT LOCATIONS

Component	Location
Cooling Fans	On Rear Of Radiator Assembly. See Fig 1.
Engine Coolant Temperature (ECT) Sensor	In Coolant Outlet Pipe. See Fig 2.
Engine Control Module (ECM)	In Control Module Enclosure, Right Rear Of Engine Compartment. See Fig 3.
Engine Management System (EMS) Relay	In Engine Management Fuse Box, Left Side Of Engine Compartment. See Fig 4.
Radiator Fan Control Relay Module	Behind Left Side Of Front Bumper. See Fig 3.

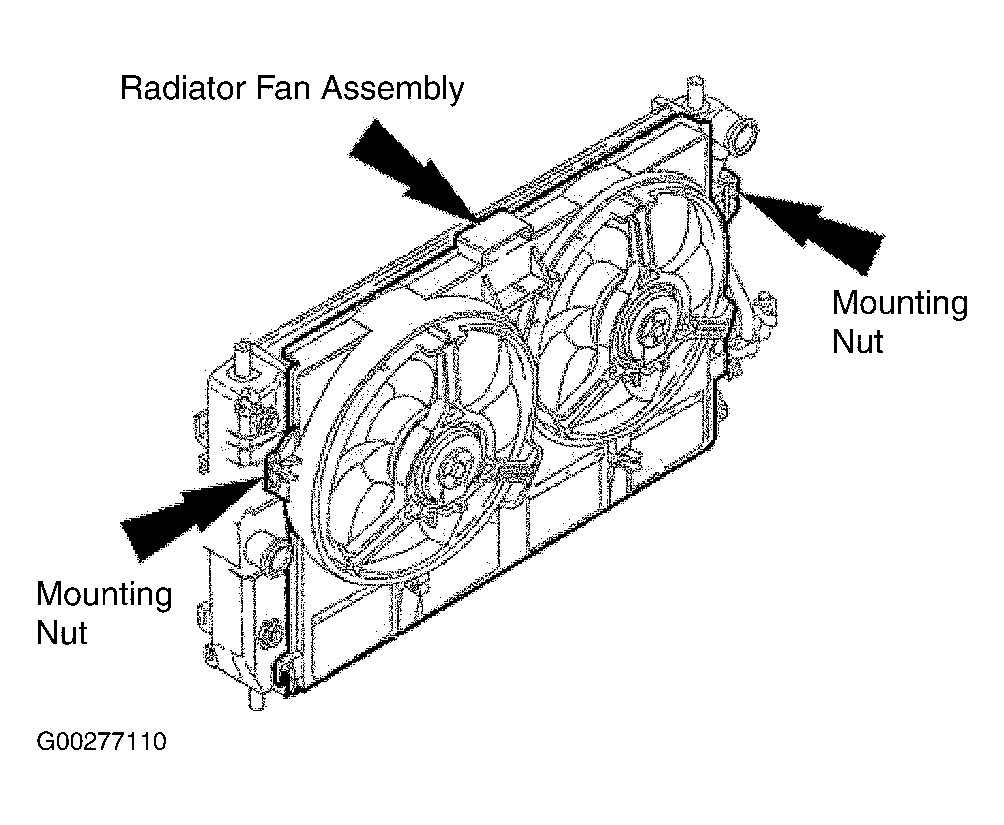

Fig 1: Locating Radiator Fan Assembly

Courtesy of JAGUAR CARS, INC.

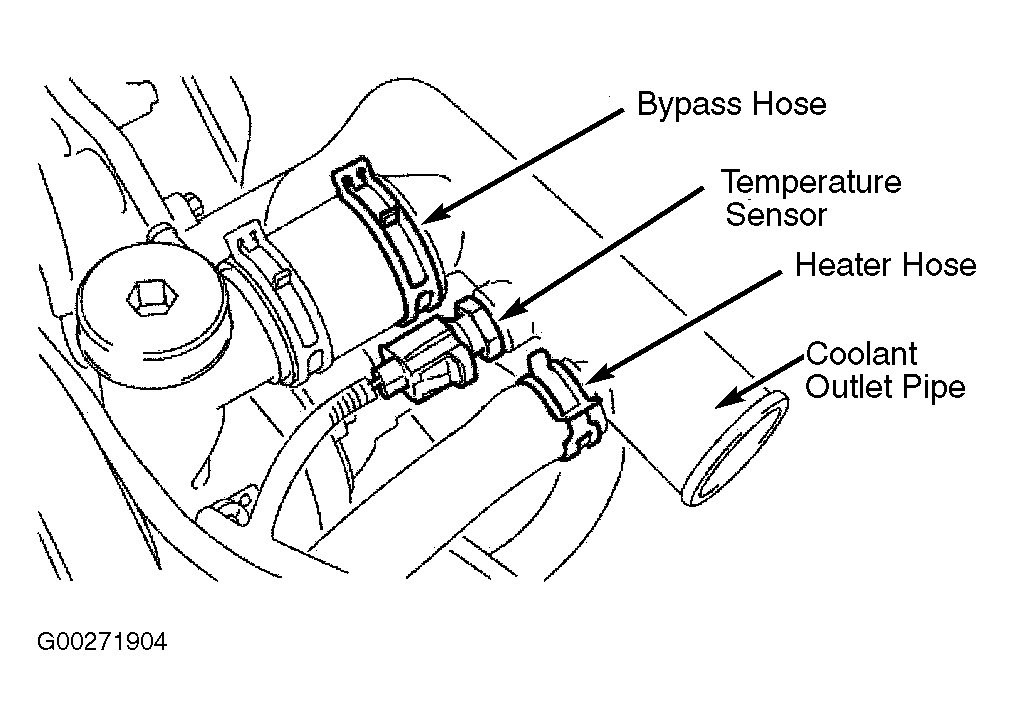

Fig 2: Locating Engine Coolant Temperature (ECT) Sensor

Courtesy of JAGUAR CARS, INC.

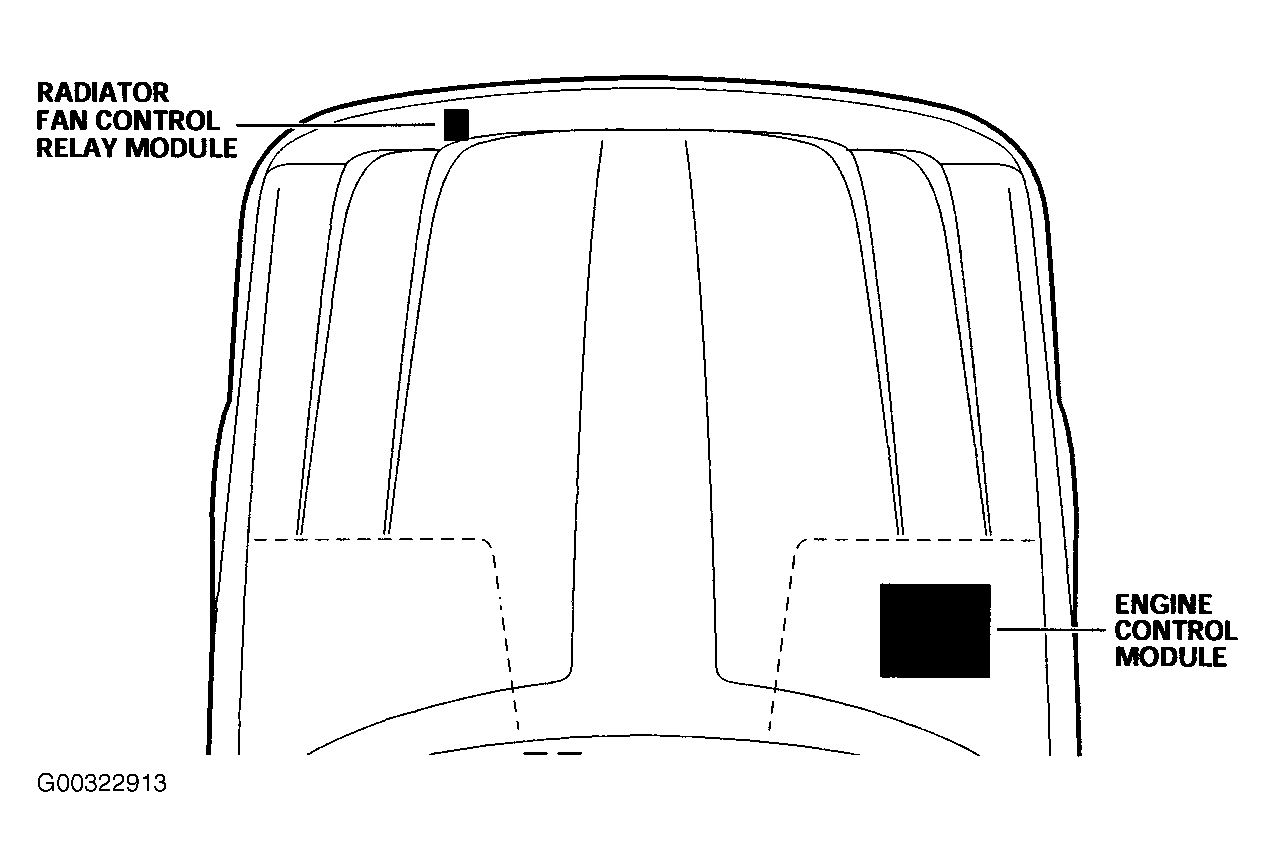

Fig 3: Locating ECM & Radiator Fan Control Relay Modules

Courtesy of JAGUAR CARS, INC.

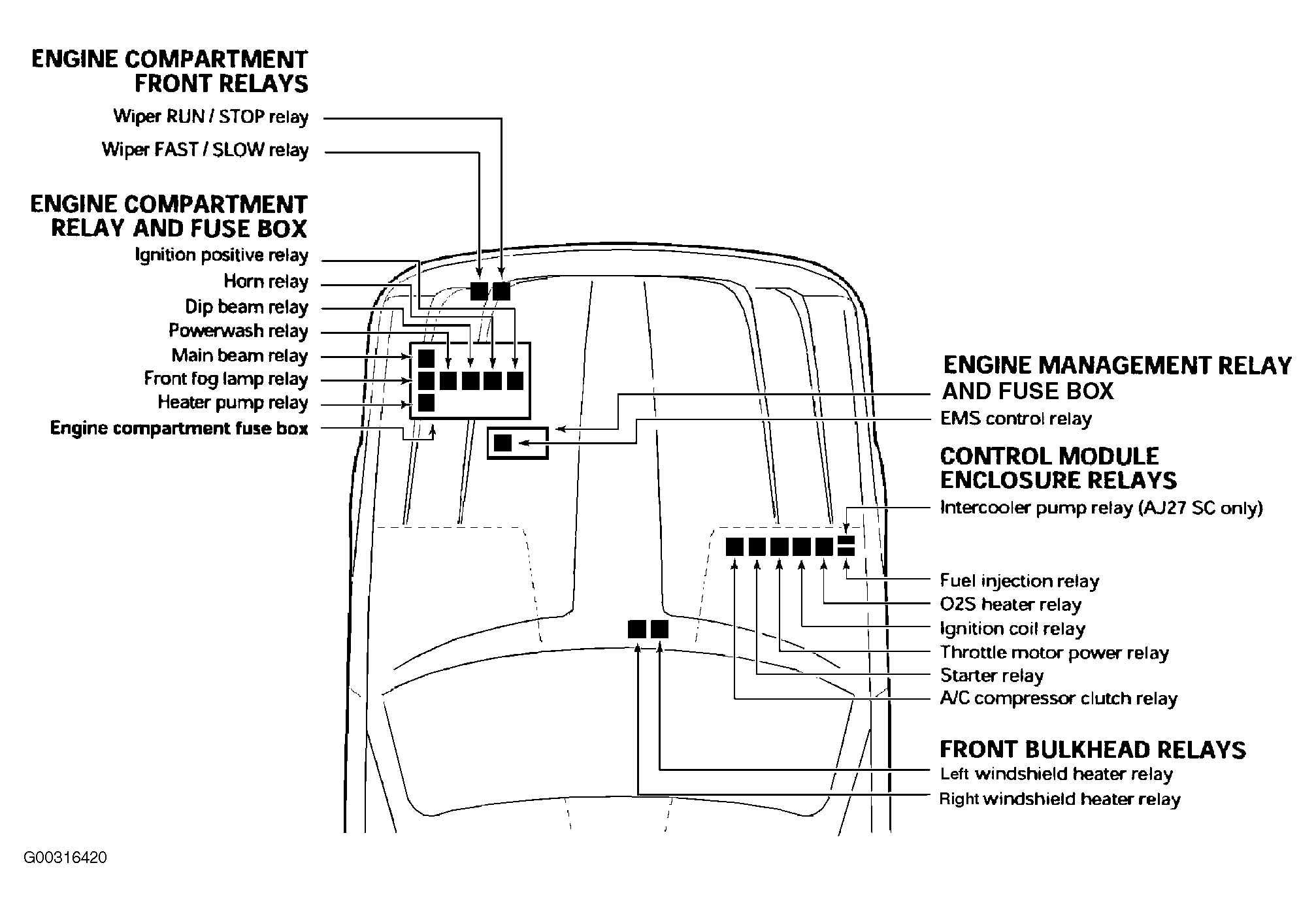

Fig 4: Locating EMS Control Relay & Engine Compartment Fuse/Relay Box

Courtesy of JAGUAR CARS, INC.
