Engine Control Module (ECM) - Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure the electrical connector locate correctly in the engine control module. Do not force or overtighten the electrical connector. Failure to follow these instructions may cause damage to the electrical connector.

To install, reverse the removal procedure.

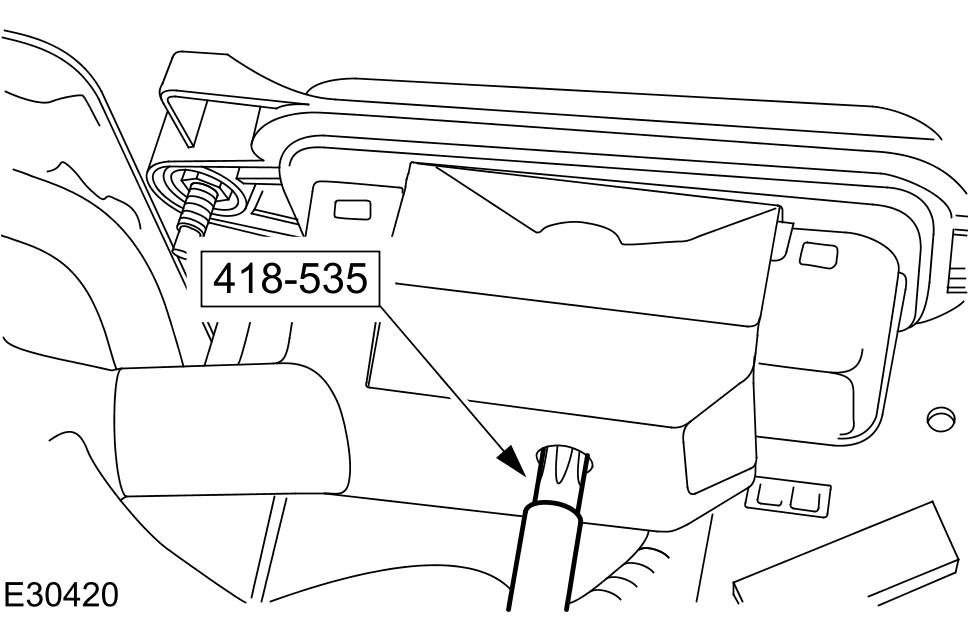

Courtesy of JAGUAR CARS, INC.
Tighten to 6 Nm.
