Description and Operation: Notes
WARNING: This page is about a different car, the 2001 Jaguar XJR and 2001 Jaguar XJ8. However, it is still accessible from the selected car via links, so may be relevant.

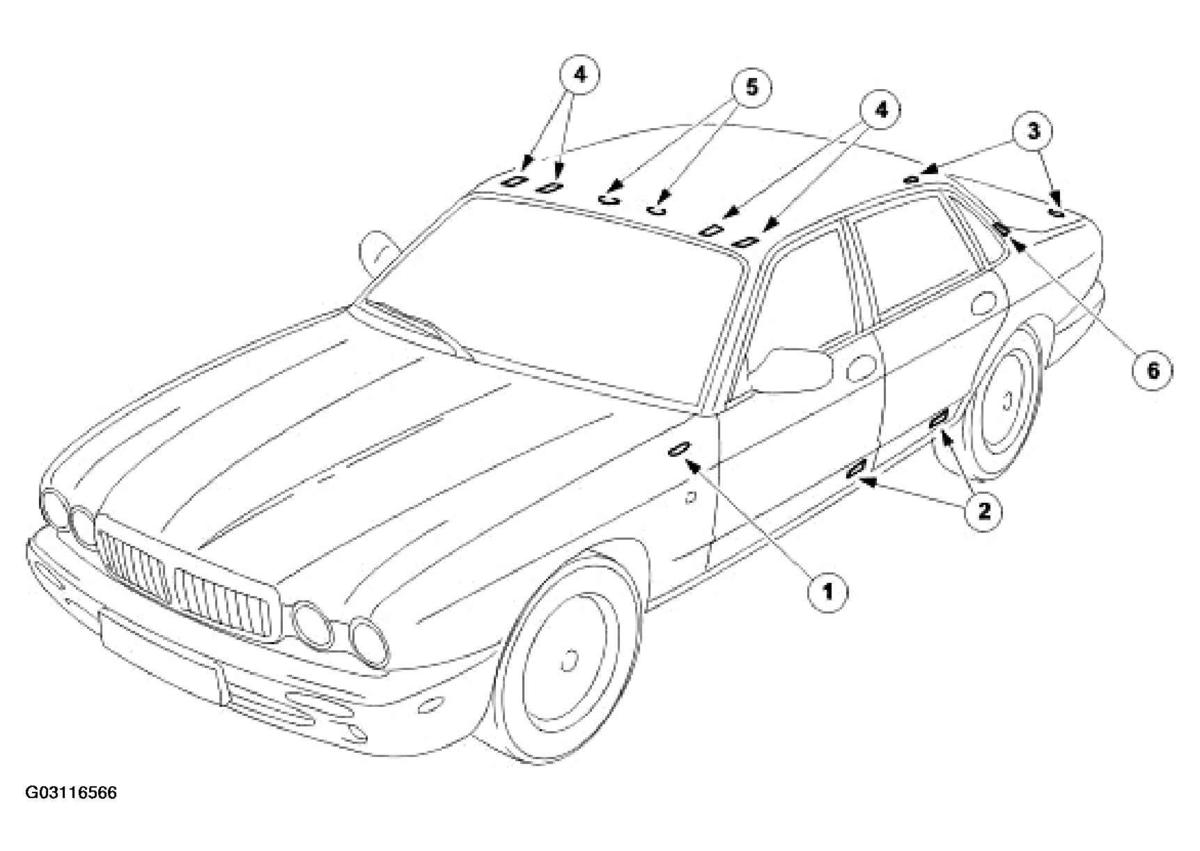

INTERIOR LIGHTING SYSTEM COMPONENTS DESCRIPTION
|
|
| Item |
Description |
| 1 |
Glovebox Lamp |
| 2 |
Door Guard / Puddle Lamp |
| 3 |
Luggage Compartment Lamp |
| 4 |
Sun Visor Vanity Mirror Lamp |
| 5 |
Roof Console Map / Courtesy Lamp |
| 6 |
Rear Quarter Reading / Courtesy Lamp |
