Timing Gear

WARNING: This page is about a different car, the 2002 Jaguar XKR and 2002 Jaguar XK8. However, it is still accessible from the selected car via links, so may be relevant.

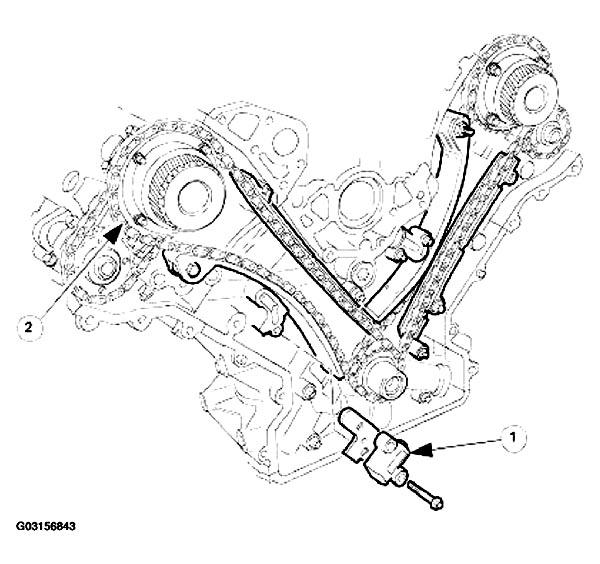

Fig 1: Identifying Timing Gear Components

Courtesy of JAGUAR CARS, INC.

Single row primary and secondary chains drive the camshafts of each cylinder bank. The primary chains transmit the drive from two sprockets on the crankshaft to a sprocket on each intake camshaft. The secondary chains transmit the drive from a second, smaller sprocket on the intake camshaft to a sprocket on the exhaust camshaft.

Each chain has a hydraulic tensioner operated by the engine lubricating system. A jet of oil from the end of each tensioner lubricates the chains. The primary chain tensioners act on pivoting flexible tensioner blades, the secondary chain tensioners act directly on the chains. Guide rails are used on the drive side of the primary chains.

A key locates the two drive sprockets on the crankshaft and these are retained in position by the crankshaft torsional vibration damper.

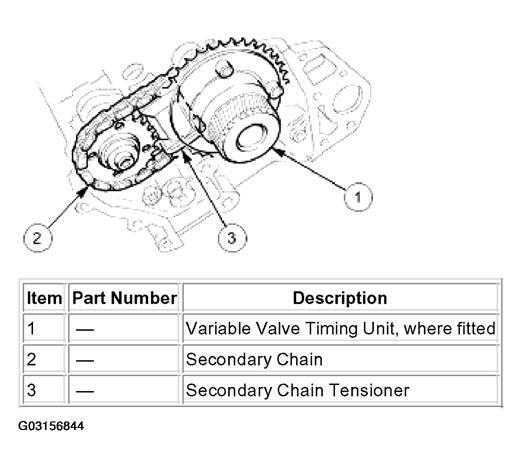

Fig 2: Identifying Timing Gear Components

Courtesy of JAGUAR CARS, INC.

The variable valve timing units and the exhaust camshaft sprockets are a non-interference, non-keyed fit on their respective camshafts. They are clamped in place on the camshafts by the securing bolt and clamping plate/washer.
