Pressure Regulator Solenoid Table
Pressure Regulator Solenoid Table

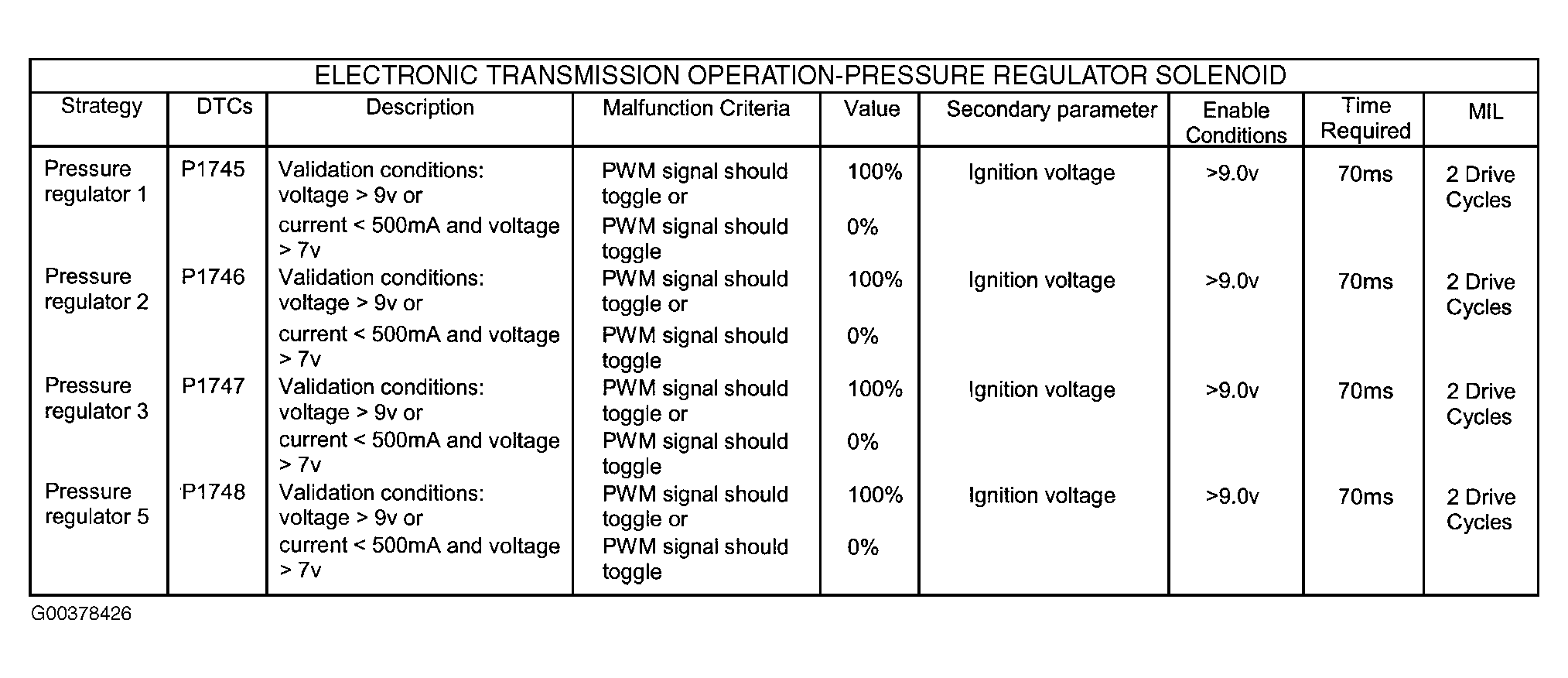

Fig 1: Pressure Regulator Solenoid Table
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
