Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

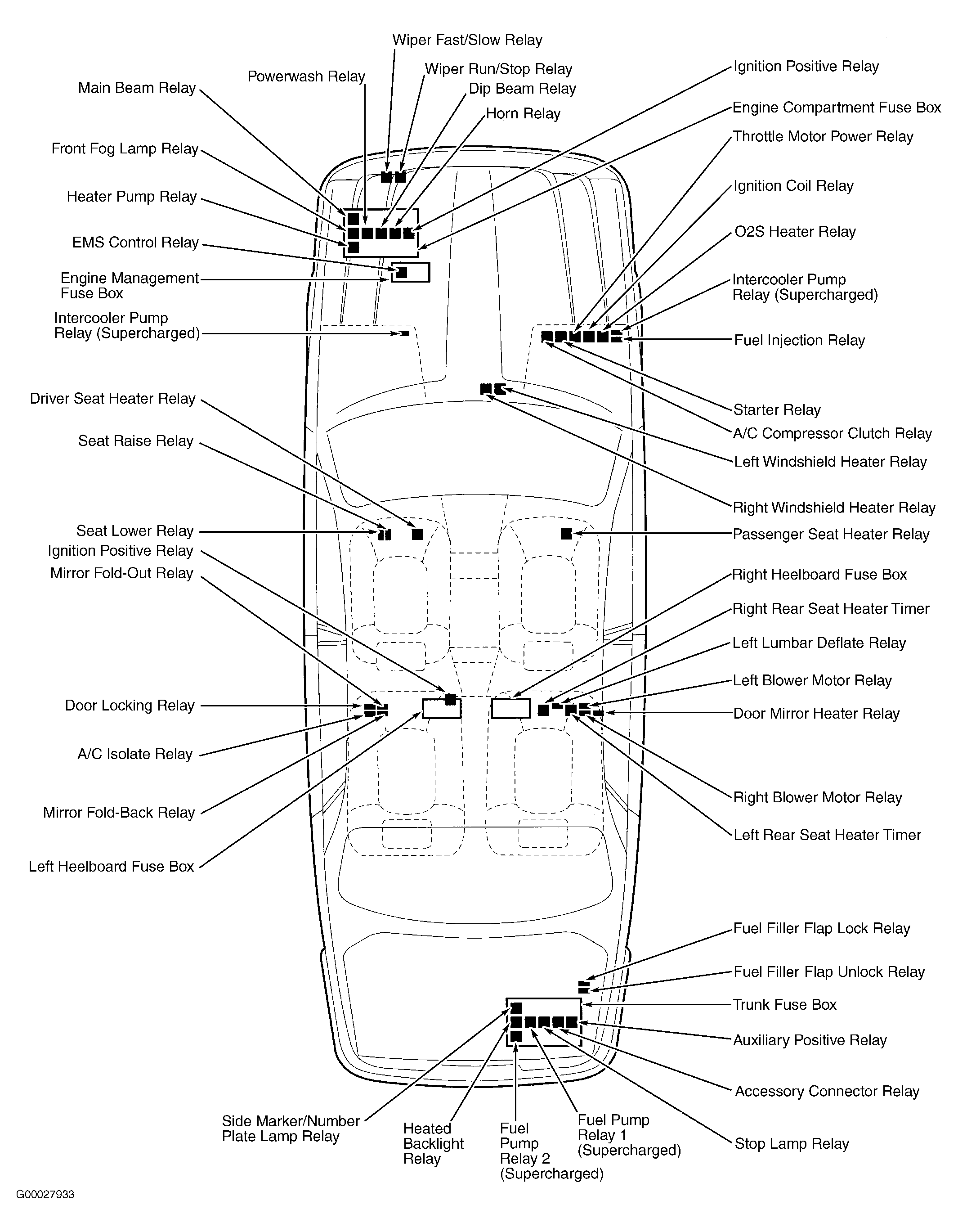

Fig 1: Vehicle Overview

Courtesy of JAGUAR CARS, INC.

Fig 2: Vehicle Overview

Courtesy of JAGUAR CARS, INC.
