Passenger Compartment Fuse/Relay Locations: Notes

Passenger compartment fuse and relay boxes are located on the left and right heelboards under rear seat. Additional relays are located under front seats. See Fig 1.

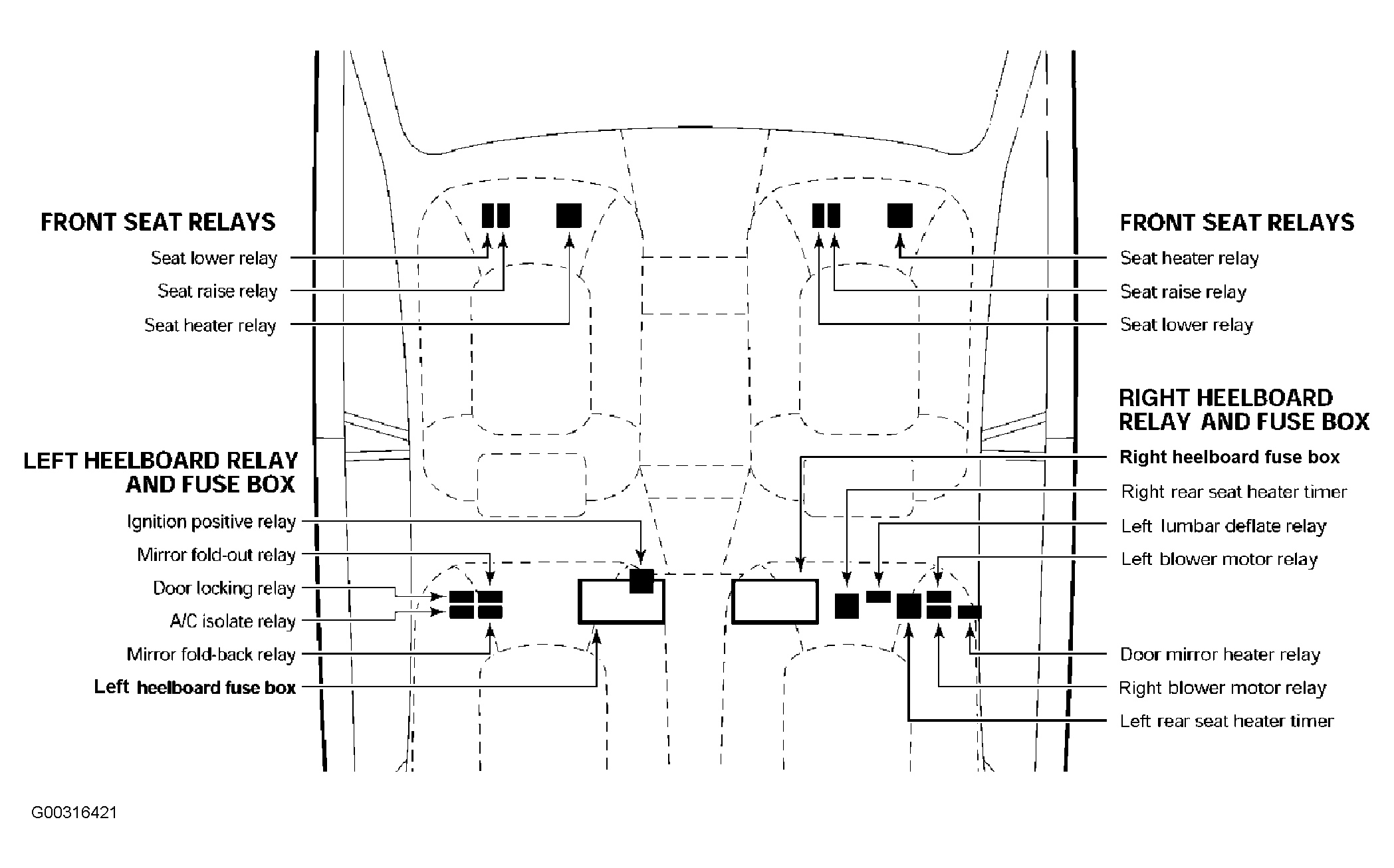

Fig 1: Identifying Passenger Compartment Fuse/Relay Locations

Courtesy of JAGUAR CARS, INC.
