Navigation System Compact Disc (CD) Unit: Installation

  1. Position DVD reader module in mounting bracket and install screws.

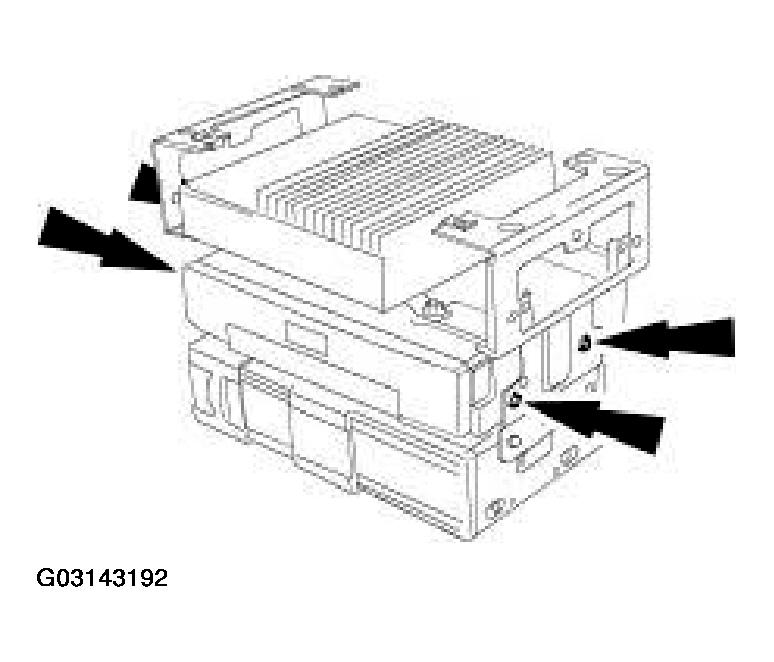

    Fig 1: Installing DVD Reader Module In Module Stack
    G03143192
  2. Position audio/DVD reader module stack at mounting bracket and connect DVD reader harness connectors.

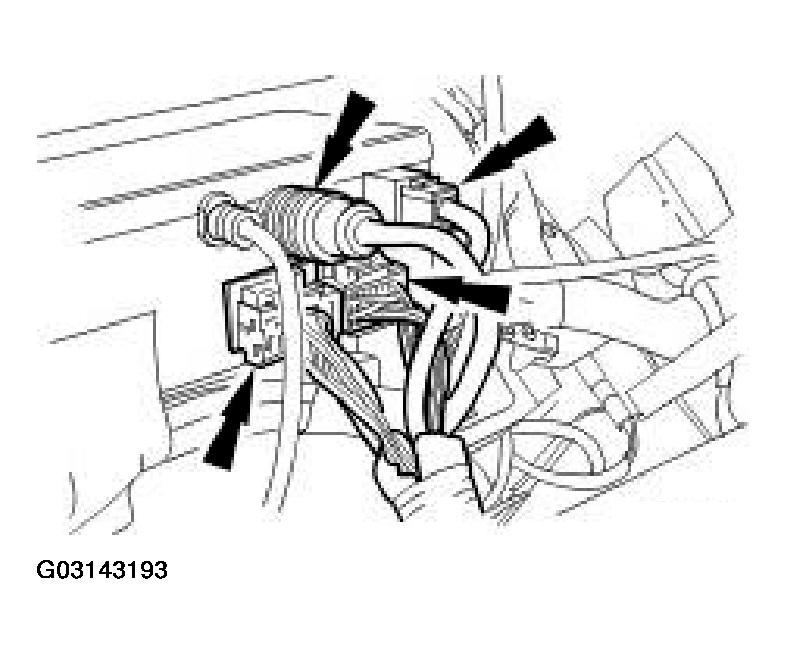

    Fig 2: Connecting Audio/DVD Reader Module Stack Connectors
    G03143193
  3. Ensure that amplifier and CD autochanger harnesses will not obstruct stack installation.
  4. Finally position stack in mounting bracket and install bolts.

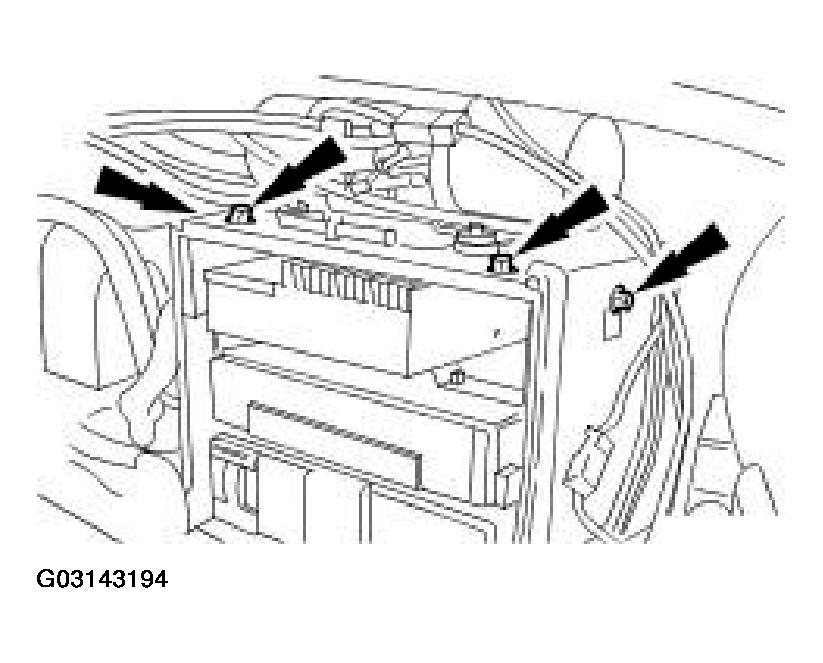

    Fig 3: Installing Module Stack Securing Bolts
    G03143194
  5. Connect amplifier unit harness connectors (premium audio only).

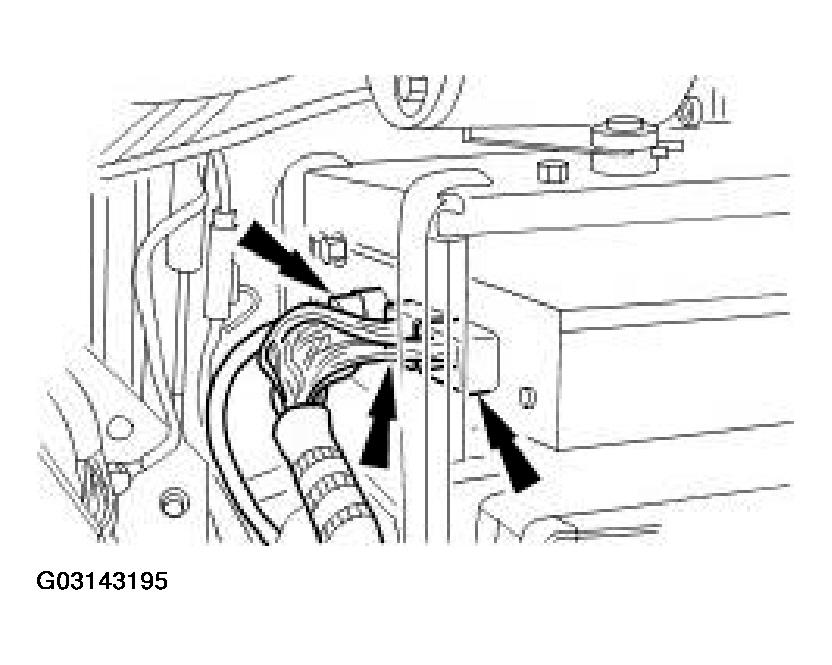

    Fig 4: Connecting Amplifier Unit Harness Connectors
    G03143195
  6. Install trunk RH side liner.
  7. Connect ground cable to battery terminal and install battery cover. Refer to BATTERY CONNECT .
