Automatic Window Control Switch: Installation
- Fit and fully seat switch terminal pins in harness multiplug and fit terminal pin protector.

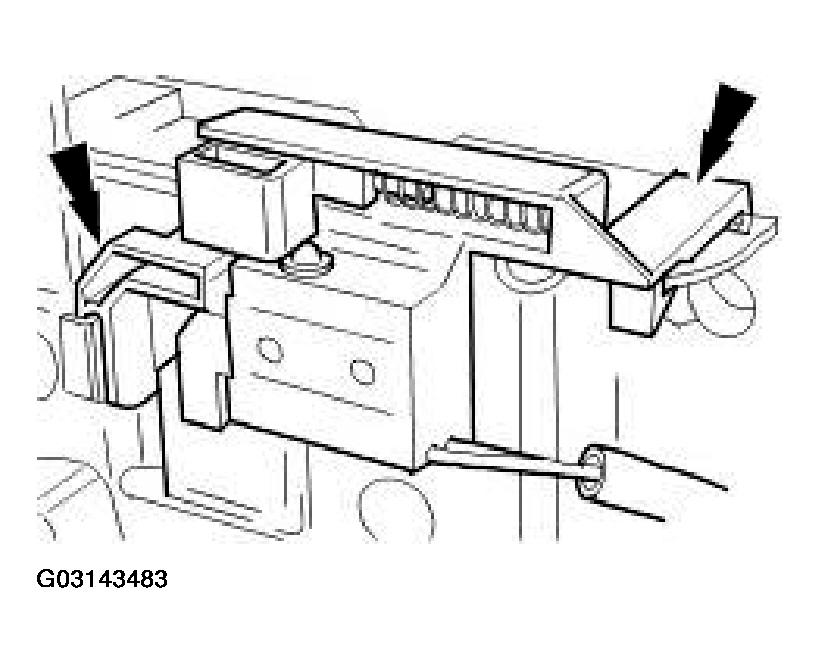

- Fit door glass drop switch to latch assembly, ensuring that both tangs are fully seated.
- Secure switch harness with suitable tape.
- Fit cover to latch assembly.

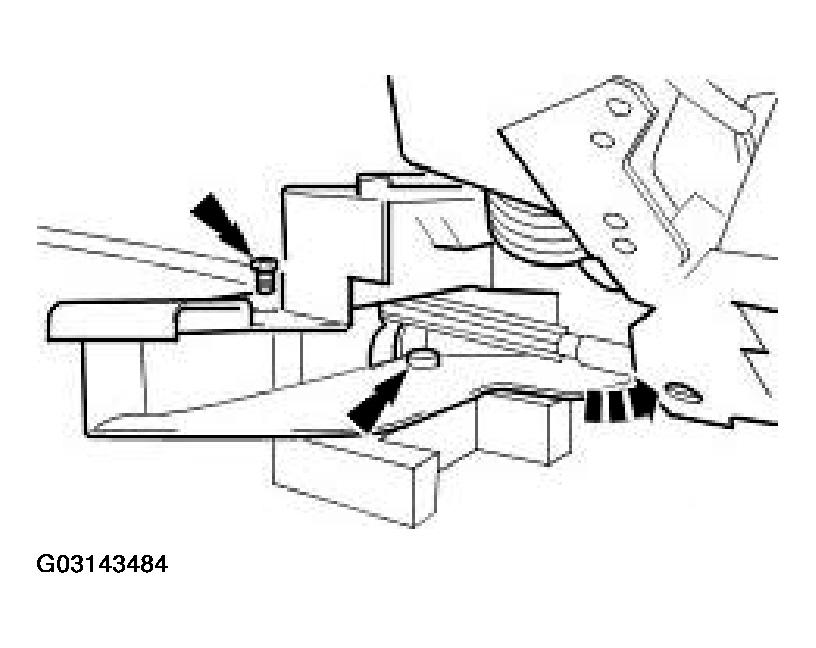

- Position cover over latch assembly, ensuring that internal boss locates correctly in latch housing.
- Fit and tighten cover securing screw.
- Fit latch assembly to door. Refer to DOOR LATCH ASSEMBLY .
- Connect ground cable to battery terminal and fit battery cover. Refer to BATTERY CONNECT .
