Circuit Protection Devices

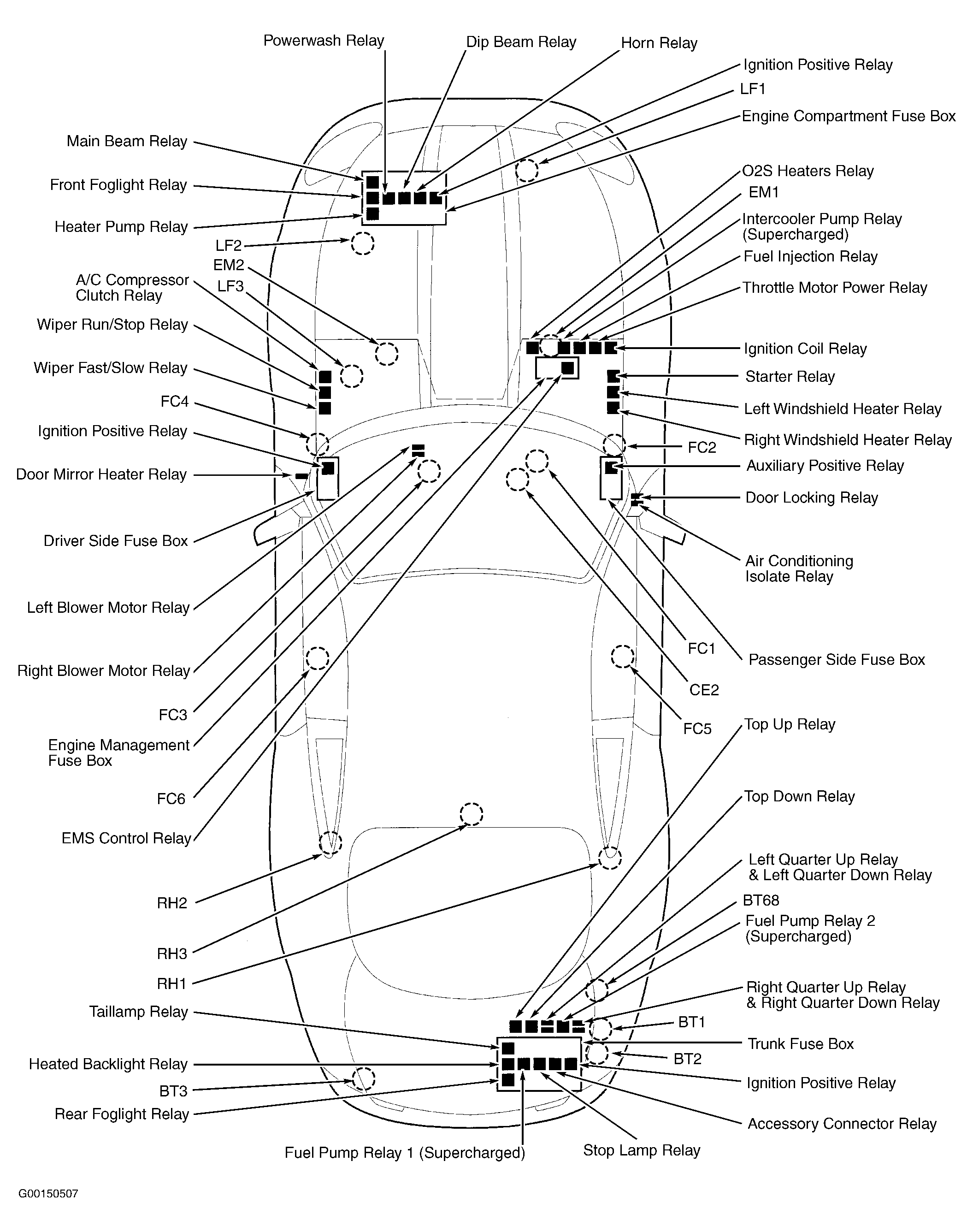

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| Control Module Enclosure | At rear of engine compartment. |
| Driver Side Fuse Box | Behind left side of dash. See Figure . |
| Engine Compartment Fuse Box | At left front of engine compartment. See Figure . |
| Engine Management Fuse Box | At right rear of engine compartment, in control module enclosure. See Figure . |
| Passenger Side Fuse Box | Behind right side of dash. See Figure . |
| Trunk Fuse Box | At right side of trunk. See Figure . |
