Navigation System Display Module: Installation

  1. Position panel at fascia and connect harness connectors.

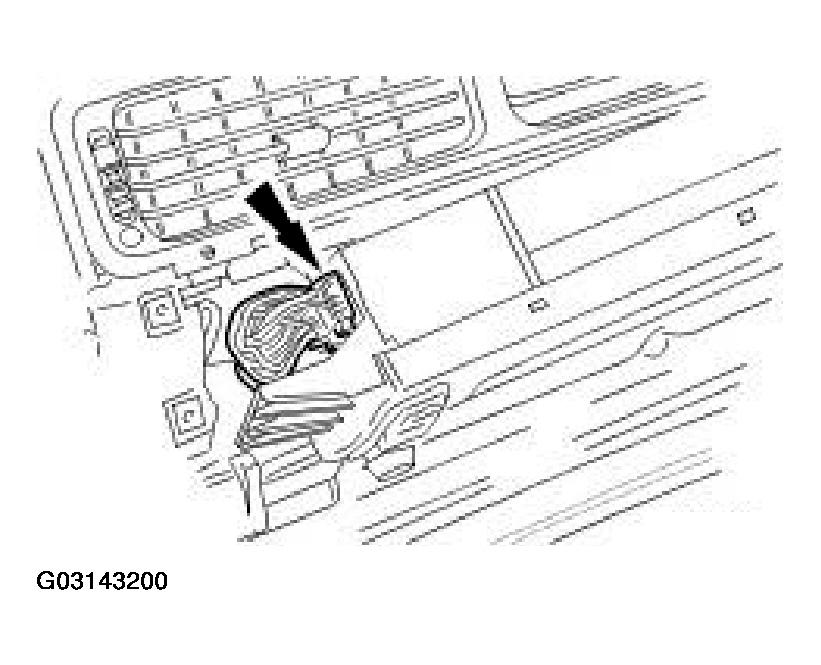

    Fig 1: Connecting Display And Control Panel Connectors
    G03143200
  2. Fully seat panel in fascia and install screws.

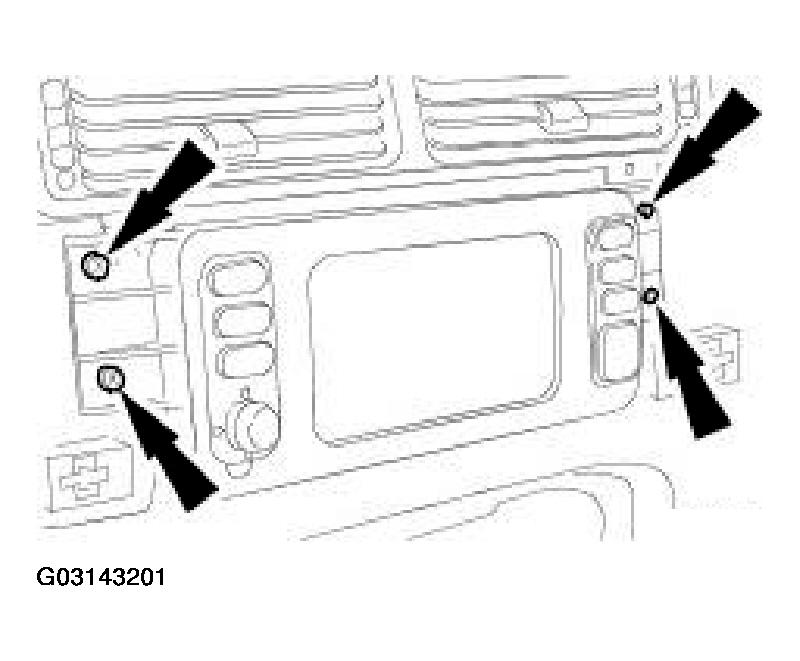

    Fig 2: Installing Display And Control Panel Securing Screws
    G03143201
  3. Position and fully seat veneer panel ensuring all securing clips are engaged.

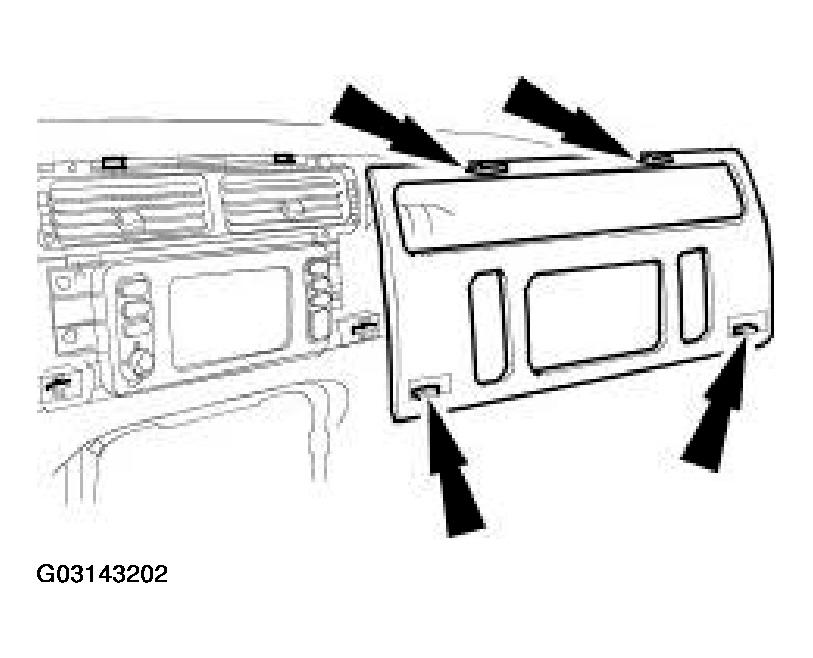

    Fig 3: Installing Veneer Panel
    G03143202
  4. Remove protective tape from adjacent veneers.
  5. Connect ground cable to battery terminal and install battery cover. Refer to BATTERY CONNECT .
