Steering Control Module
›
Control Module Connections
Control Module Connections

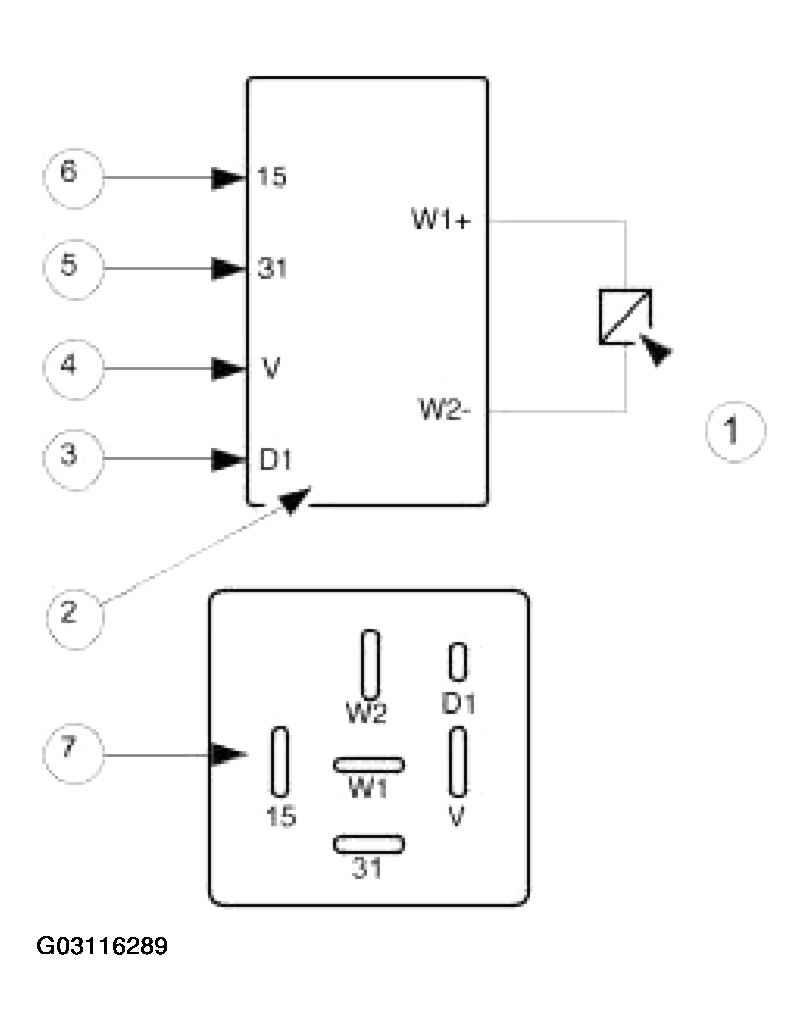

CONTROL MODULE CONNECTIONS DESCRIPTION
Item
Description
1
Servotronic valve
2
Steering control module
3
Not used
4
Vehicle speed input
5
Ground
6
Ignition supply +12V
7
Base of steering control module
