Front Power Distribution Box Location

The front power distribution fuse box is located in the right front of the engine compartment. See Fig 1 . For front power distribution box fuse identification, see Fig 2 . For front power distribution box relay identification, see Fig 3 .

Fig 1: Identifying Front Power Distribution Box Location

Courtesy of JAGUAR CARS, INC.

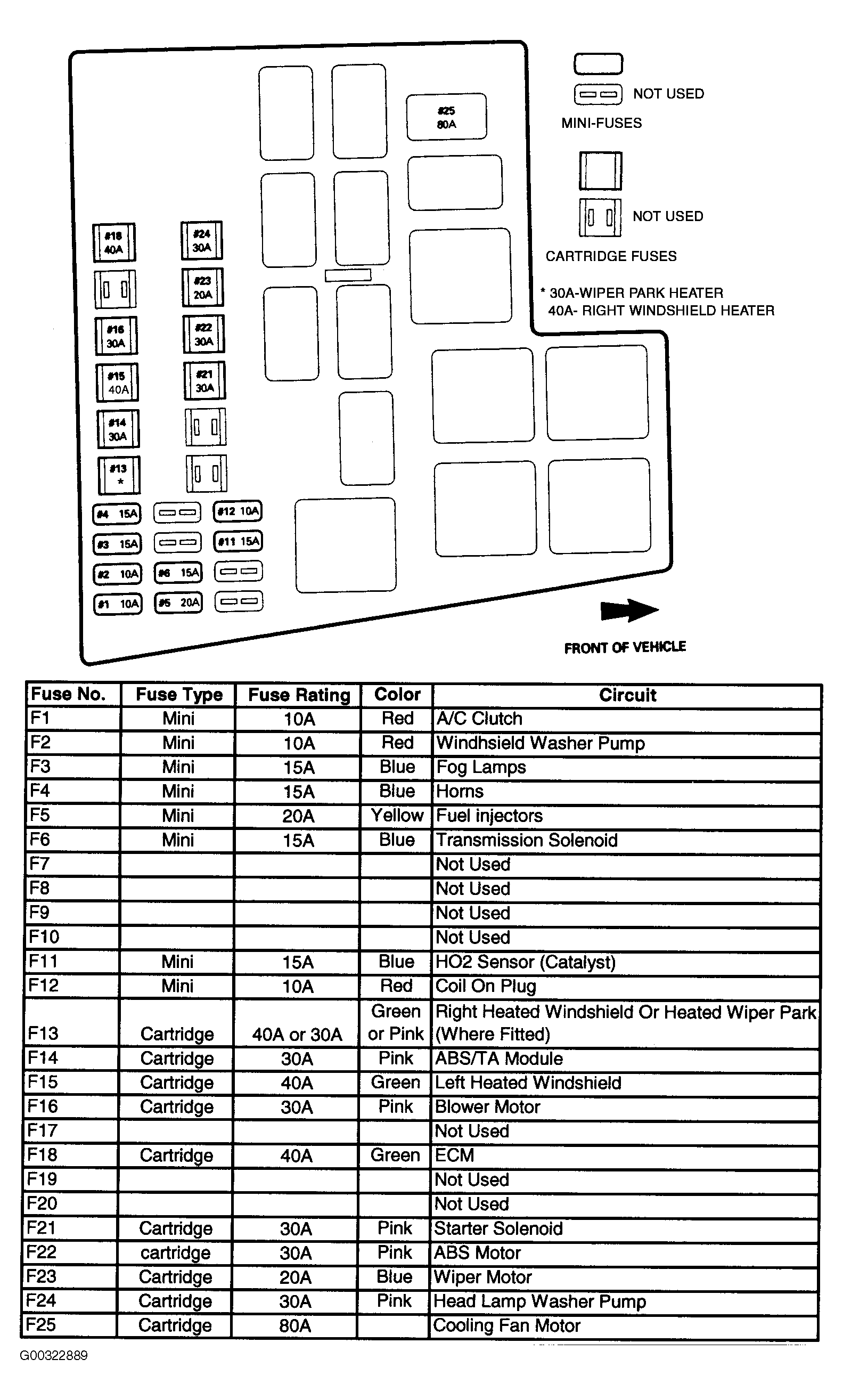

Fig 2: Identifying Fuses - Front Power Distribution Box

Courtesy of JAGUAR CARS, INC.

Fig 3: Identifying Relays - Front Power Distribution

Courtesy of JAGUAR CARS, INC.
