Rear Power Distribution Box

Rear power distribution box is located to the right of the spare tire. See Fig 1 . For rear power distribution box fuse and relay identification, see Fig 2 .

Fig 1: Identifying Rear Power Distribution Box

Courtesy of JAGUAR CARS, INC.

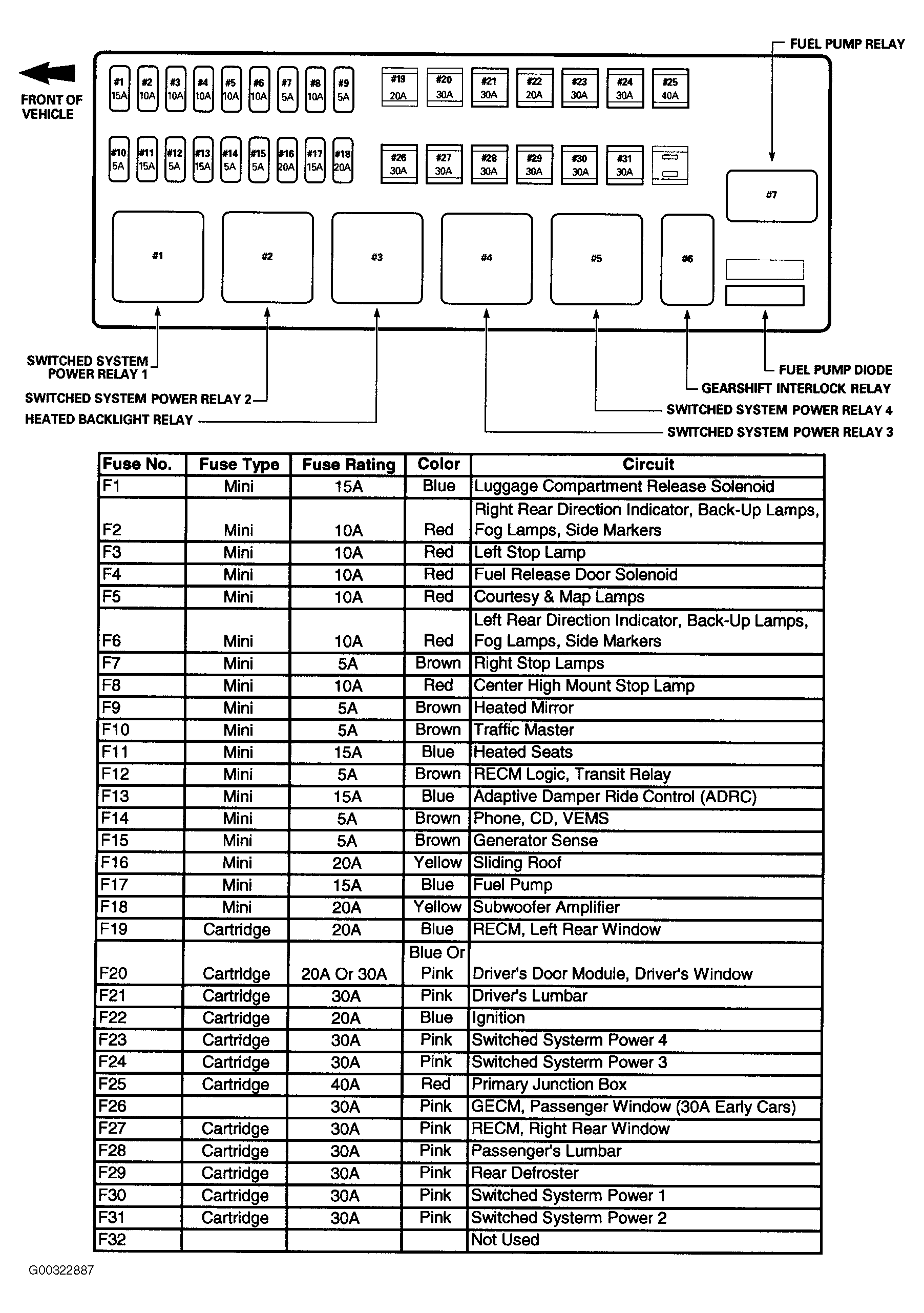

Fig 2: Identifying Fuses & Relays - Rear Power Distribution Box

Courtesy of JAGUAR CARS, INC.
