Transmission Control Module (AJ27 N/A) Connector End View
Transmission Control Module (AJ27 N/A) Connector End View

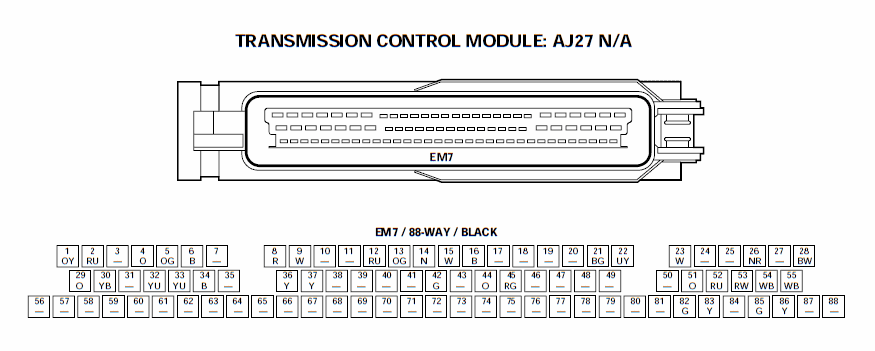

Fig 1: Transmission Control Module (AJ27 N/A) Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
