Driver Seat Control Module (Memory) Connector End View
Driver Seat Control Module (Memory) Connector End View

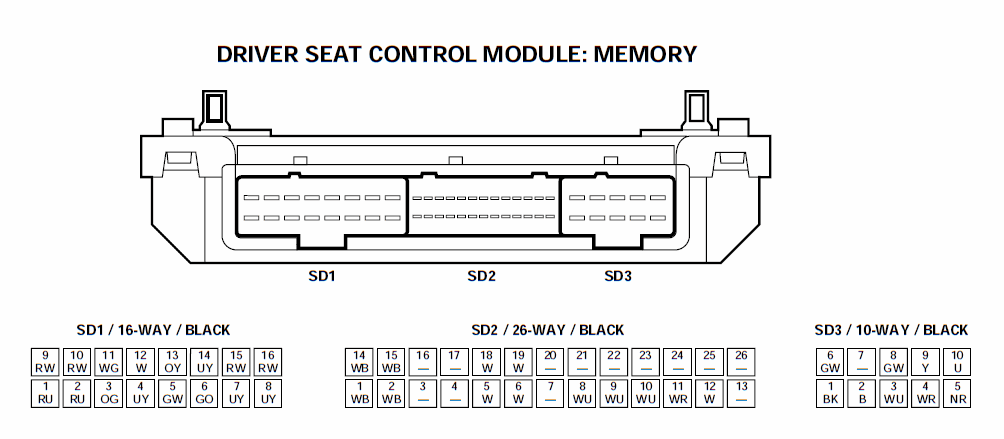

Fig 1: Driver Seat Control Module (Memory) Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
