Electronic Pressure Control (EPC) Solenoid: Removal

Remove the battery cover and disconnect battery ground cable.
Raise the vehicle on a suitable lift.
- Carefully remove the drain plug and drain the transmission fluid. See Figure.
Remove the twenty-two fixings which secure the fluid pan.
- Remove the fluid pan and all traces of gasket material.
Fig 1: Removing & Installing Transmission Oil Pan
Courtesy of JAGUAR CARS, INC.
Disconnect regulator/solenoid connectors. See Figure.
Remove RH rear valve body securing screws.

Fig 2: Removing & Installing Right Rear Valve Body Securing Screws
Courtesy of JAGUAR CARS, INC.
Remove the nine screws from the pressure regulator/solenoid retaining plate.

Fig 3: Removing & Installing Pressure Regulator/Solenoid Valve Retaining Plate
Courtesy of JAGUAR CARS, INC.
Remove the relevant pressure regulator.

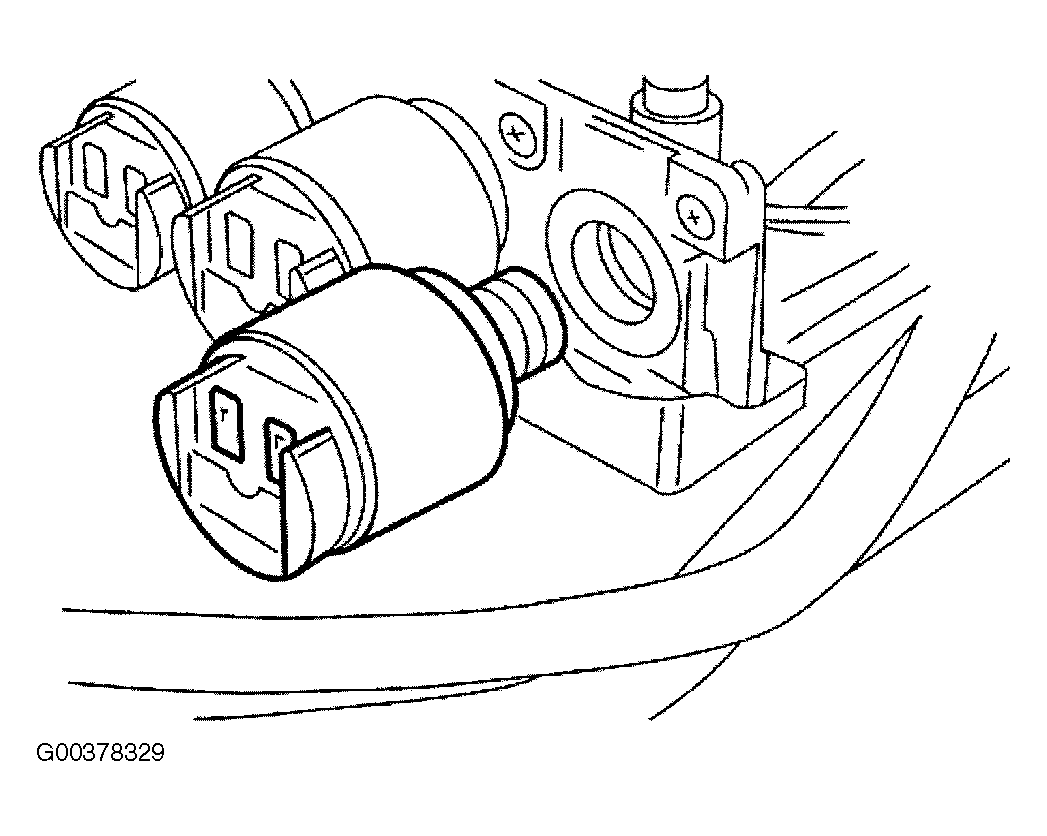

Fig 4: Removing & Installing Pressure Regulator/Solenoid Valves
Courtesy of JAGUAR CARS, INC.
