Extension Housing Seal: Installation
- Install a new housing oil seal.
- Lubricate the oil seal prior to fitting.

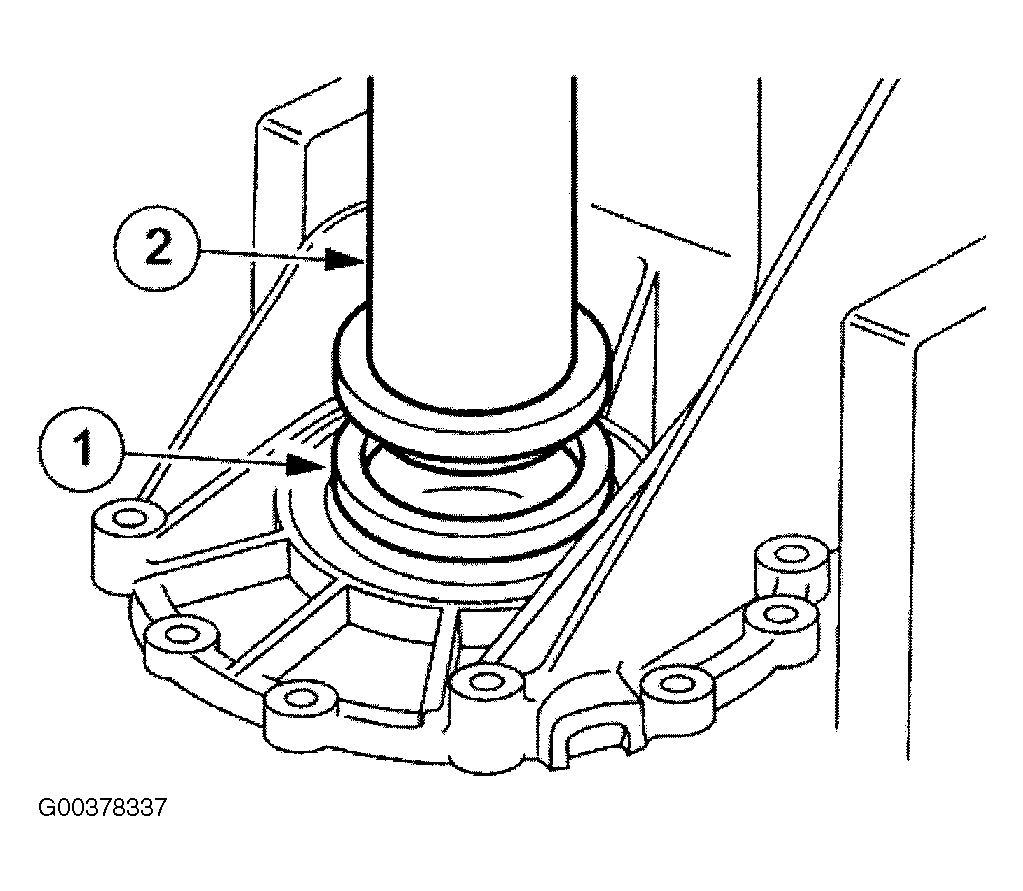

- Using tool 307-358, fit the oil seal.
Courtesy of JAGUAR CARS, INC.
- Fit the drive coupling to the housing.

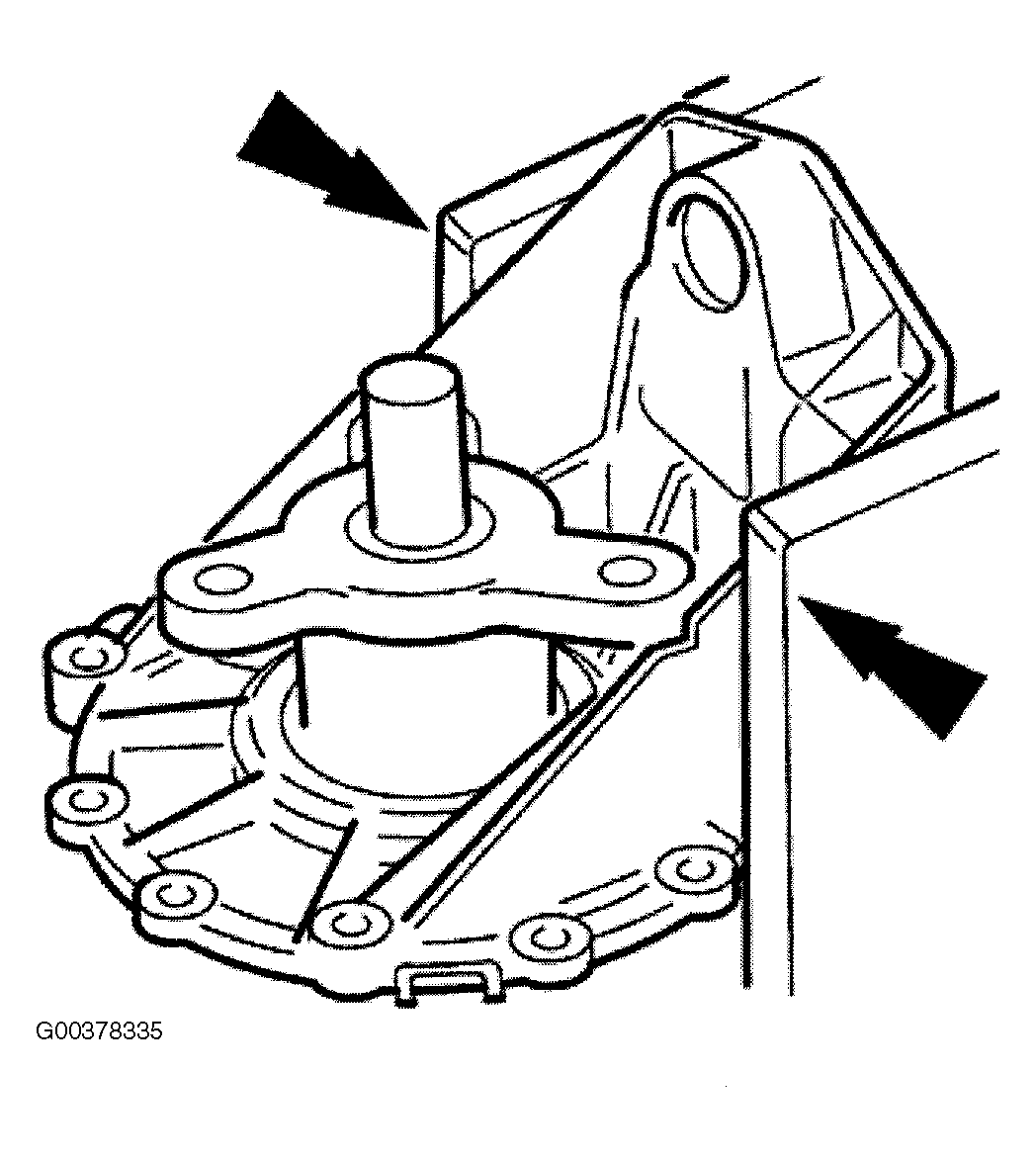

- Hold the housing assembly in a vice with soft jaws fitted and carefully insert the coupling. See Figure.
- Fit tool 205-053 to the coupling.

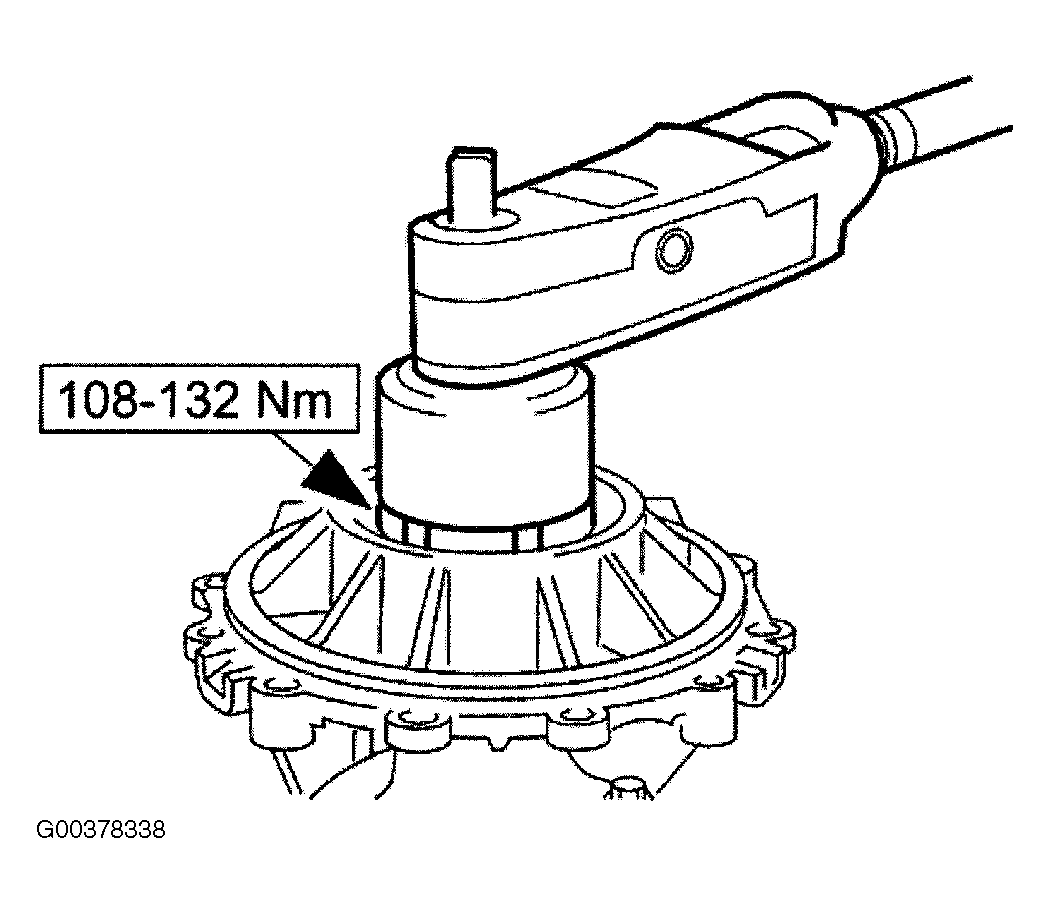

- Use tool 307-356 to tighten the coupling nut to the specified torque figure.
Courtesy of JAGUAR CARS, INC.

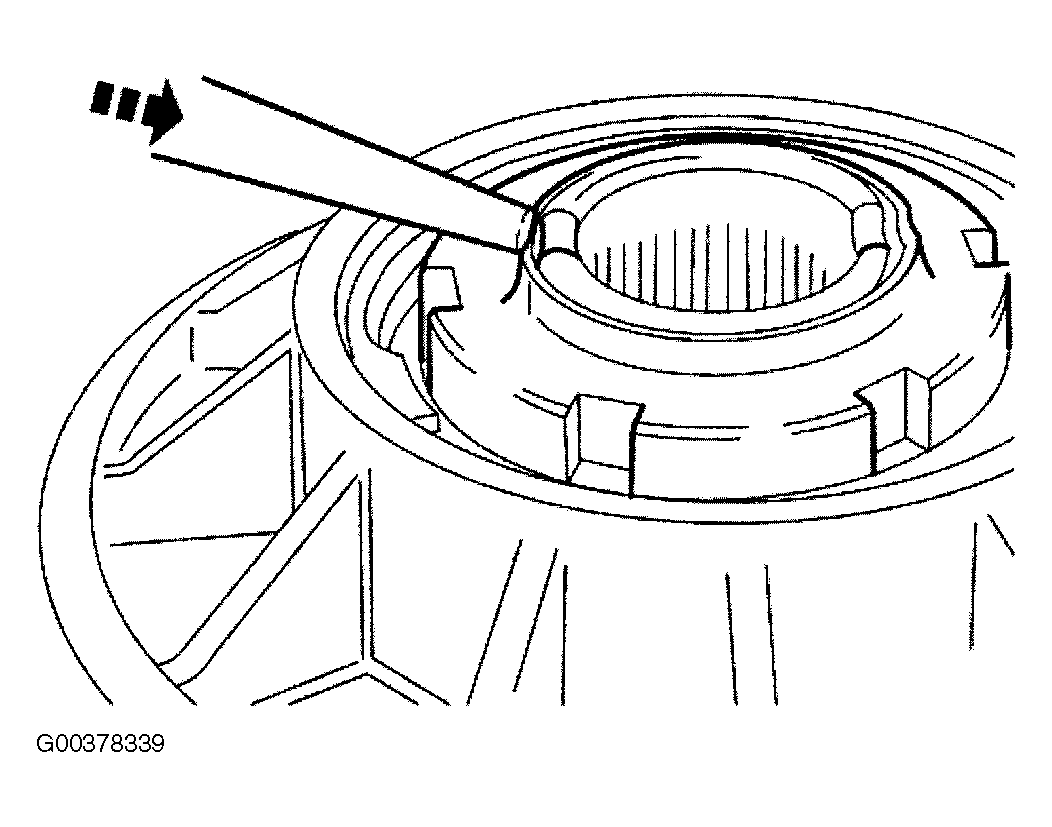

- Stake the coupling nut at two positions.
Courtesy of JAGUAR CARS, INC.
- Refit the rear extension housing. Refer to EXTENSION HOUSING "O" RING SEAL .
- Check the transmission fluid level. Refer to TRANSMISSION FLUID FILLING .
