Engine Compartment Relay & Fuse Box

To remove the engine compartment relay and fuse box lid, press the retaining tabs while lifting. See Fig 1. When reinstalling the engine compartment relay and fuse box lid, reposition the lid and press in the area of the retaining tabs, ensuring that the retaining tabs fully engage. For engine compartment relay and fuse box fuse identification, see Fig 2.

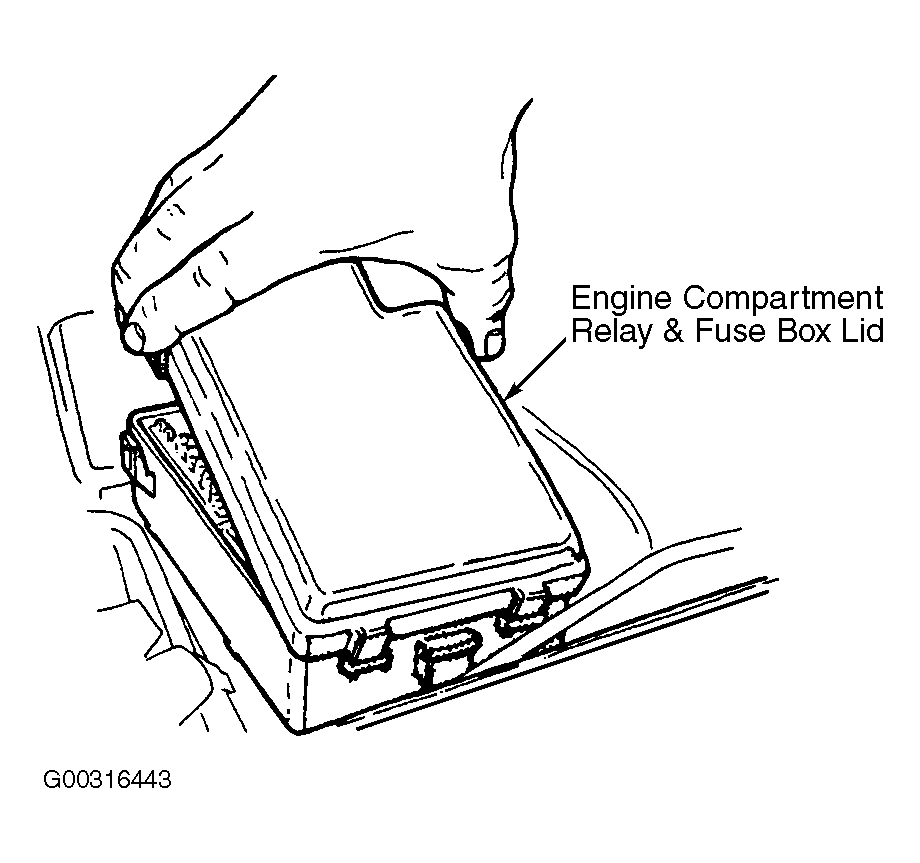

Fig 1: Removing & Installing Engine Compartment Relay & Fuse Box Lid

Courtesy of JAGUAR CARS, INC.

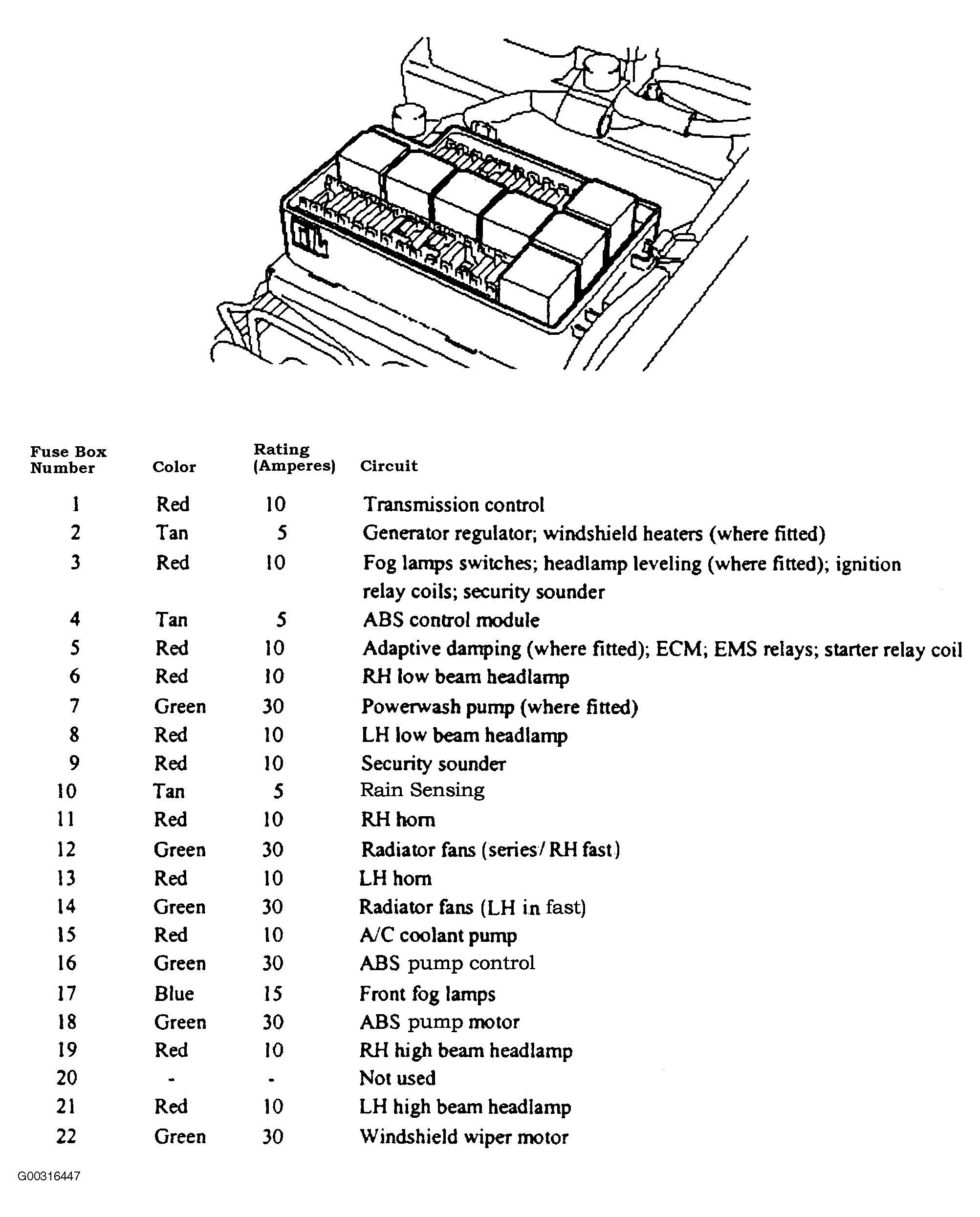

Fig 2: Identifying Fuses - Engine Compartment Relay & Fuse Box

Courtesy of JAGUAR CARS, INC.
