Rain Sensor Module: Removal

WARNING: This page is about a different car, the 2002 Jaguar XKR and 2002 Jaguar XK8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
- Refer to BATTERY DISCONNECTION PROCEDURE .
Remove glove box for access. Refer to GLOVE COMPARTMENT .
Remove two bolts securing module to passenger side dash panel.

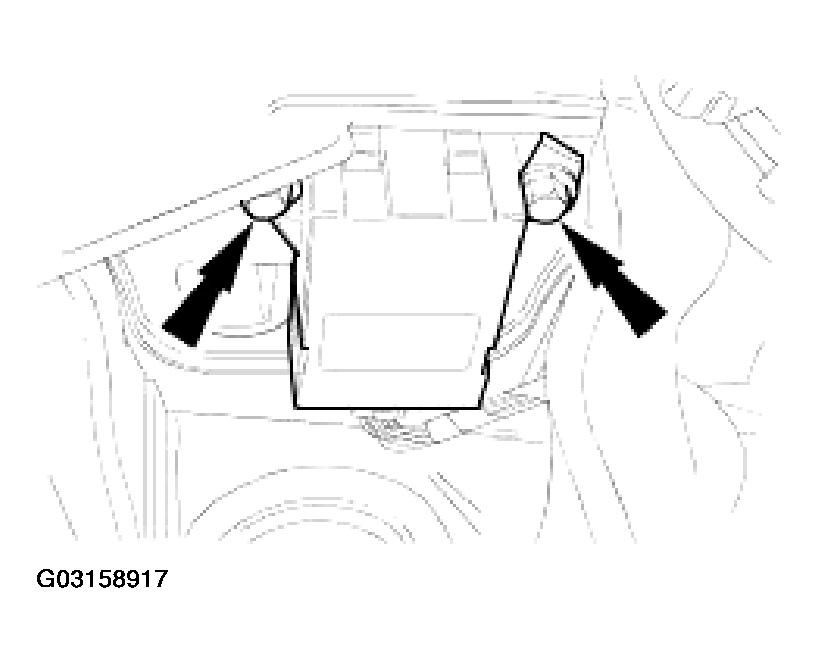

Fig 1: Removing Bolts Securing Module To Passenger Side Dash Panel
Courtesy of JAGUAR CARS, INC.
Disconnect harness connector from module and remove module from vehicle.

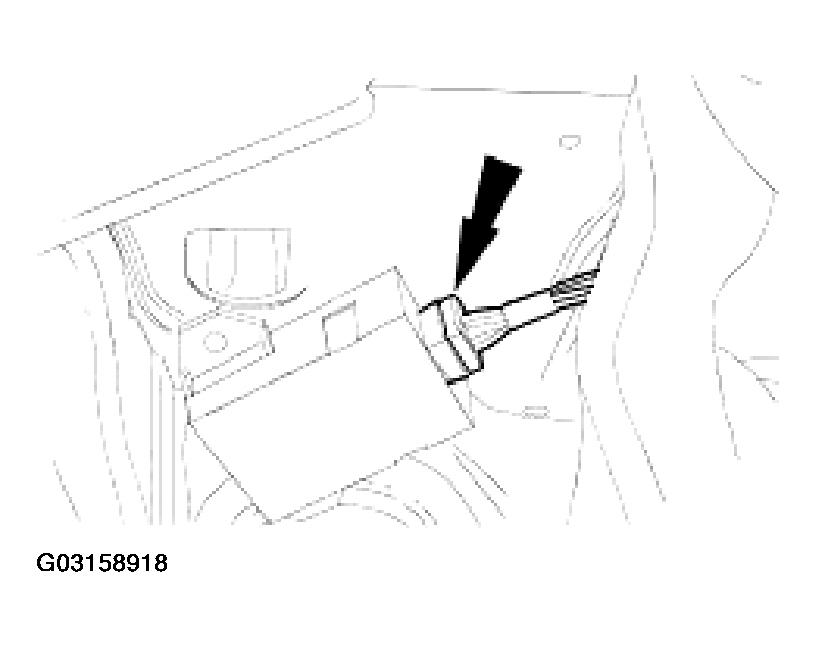

Fig 2: Removing Module From Vehicle
Courtesy of JAGUAR CARS, INC.
