Motor Synchronization

WARNING: This page is about a different car, the 2001 Jaguar XJR and 2001 Jaguar XJ8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove sliding roof trim panel for access. Refer to ROOF OPENING PANEL SHIELD  .
  2. Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE .
  3. Remove roof console for access. Refer to OVERHEAD CONSOLE .
  4. Remove sliding roof panel control module. Refer to ROOF OPENING PANEL MODULE  .
  5. Using a drive key or screwdriver in the motor gearbox slot, manually move the sliding roof towards the closed position.

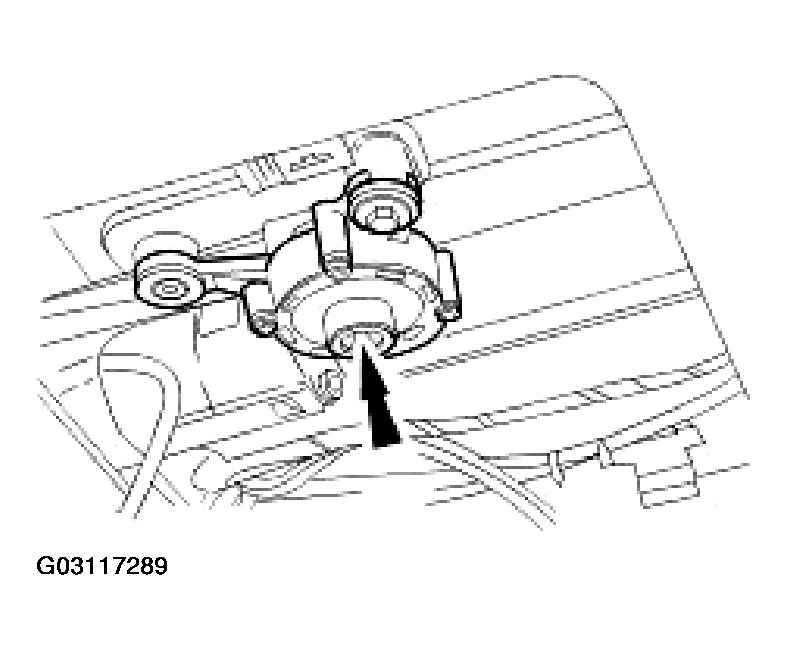

    Fig 1: Moving Sliding Roof Towards Closed Position
    G03117289
  6. Position the sliding roof with an 8mm gap between the driven lever and the guide rail step.

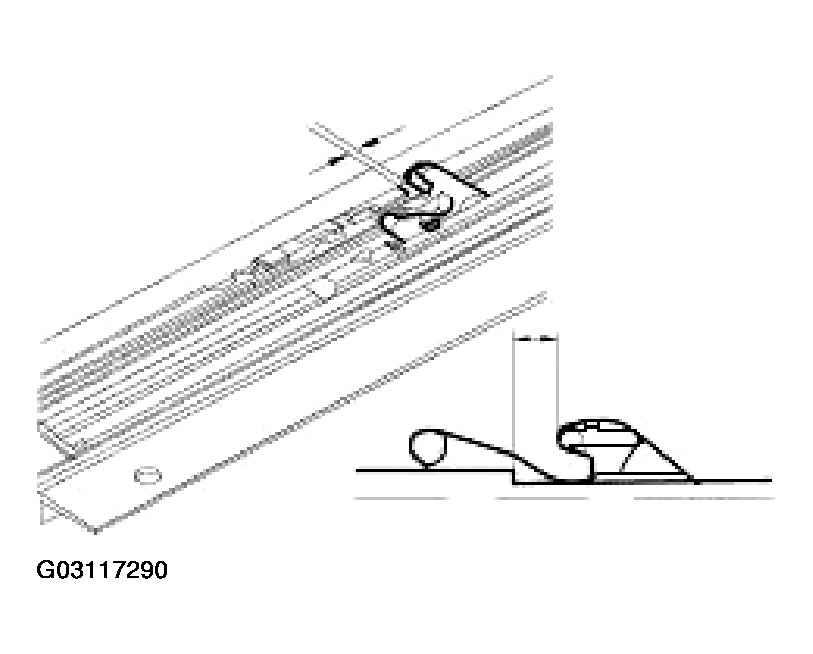

    Fig 2: Identifying Gap Between Driven Lever And Guide Rail Step
    G03117290
  7. Index control module gears.
    1. Viewing gears through aperture in control module, rotate adjuster wheel until white indexing marks on gears are aligned.

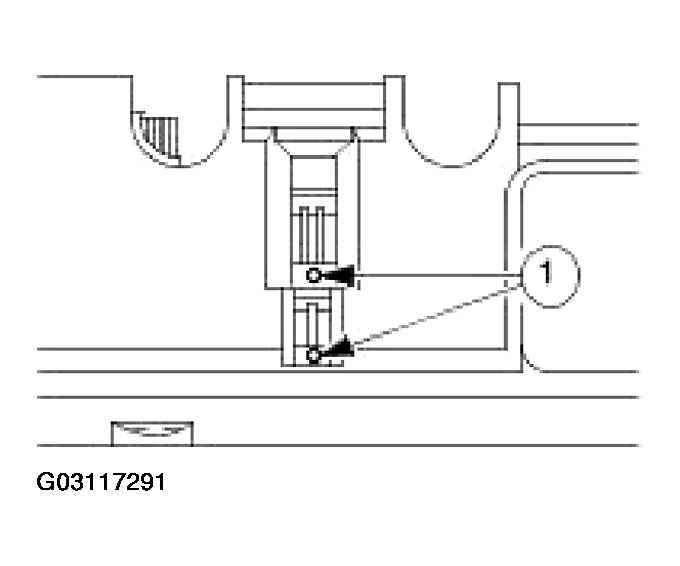

    Fig 3: Indexing Control Module Gears
    G03117291
  8. Fit control module to sliding roof frame. Refer to ROOF OPENING PANEL MODULE  .
  9. Using a drive key or screwdriver in the motor gearbox slot, manually rotate the spindle 1/4 turn counter-clockwise to re-engage the motor drive.
  10. Fit roof console. Refer to OVERHEAD CONSOLE .
  11. Connect ground cable to battery terminal and fit battery cover. Refer to BATTERY CONNECT .
  12. Check for satisfactory operation of sliding roof panel by fully opening and closing.
