Timing Cover

WARNING: This page is about a different car, the 2002 Jaguar XKR and 2002 Jaguar XK8. However, it is still accessible from the selected car via links, so may be relevant.

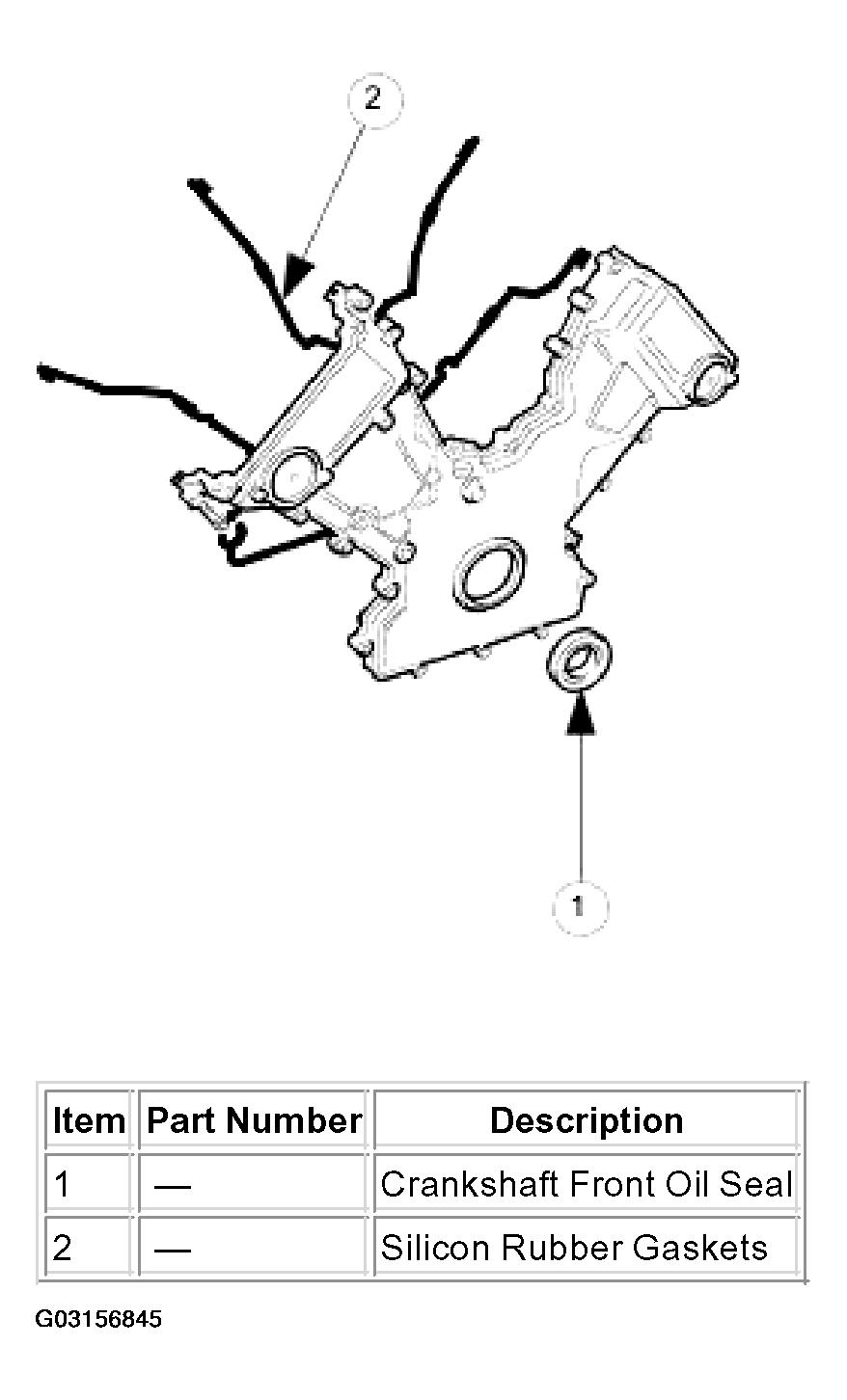

Fig 1: Identifying Timing Cover Components

Courtesy of JAGUAR CARS, INC.

The aluminum-alloy timing cover accommodates the crankshaft front oil seal. Silicon rubber in-groove gaskets seal the joint between the timing cover and the front face of the engine.
