Oil Pump: Installation

WARNING: This page is about a different car, the 2002 Jaguar XKR and 2002 Jaguar XK8. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Install a new oil pump gasket.

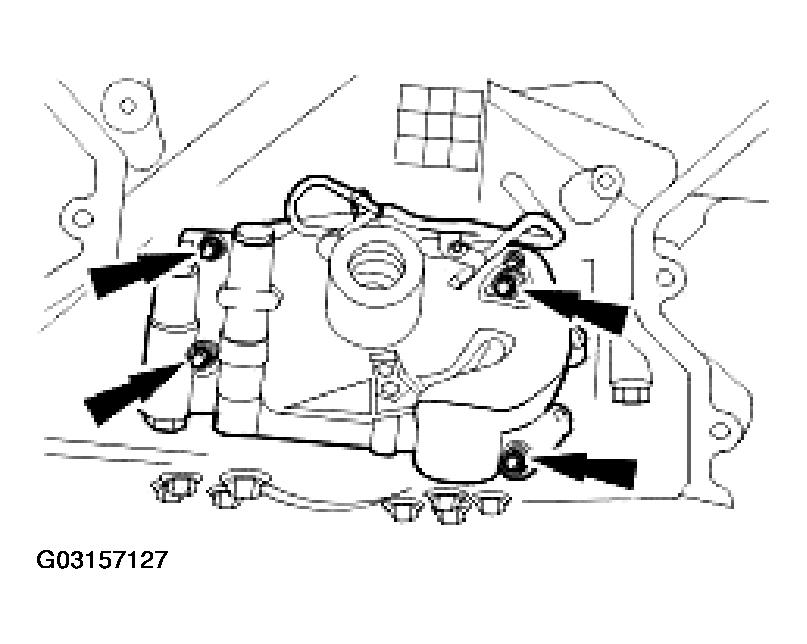

Fig 1: Installing Oil Pump

Courtesy of JAGUAR CARS, INC.

To install, reverse the removal procedure.
- Tighten to 12 Nm.

NOTE: Install a new oil strainer O-ring seal.

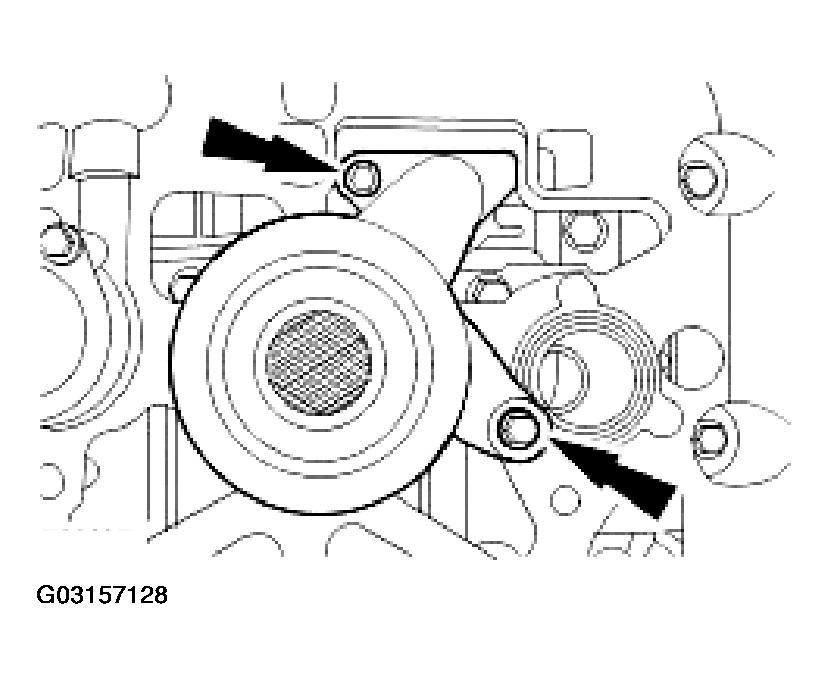

Fig 2: Installing Oil Strainer O-Ring Seal

Courtesy of JAGUAR CARS, INC.

Tighten to 12 Nm.
Tighten to 12 Nm.

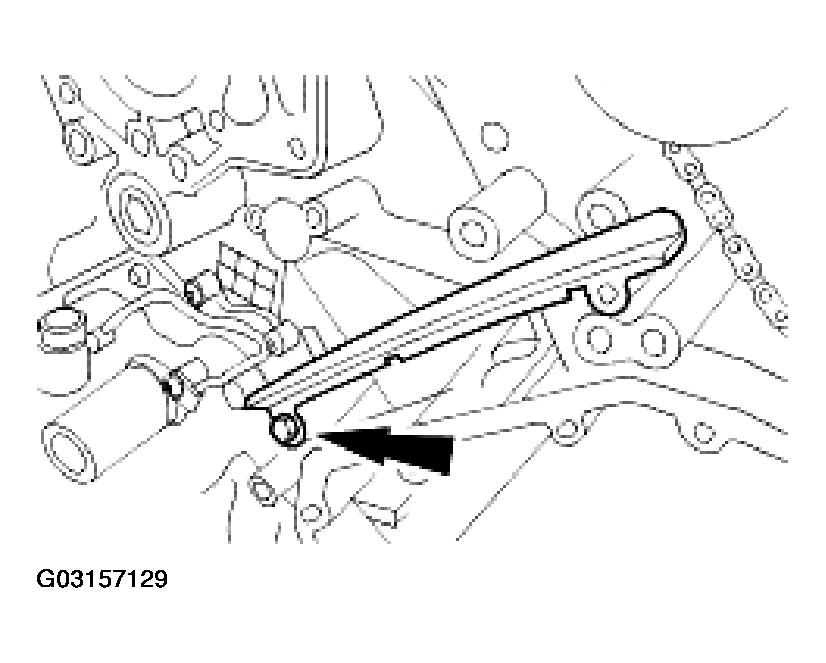

Fig 3: Installing Left-Hand Primary Timing Chain Guide
Courtesy of JAGUAR CARS, INC.
Tighten to 12 Nm.

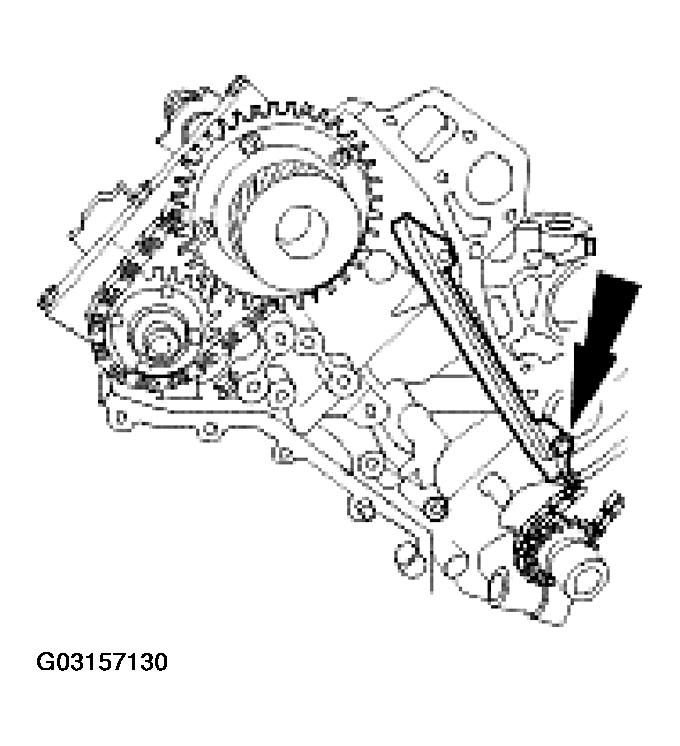

Fig 4: Installing Right-Hand Primary Timing Chain Guide
Courtesy of JAGUAR CARS, INC.
