Major Components: Notes

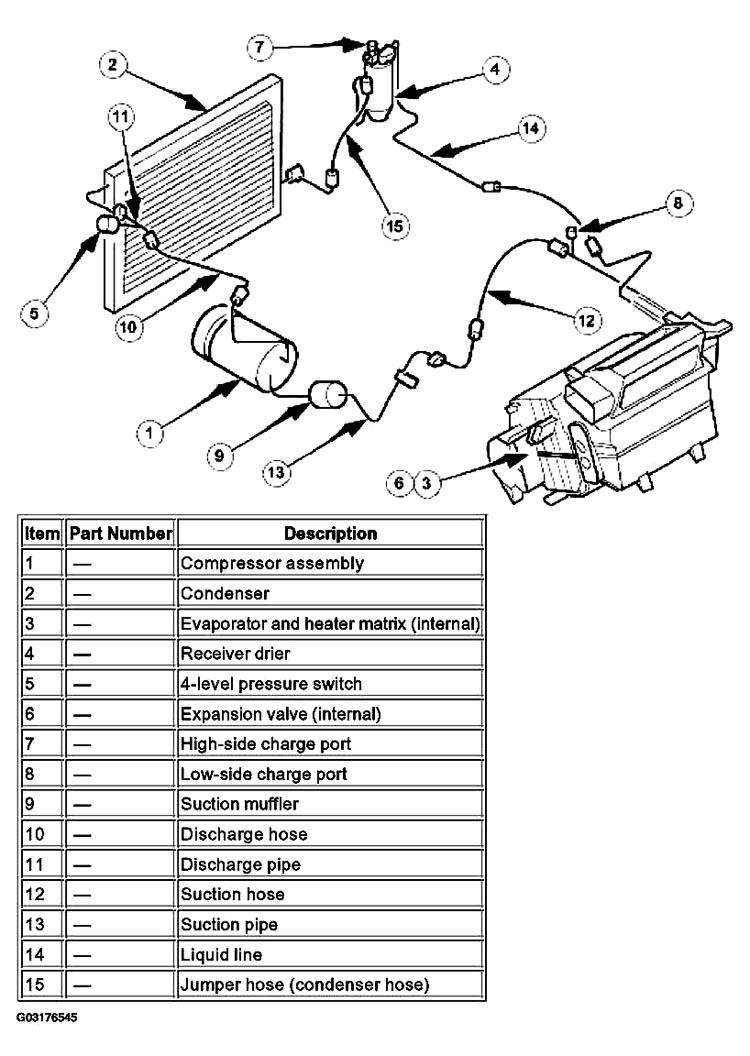

Fig 1: Identifying Air Conditioner System Major Components
G03176545Courtesy of JAGUAR CARS, INC.
