Removal and Installation: Spring: Installation
- Transfer reference marks from old spring to replacement spring.

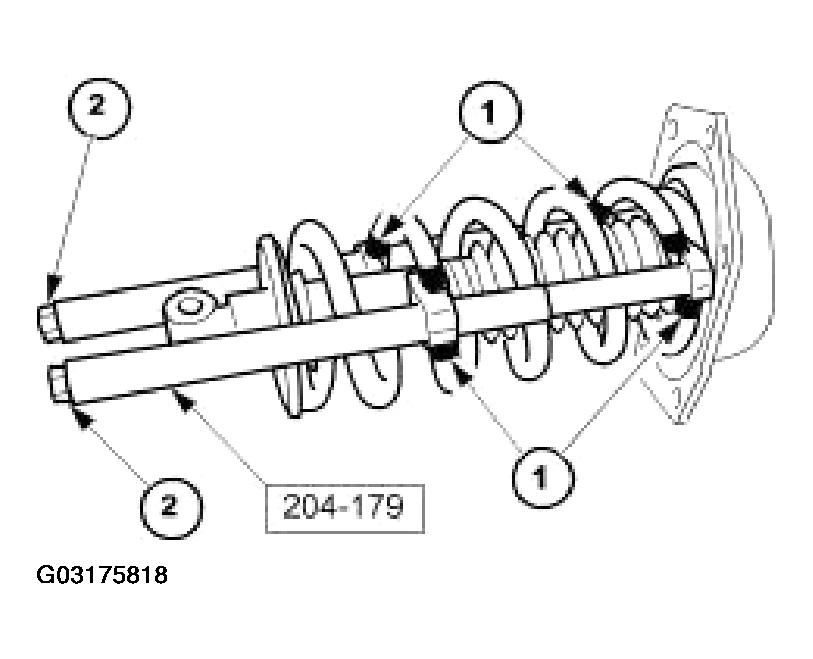

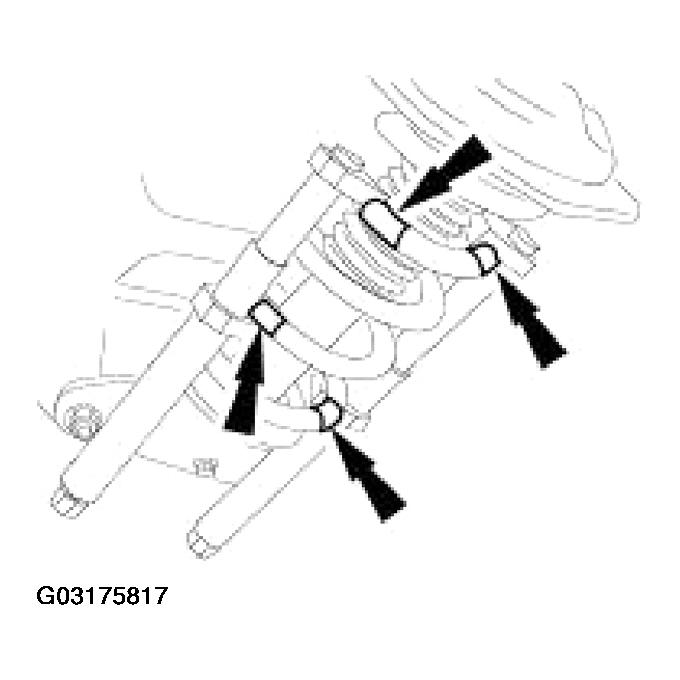

- Using the special tools 204-179 compress the spring.
- Fit and align the arms of the special-tools to the spring reference marks.
- Tighten the special-tool adjustment bolts evenly to compress the spring.

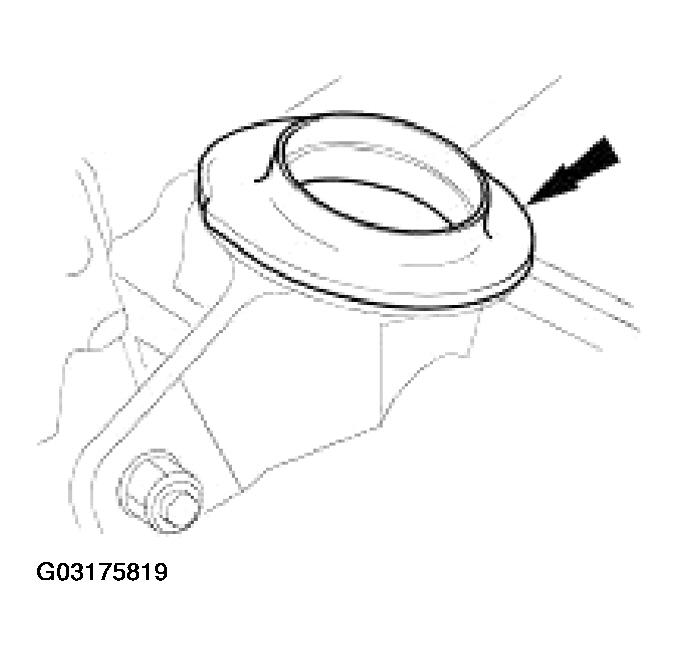

- Install the spring pigtail lower seat on to the wishbone.

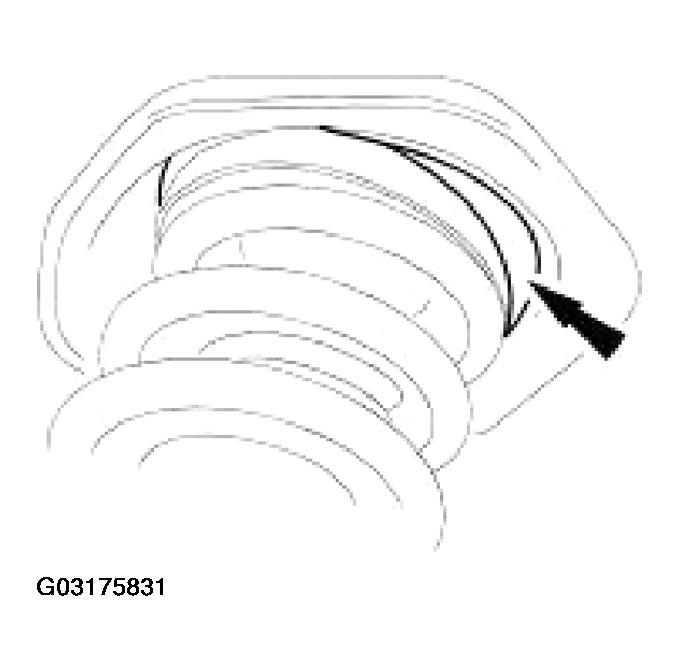

- Install the spring in the upper mounting.

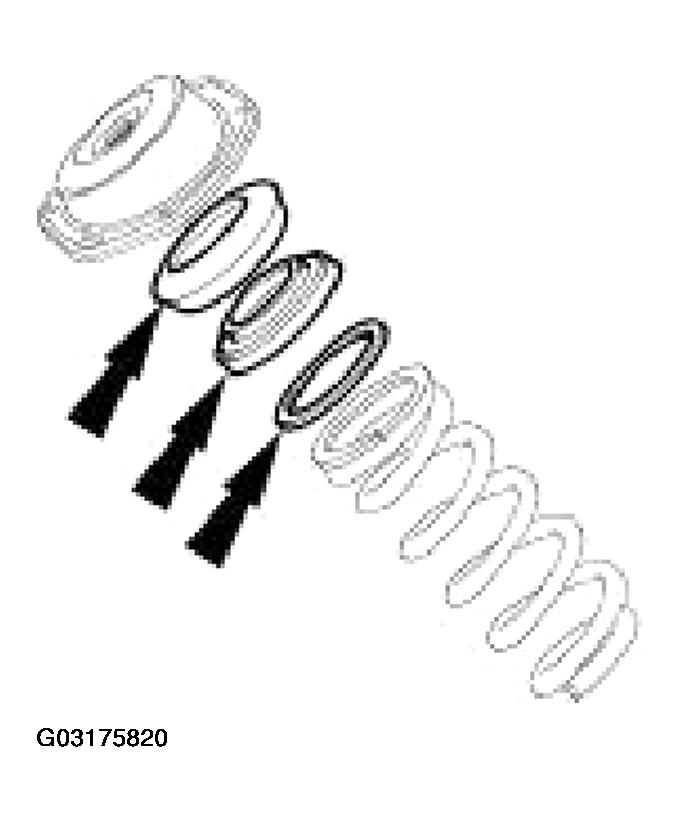

- Install the spring upper isolator.
- Install the upper spring pan.
- Install the packing ring.

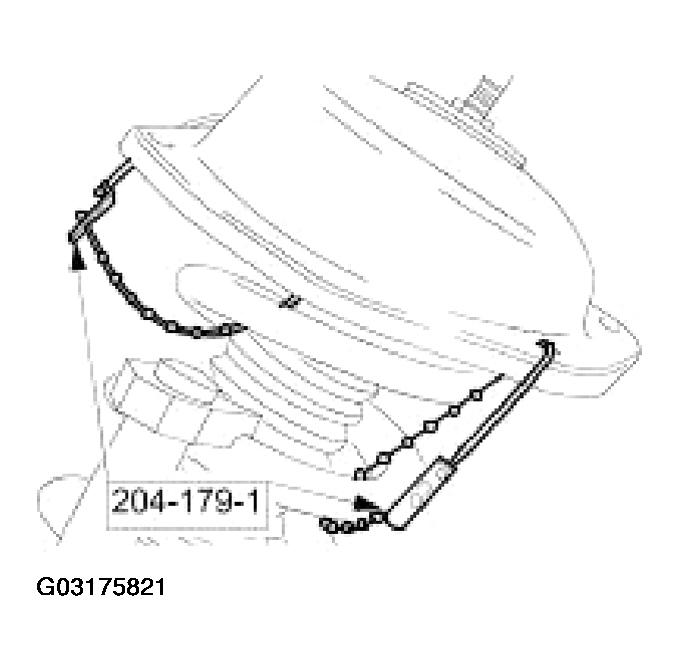

- Ensuring the correct orientation, secure the upper mounting to the spring using the special tools 204-179-1.
- Position the spring upper mounting assembly on to the shock absorber.
- Apply a thin coat of grease to the upper mounting bush.

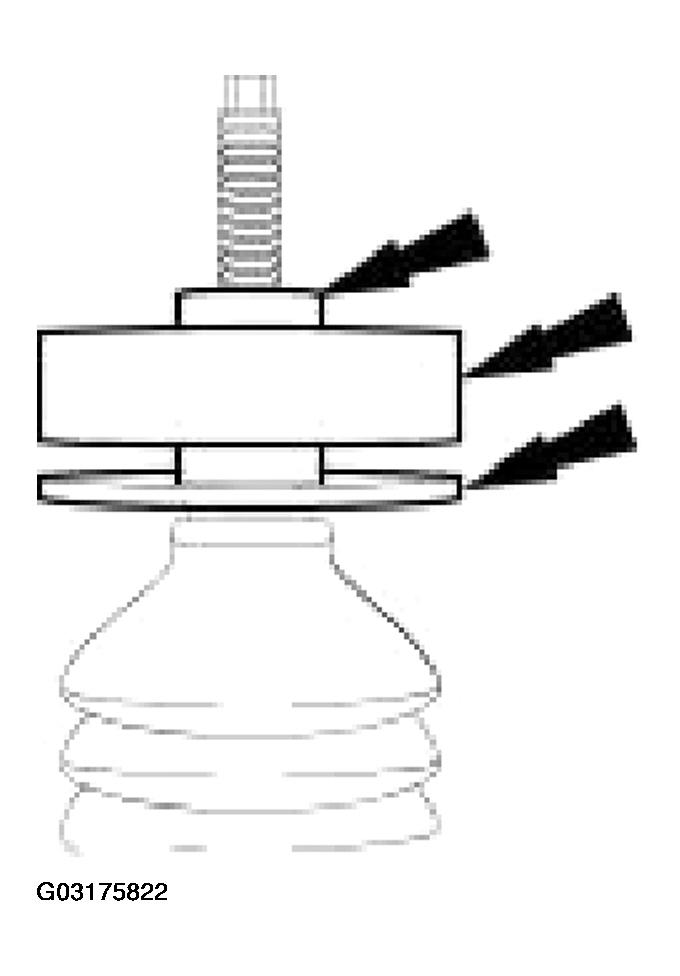

- Ensure that the washer, lower isolator and bush are correctly positioned on the shock absorber shaft.
- Position the shock absorber shaft in the upper mounting.
- Secure the top of the shock absorber to the upper mounting.
- Install the spring upper isolator.
- Install the upper washer.

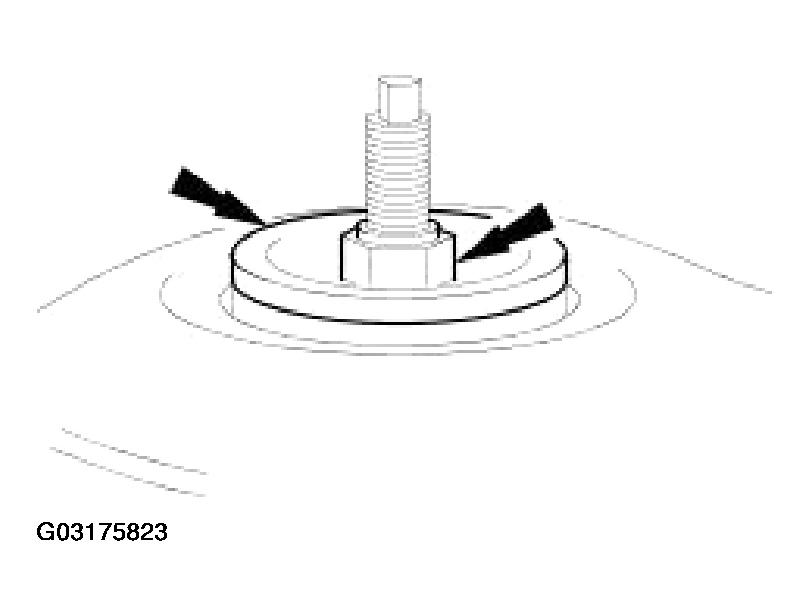

- Install but do not tighten the locknut on to the shock absorber.

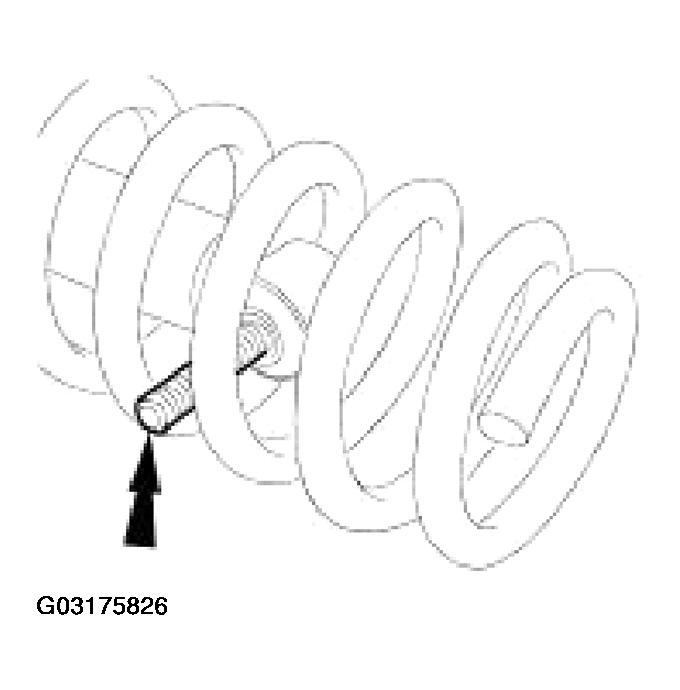

- Manually retract the shock absorber and place a bolt through the spring coils and the shock absorber lower-bush.
- Secure the shock absorber to the upper mounting.

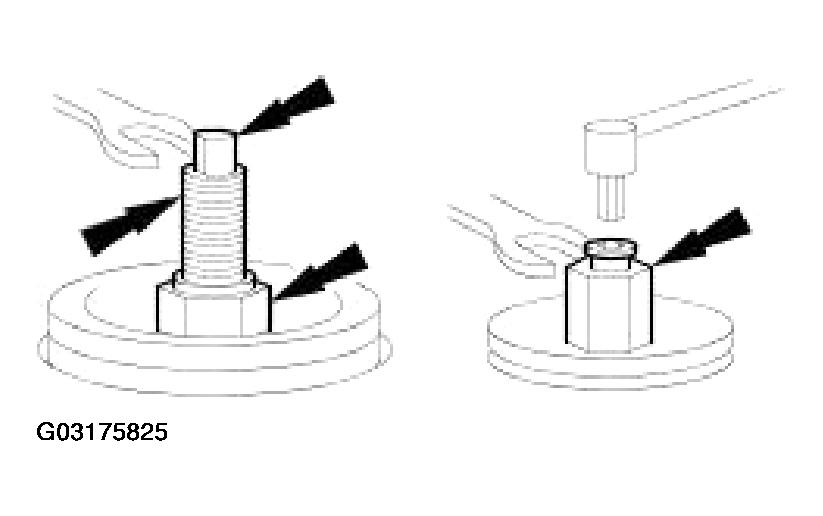

- Position a wrench on the shock absorber shaft flats to prevent rotation (wrench in socket on vehicles with adaptive damping).
- Tighten the shock absorber upper lock nut to 30-40 Nm (16-18 Nm on vehicles with adaptive damping).
- Position the shock absorber and spring assembly to the vehicle.
- With assistance, manually retract the shock absorber and remove the temporary securing bolt.
- Remove the special tools 204-179-1.

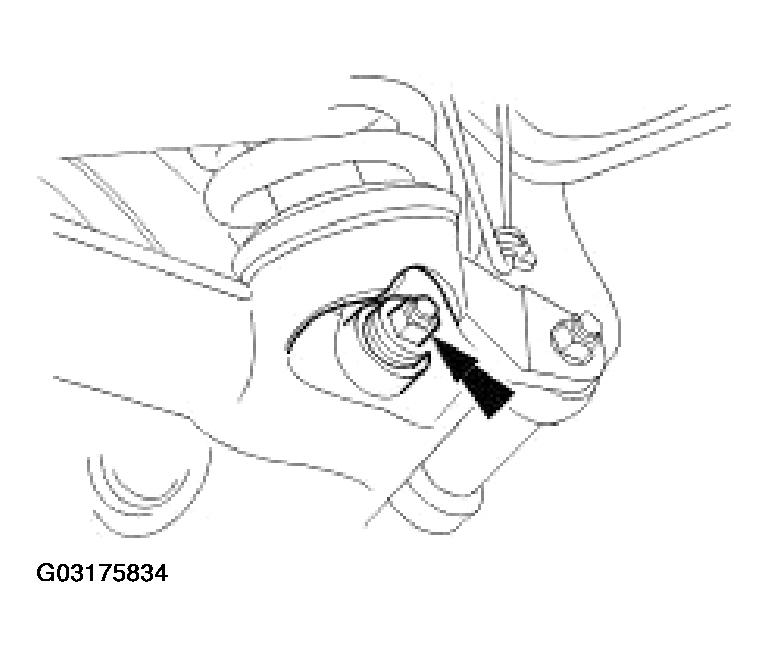

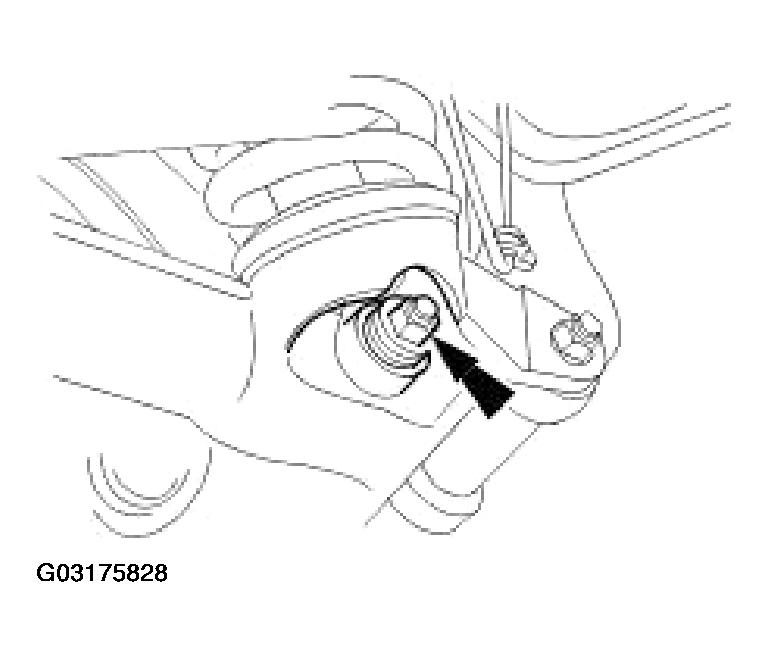

- Align the shock absorber lower bush to the wishbone and install the mounting bolt.
- Install but do not tighten the nut.
- On vehicles with adaptive damping:

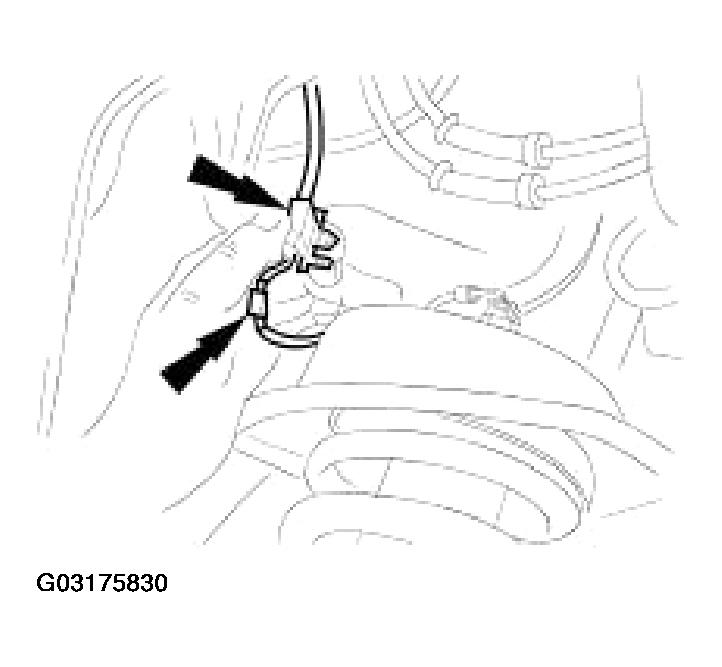

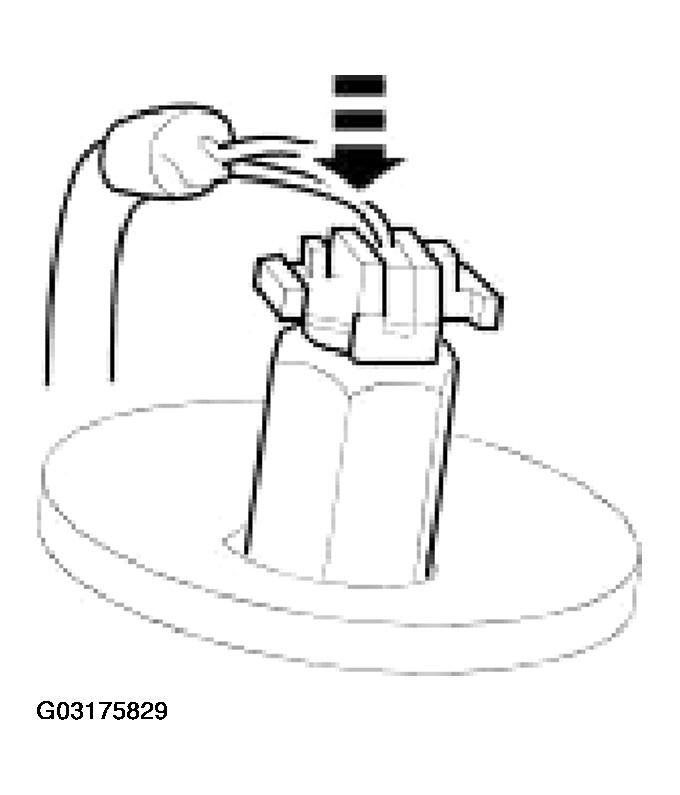

- Connect the shock absorber electrical connector, ensuring the electrical connector key locates in the socket keyway.
- Seat the upper mounting in the body location.
- If adaptive damping is installed, ensure the harness is correctly positioned.
- Ensuring that the spring is seated on the isolator and spring pan, position the upper spring pan on to the body studs.
- Release the spring tension.

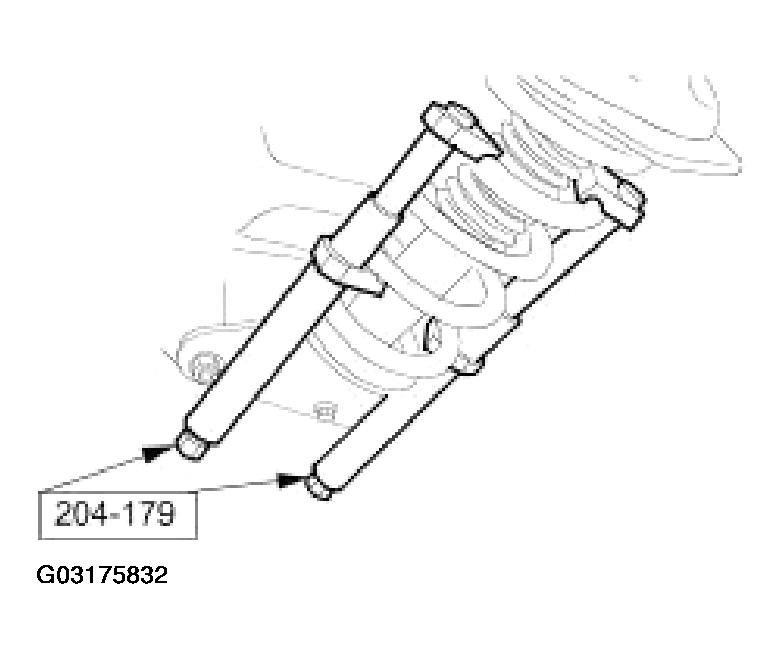

- Ensuring that the spring is correctly located, evenly slacken the adjuster bolts on the special tools 204-179.
- Remove the special tools 204-179.
- Fully seat and secure the upper spring pan to the body.
- Ensure the spring pan is correctly seated in the body location.

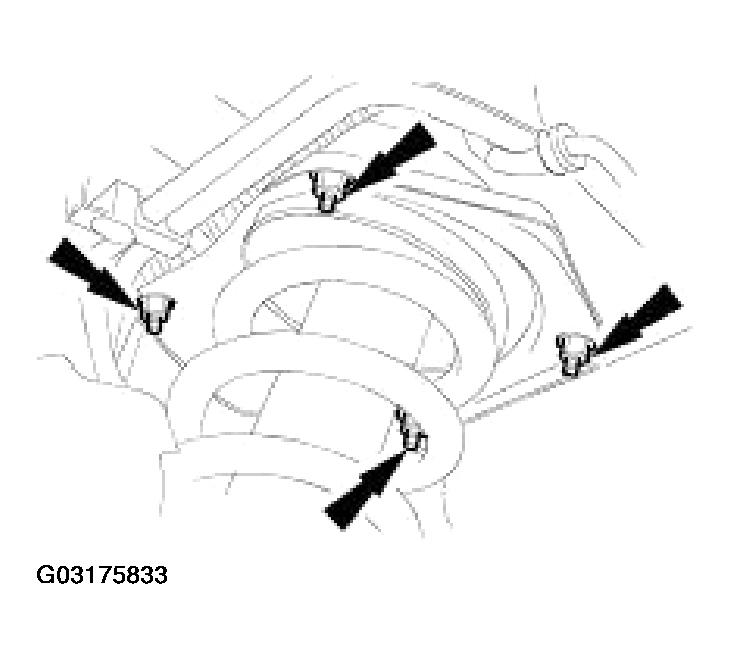

- Install the nuts securing the spring pan to the body studs.
- Tighten to 17-23 Nm.
- Tighten to 80-100 Nm.

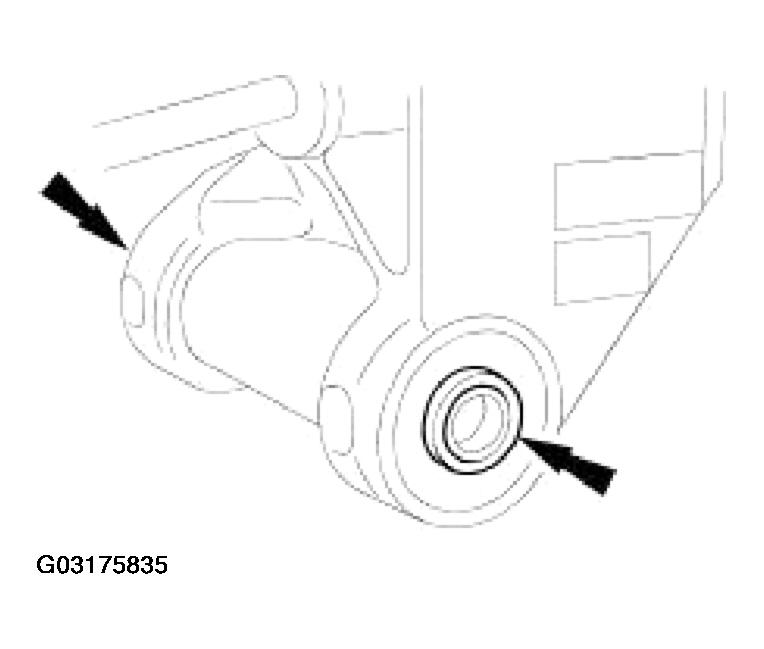

- Install the shims on the pivot pin sleeve in the positions noted during removal.
- Install the hub assembly to the wishbone assembly.
- Position the hub and carrier to the wishbone.
- Install the pivot pin ensuring that the eccentric flange correctly seats in the wishbone groove.

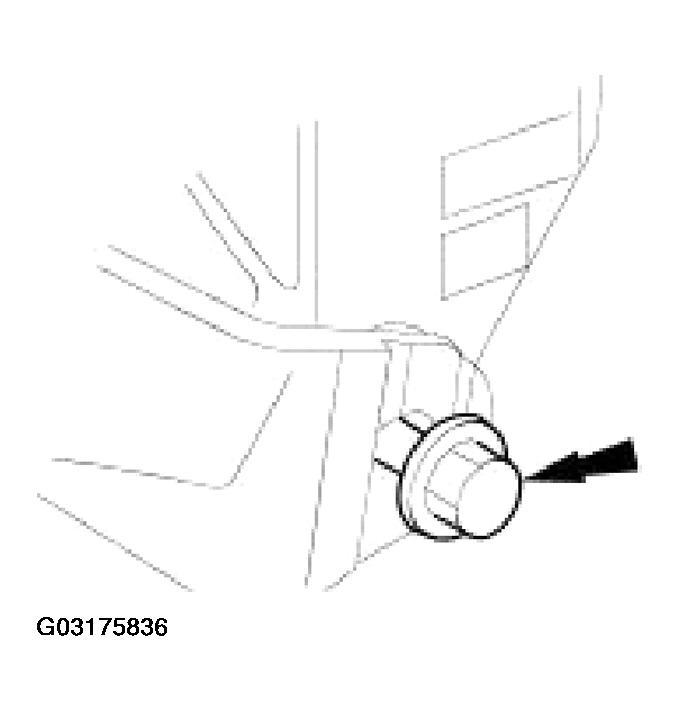

- Install the pivot pin nut.

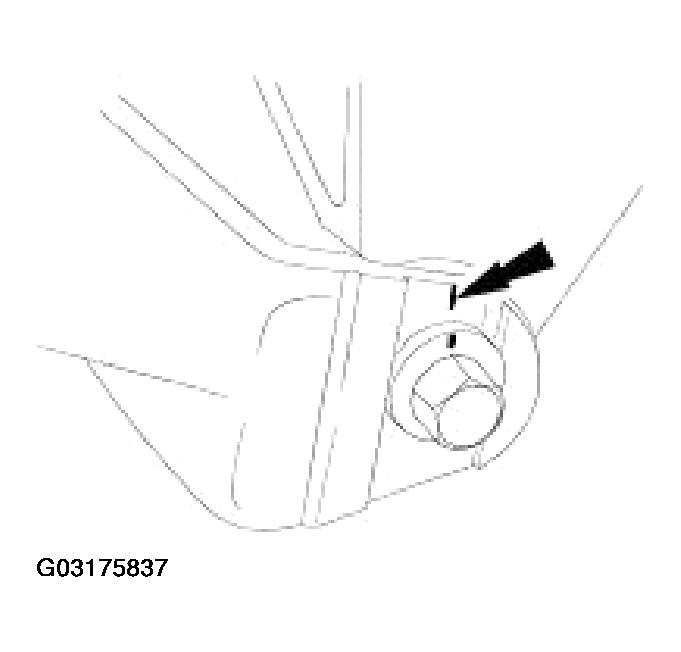

- Align the marker on the pivot pin flange with the mark made on wishbone.
- Install the nut on to the pivot pin and, ensuring the pin position is not disturbed, tighten the nut to 88-118 Nm.
- Release the tie strap securing the brake caliper to the suspension mounting bracket.

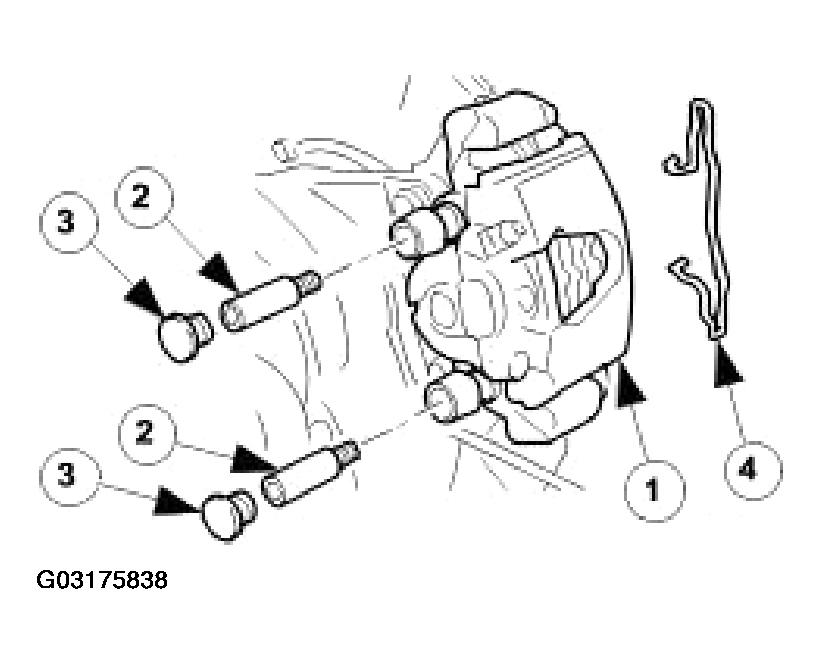

- Install the brake caliper on to the carrier.
- Position the caliper assembly on to the carrier.
- Install the guide pins and tighten to 25-30 Nm.
- Install the dust caps.
- Install the brake caliper spring clip.

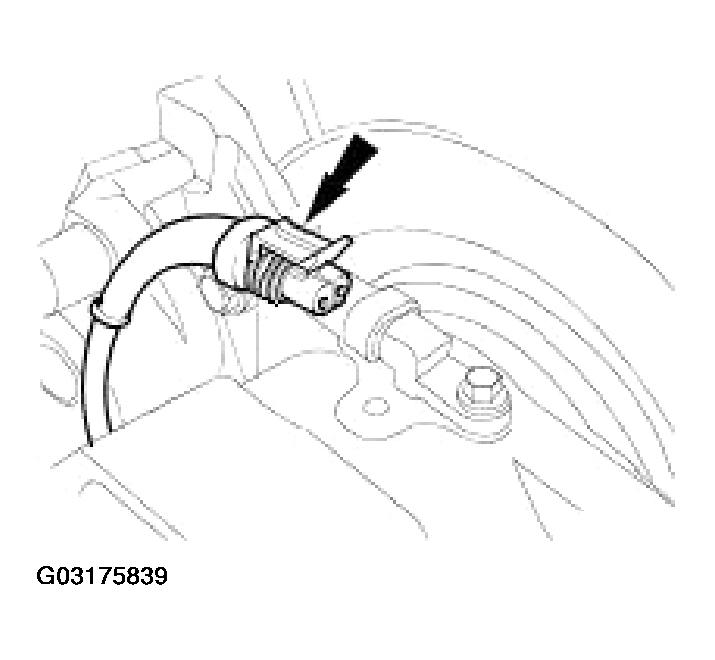

- Connect the wheel speed sensor electrical connector.

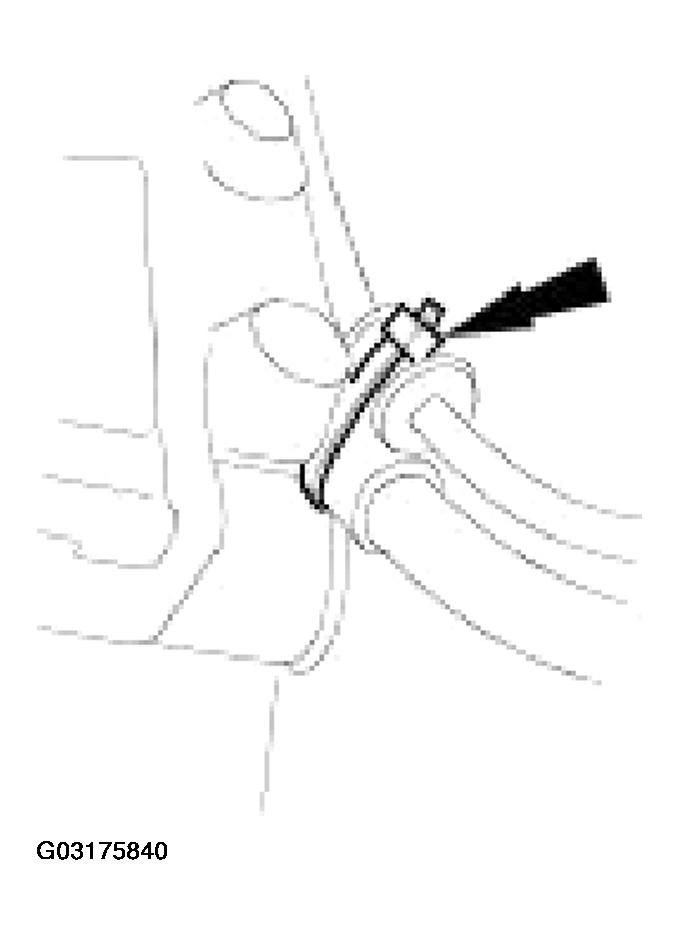

- Using a new tie strap, secure the wheel speed sensor harness to the brake hose clip.
- Install the rear wheel. Refer to WHEELS & TIRES article.
- Remove the axle stands and lower the vehicle.
- Check and adjust the rear wheel alignment as necessary. SPECIFICATIONS & PROCEDURES article.
WARNING:
ENSURE THE SPECIAL TOOLS ARE POSITIONED DIAMETRICALLY OPPOSITE ON THE SPRING AND THE ARMS ARE CORRECTLY SEATED.
WARNING:
TIGHTEN THE SPECIAL TOOL ADJUSTMENT BOLTS EVENLY WHEN COMPRESSING THE SPRING.
CAUTION:
Make sure the adaptive damping electrical connector is correctly aligned. Failure to follow these instructions may cause damage to the electrical connector.
