Transmission Unit Gear Selector

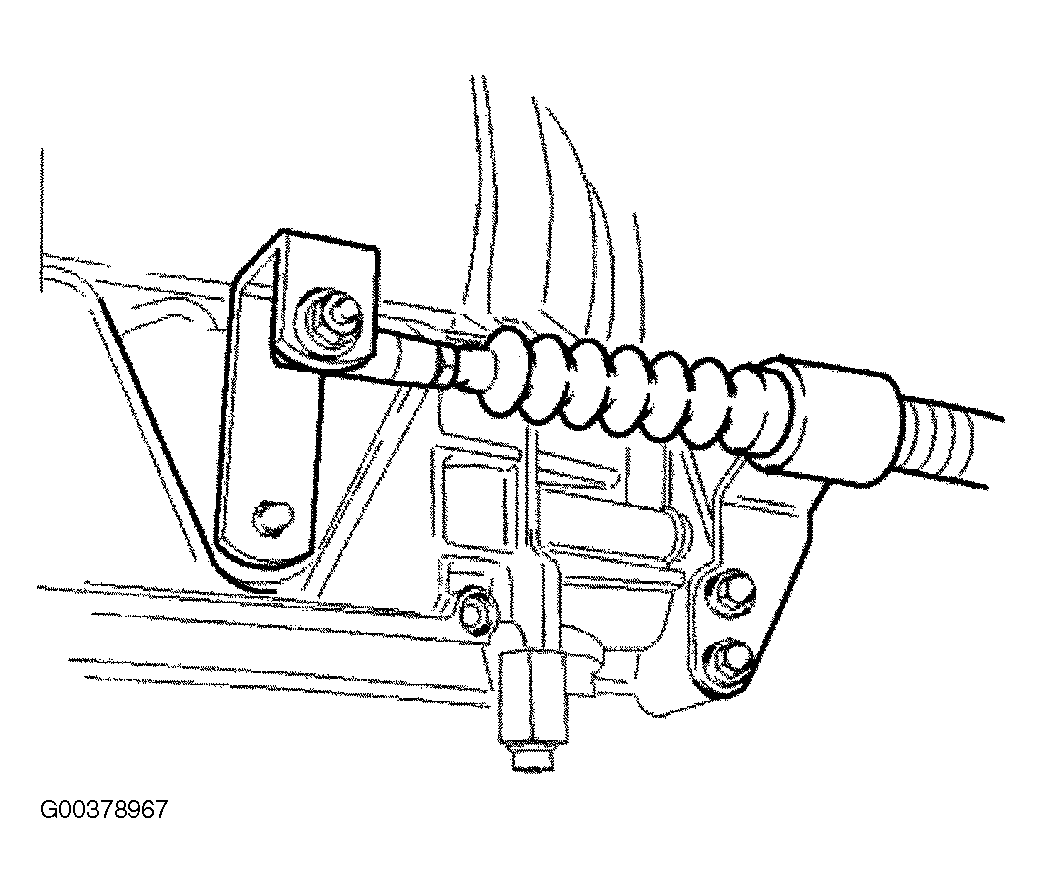

Fig 1: Identifying Transmission Unit Gear Selector
Courtesy of JAGUAR CARS, INC.
The gear selector at the transmission unit:
Is connected to the operators selector module by cable.
Operates the selector valve, at the electro-hydraulic control unit.
