Brake Shift Interlock Actuator: Removal
- Remove the battery cover and disconnect battery ground cable.
- Remove the J-gate surround. See SELECTOR LEVER GATE FINISH PANEL
.
- Remove the console finisher veneer panel. See FLOOR CONSOLE FINISH PANEL
for 2001 or FLOOR CONSOLE FINISH PANEL
for 2002-03.
- Remove the interlock solenoid actuating lever cover.
Courtesy of JAGUAR CARS, INC.

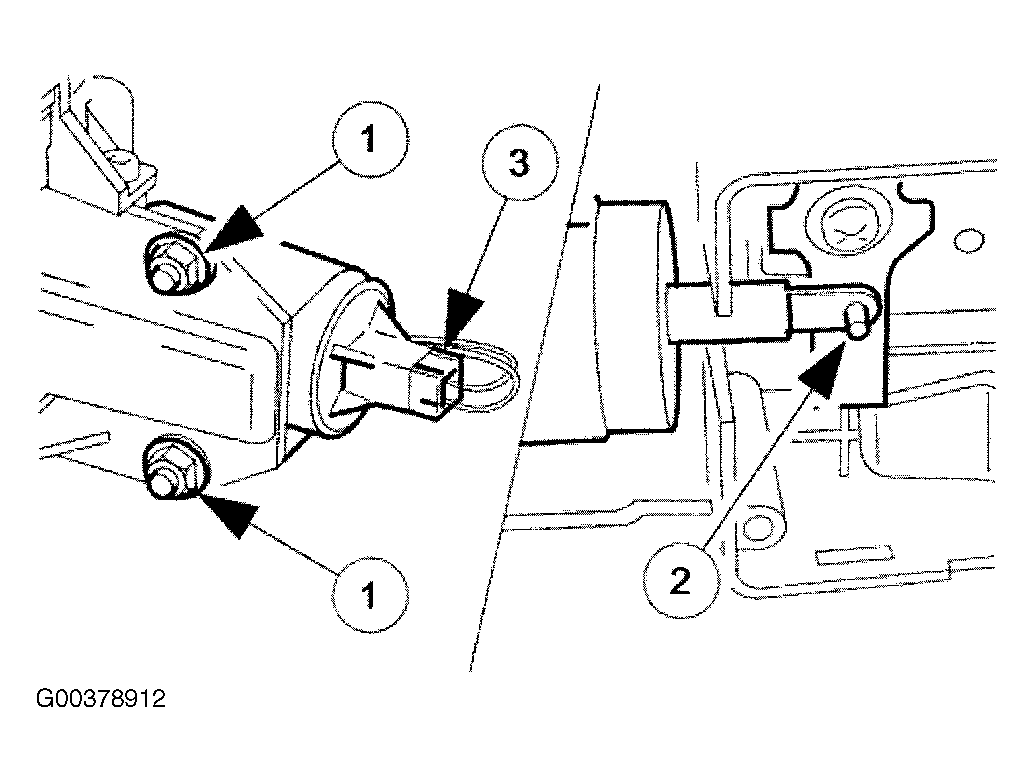

- Remove the gearshift interlock solenoid.
- Remove the solenoid nuts.
- Detach the solenoid from the latch pin.
- Disconnect the solenoid multiplug.
Courtesy of JAGUAR CARS, INC.
