Selector Lever Gate Finish Panel: Removal

  1. Apply protective tape to veneer along each side of "J" gate finisher.
  2. Using a screwdriver in the slot in front of the finisher, carefully lift the finisher and ease it from the "J" gate surround.

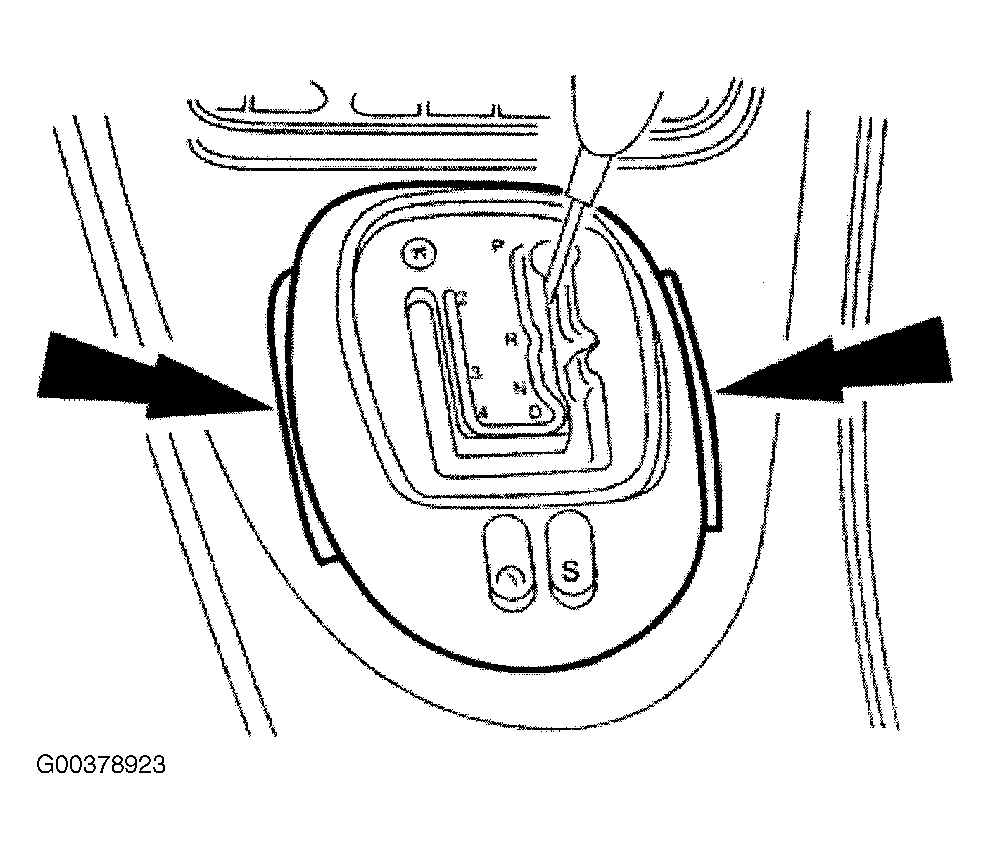

    Fig 1: Removing & Installing "J" Gate Trim
    G00378923Courtesy of JAGUAR CARS, INC.
