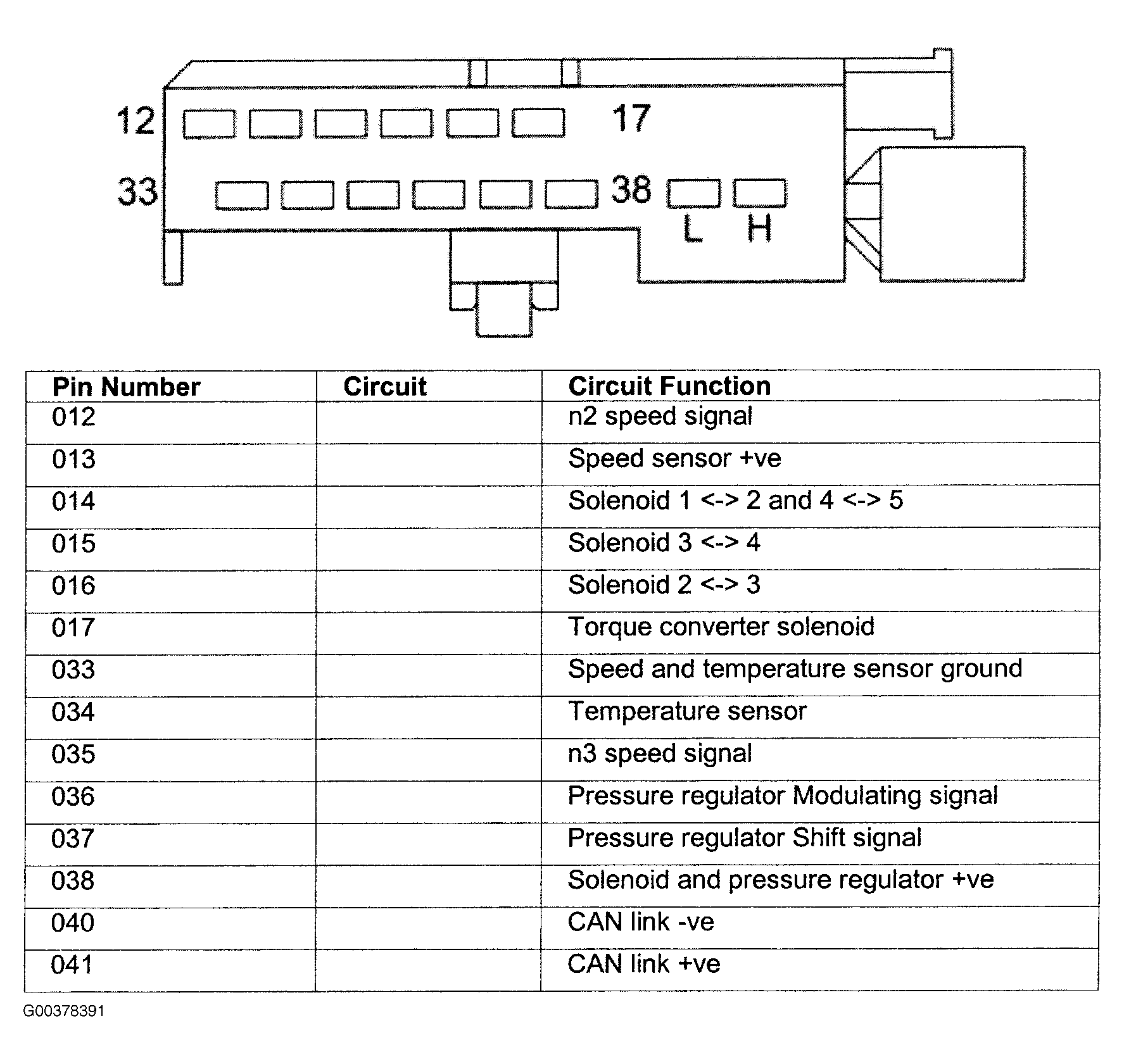

Fig 1: Identifying Connector EM061 Terminals
Courtesy of JAGUAR CARS, INC.

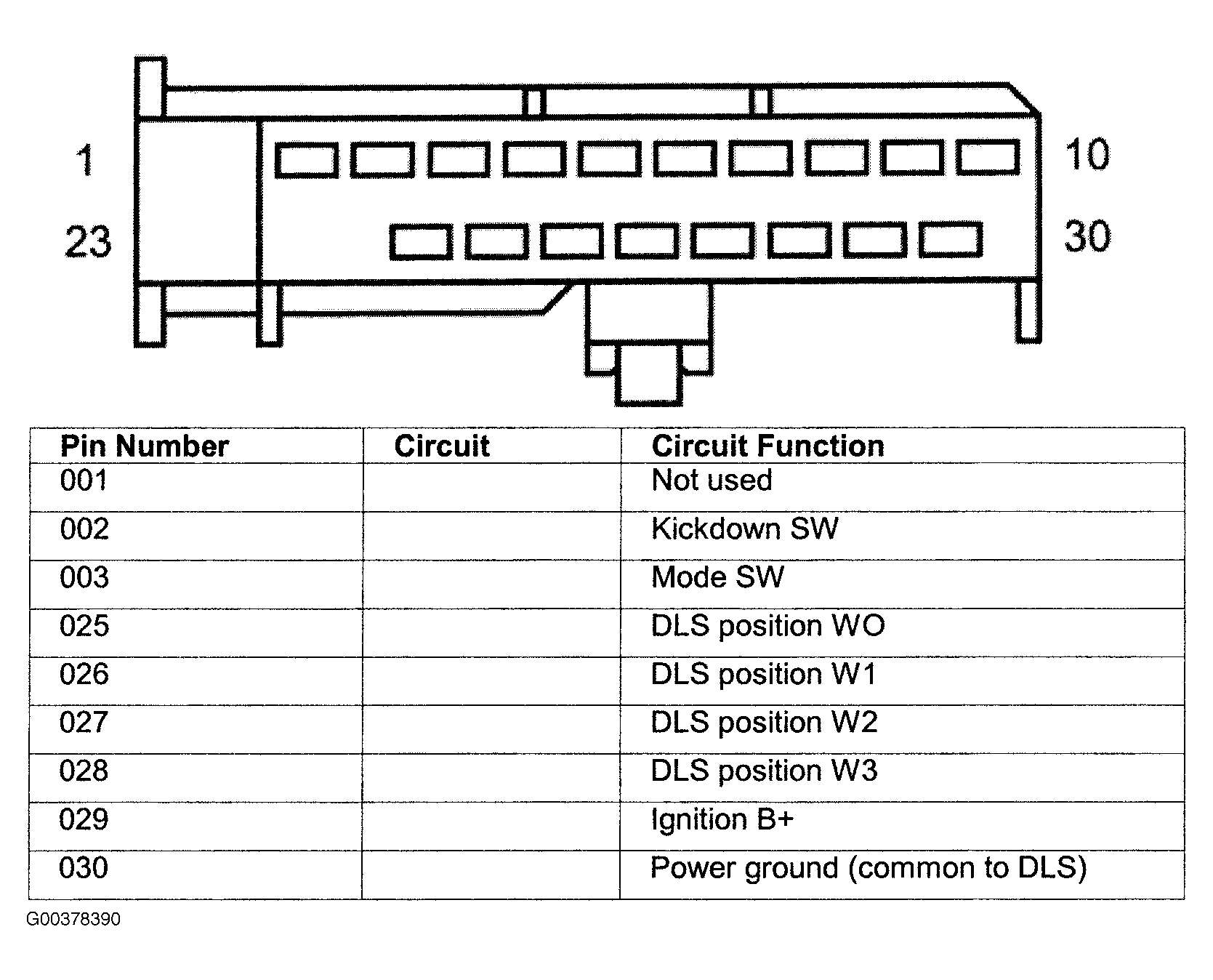

Fig 2: Identifying Connector EM062 Terminals
Courtesy of JAGUAR CARS, INC.

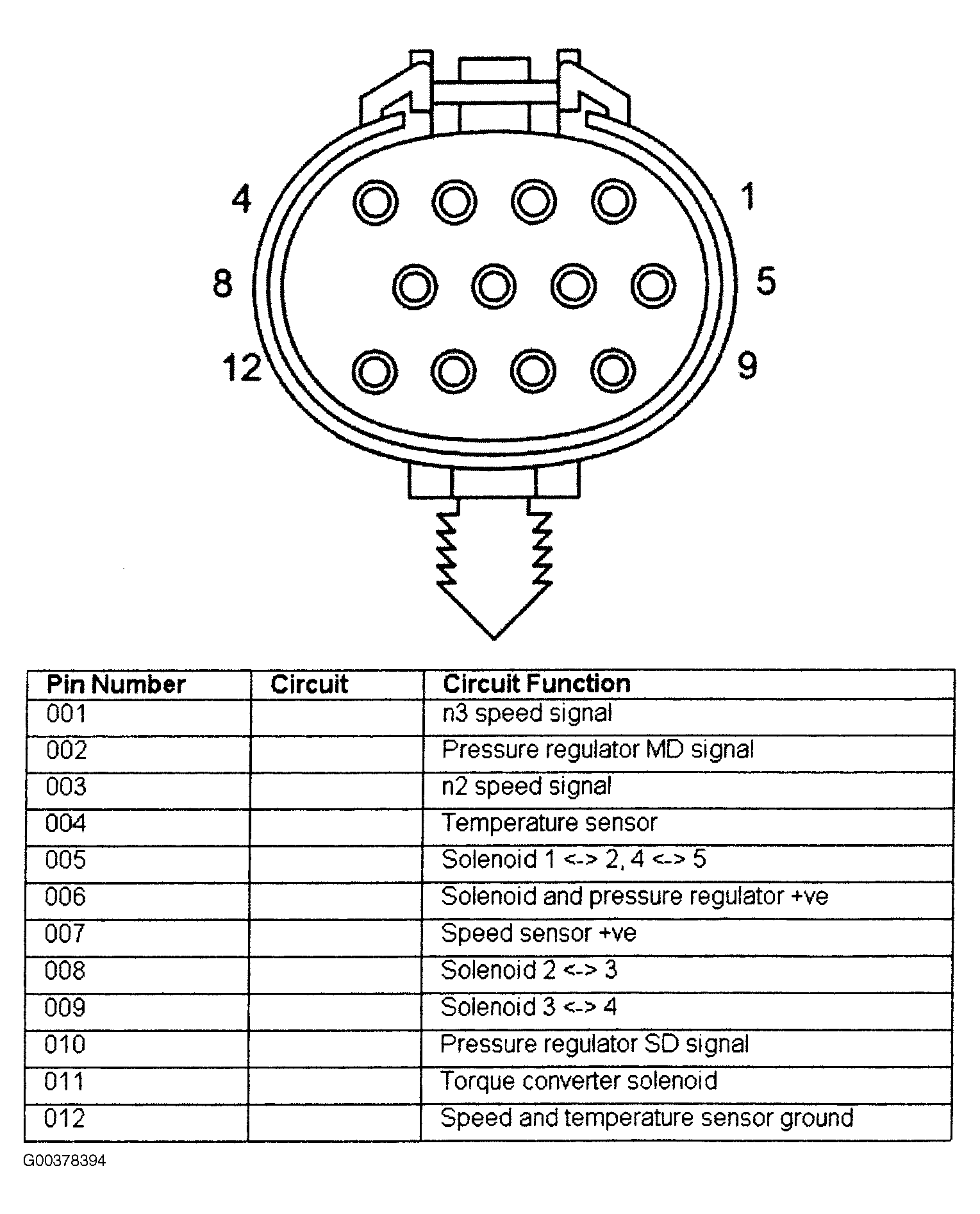

Fig 3: Identifying Connector CC008 Terminals
Courtesy of JAGUAR CARS, INC.

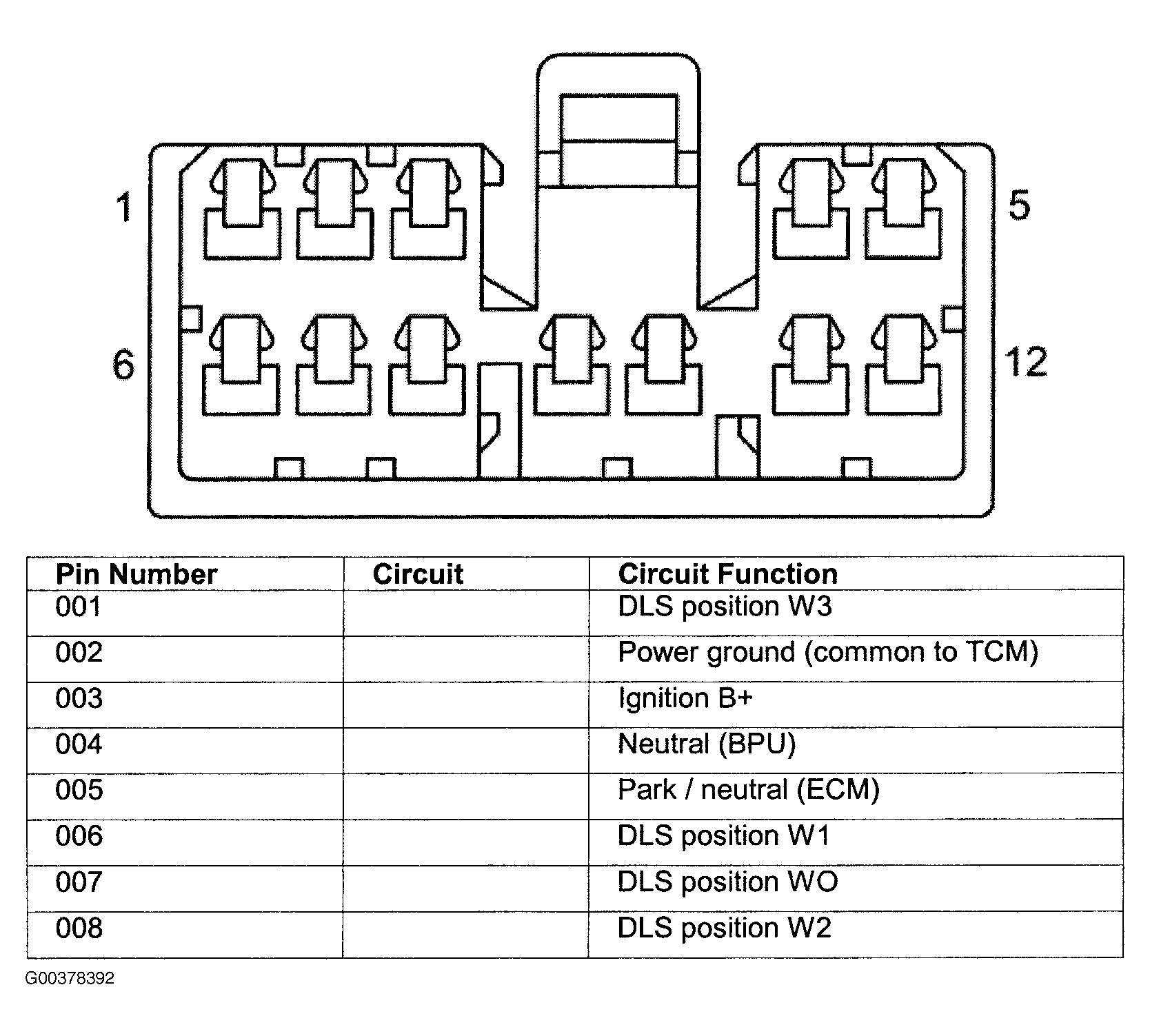

Fig 4: Identifying Connector GB001 Terminals
Courtesy of JAGUAR CARS, INC.

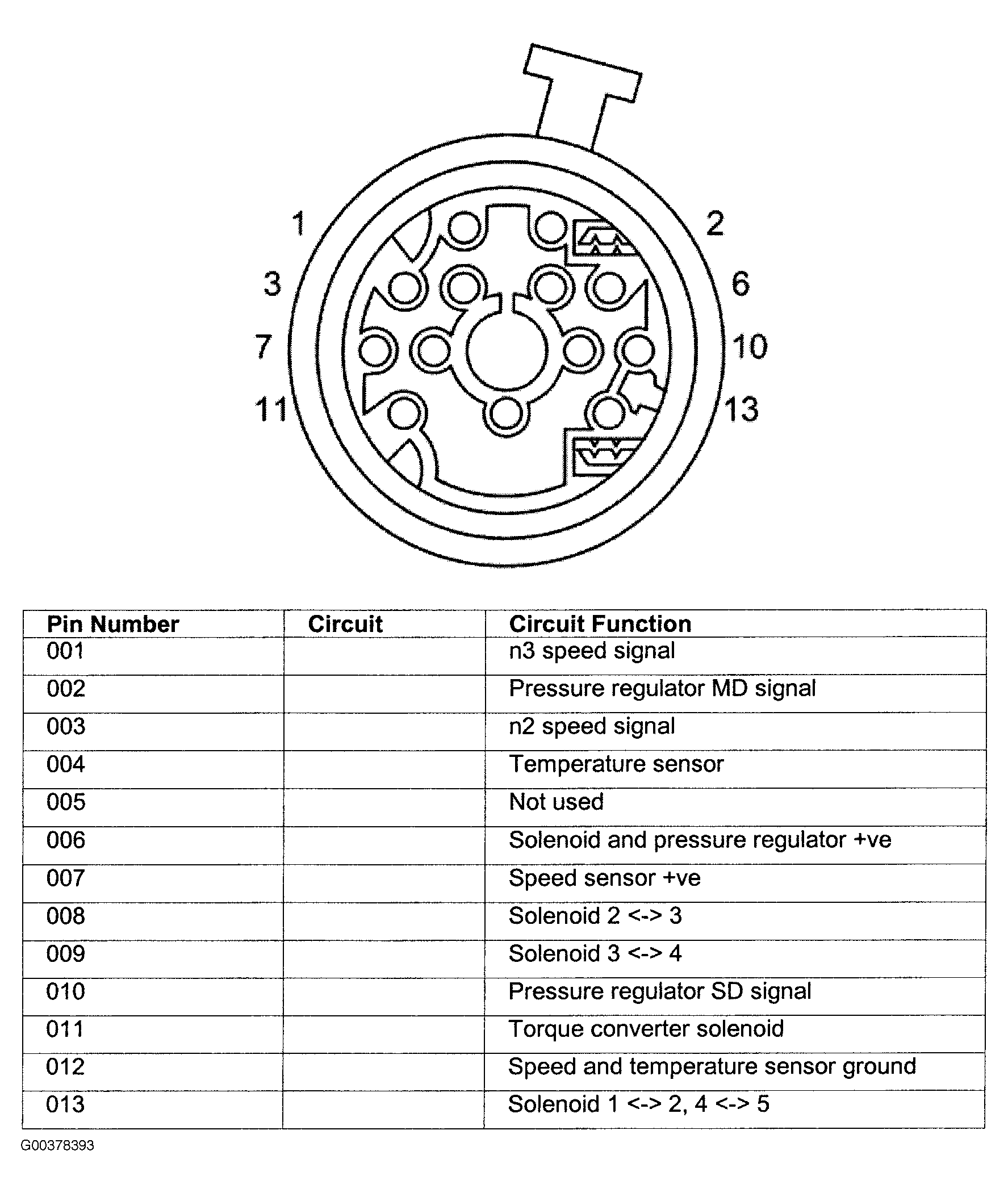

Fig 5: Identifying Connector EM044 Terminals
Courtesy of JAGUAR CARS, INC.
