Extension Housing Seal: Installation

  1. Installation is the reverse of the removal procedure noting the following:
  2. Fit the oil seal.
    1. Lubricate the housing seal bore.
    2. Lubricate the outside diameter of the seal.
    3. Using seal replacer 307-378 drive the seal squarely into position.

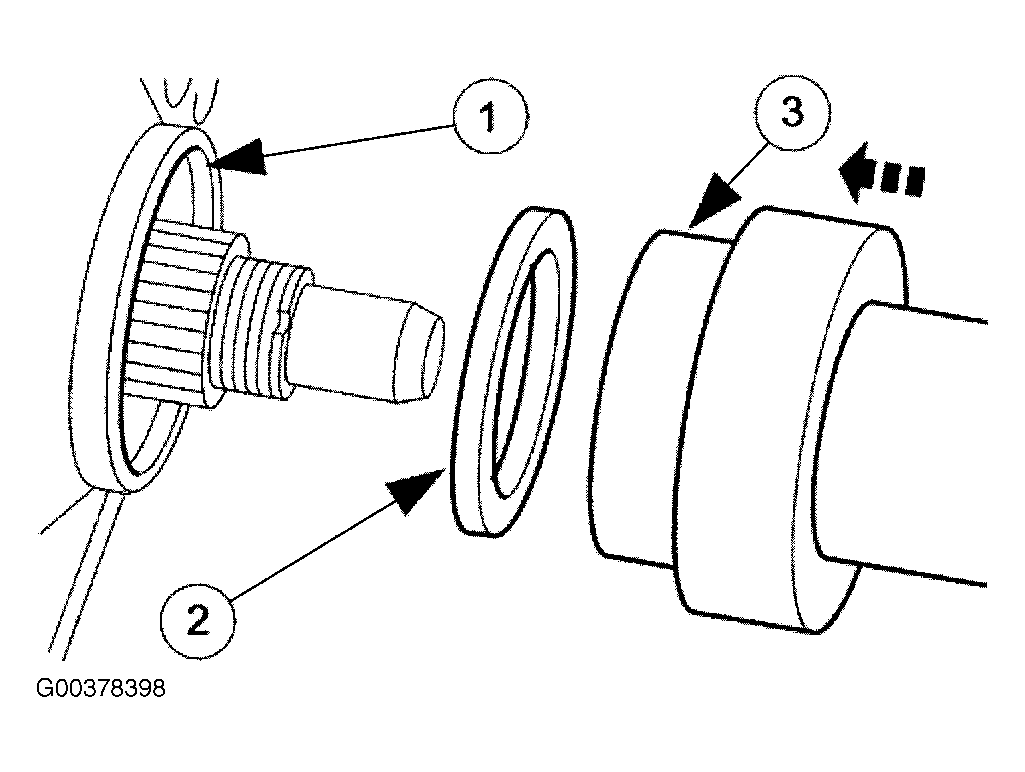

    Fig 1: Installing Output Shaft Oil Seal
    G00378398Courtesy of JAGUAR CARS, INC.
  3. Refit the drive flange.
    • Use a new nut. Tighten the flange nut to the specified torque figure.
    • Stake the nut to the output shaft.

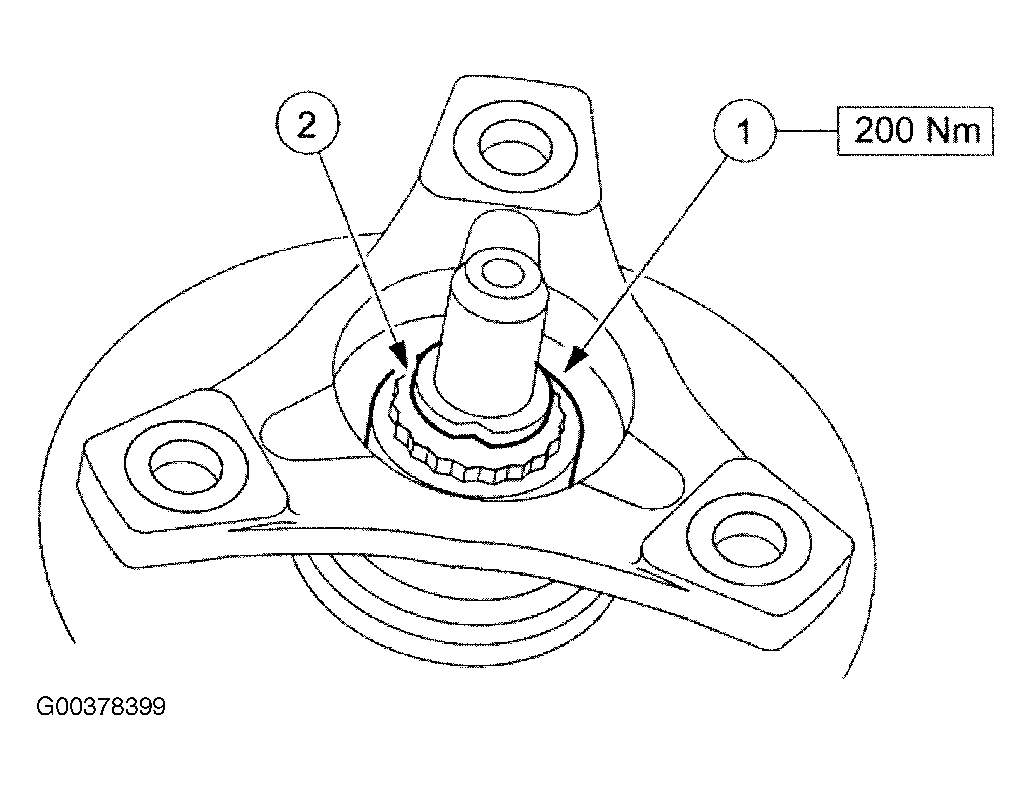

    Fig 2: Installing New Output Shaft Flange Retaining Nut
    G00378399Courtesy of JAGUAR CARS, INC.
  4. Refit the bolts securing the driveshaft and tighten to the specified torque figure. See Figure.
  5. Refit the rear mounting crossmember and tighten the securing bolts to the specified torque figures. See Figure.
  6. Refill transmission. Refer to TRANSMISSION FLUID FILLING .
  7. Check for leaks and remove spilt fluid.
