Transmission Support Insulator: Installation

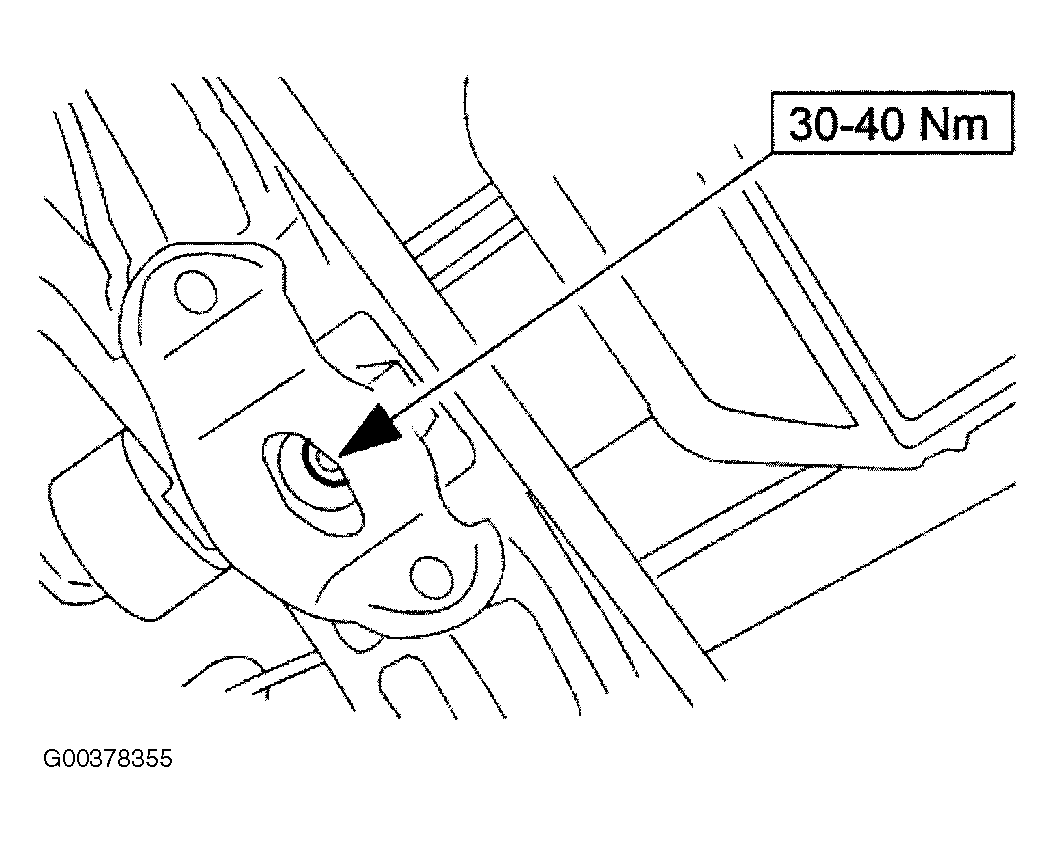

Fit the mounting rubber assembly to position and tighten the center bolt to 30-40 Nm. See Figure.
Tighten the crossmember to body bolts and the mounting rubber to crossmember bolts to 22-28 Nm.

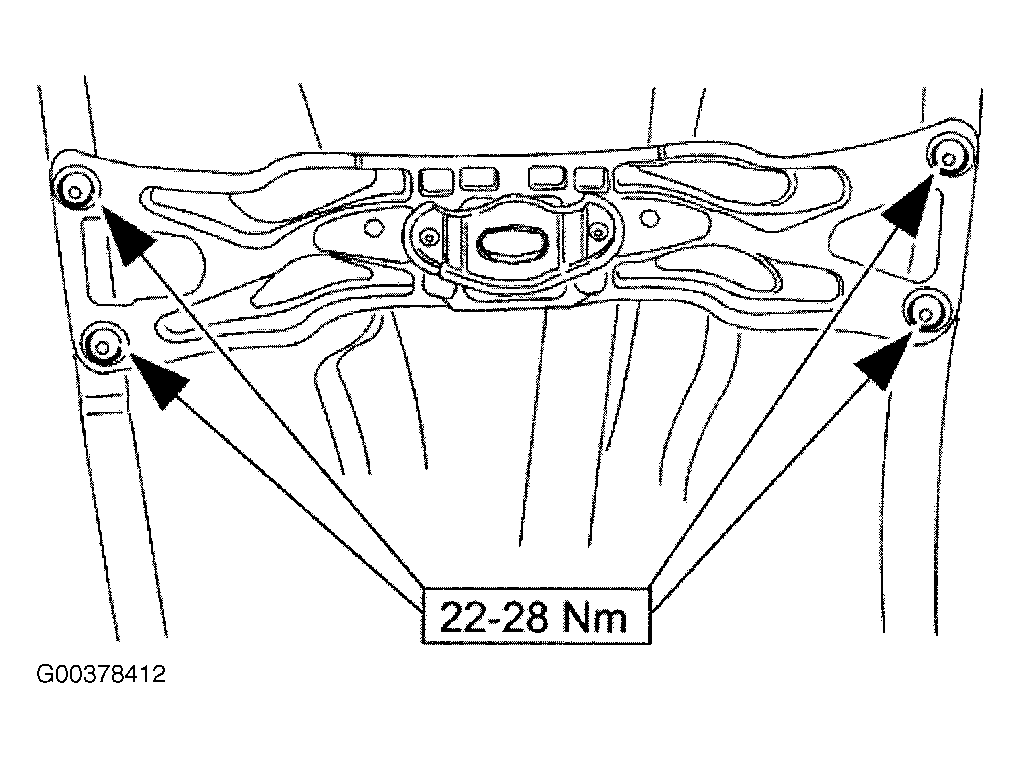

Fig 1: Tightening Crossmember-To-Body Bolts
Courtesy of JAGUAR CARS, INC.
