Output Speed Sensor Circuit
Output Speed Sensor Circuit

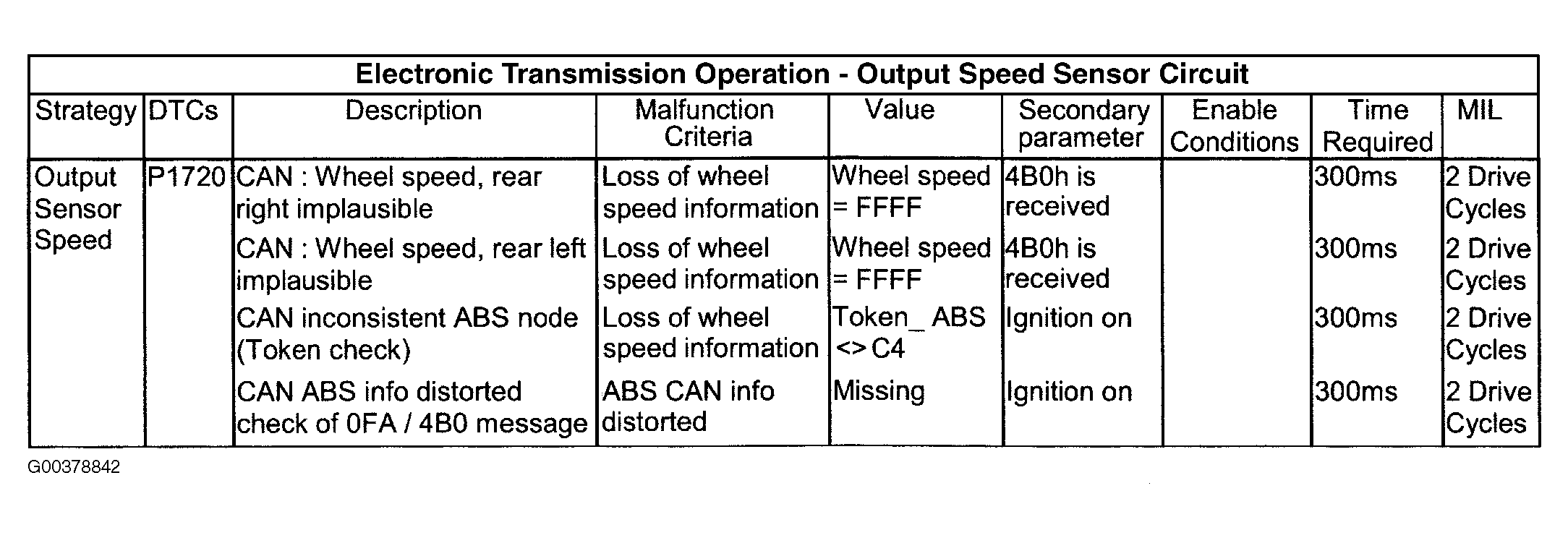

Fig 1: Output Speed Sensor Circuit Table
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
