Speed Control

The Vehicle Speed Control system offers the driver relaxed vehicle cruising by enabling a pre-set constant vehicle speed to be maintained without driver operation of the accelerator pedal.

Vehicle Speed Control is activated by an ON/OFF master switch adjacent to the 'Sport' mode switch in the 'J' gate surround. An integral red light illuminates when the system is activated.

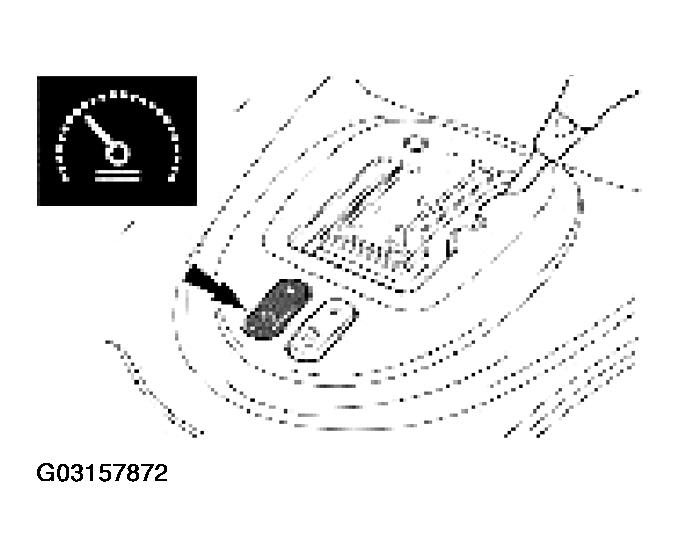

Fig 1: Locating Vehicle Speed Control ON/OFF Master Switch

Courtesy of JAGUAR CARS, INC.

A steering wheel mounted four button control pad provides for driver increase (+) or decrease (-) of set vehicle speed, suspension of system operation with set speed memorized (CANCEL) and resumption of operation at memorized vehicle speed (RESUME). The selected vehicle speed is displayed in the message center. The vehicle speed control system will not operate below 26km/h (16mph).

The set vehicle speed can be increased or decreased in 2km/h (1 mph) increments by briefly pressing the (+) or (-) control button up to a maximum of five times. Alternatively, the (+) or (-) button can be pressed and held until the required vehicle speed is displayed in the message center.

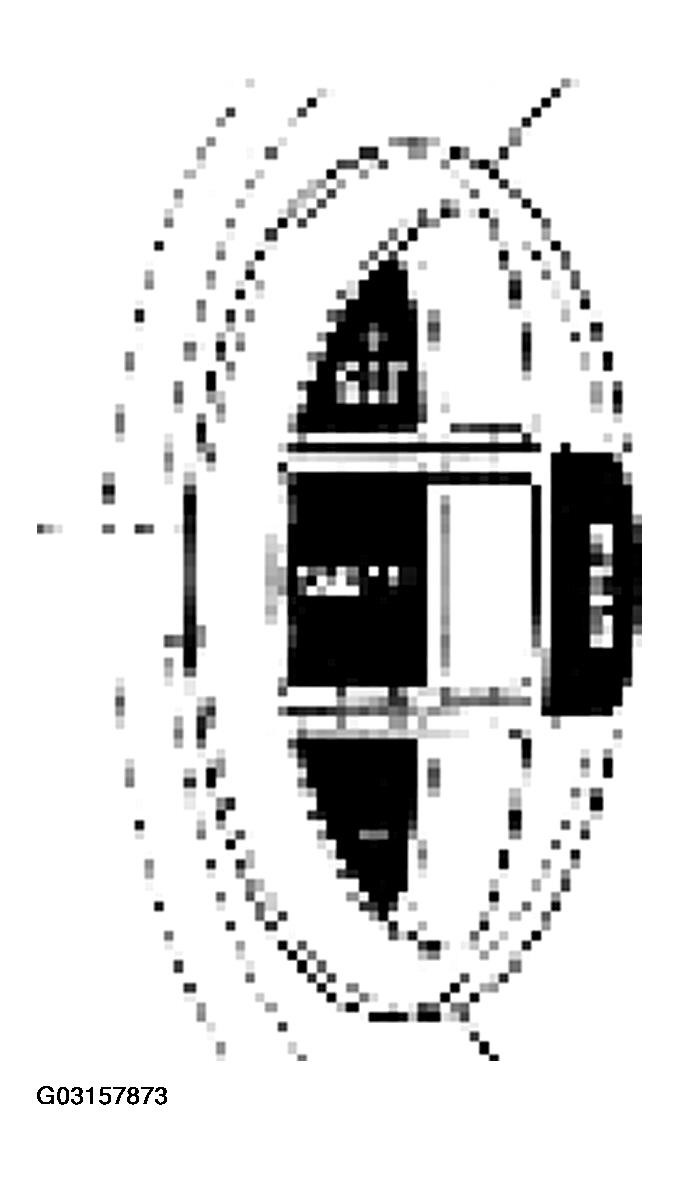

Fig 2: Locating Steering Wheel Mounted Four Button Control Pad

Courtesy of JAGUAR CARS, INC.
