Ignition Coil-On-Plug LH: Installation

Installation is a reversal of the removal procedure.

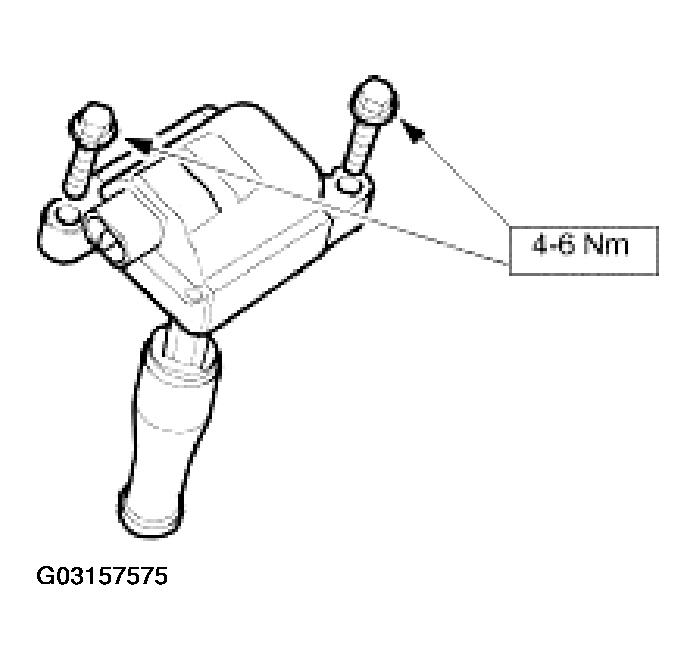

Fig 1: Installing Ignition Coil (LH)
Courtesy of JAGUAR CARS, INC.
2.

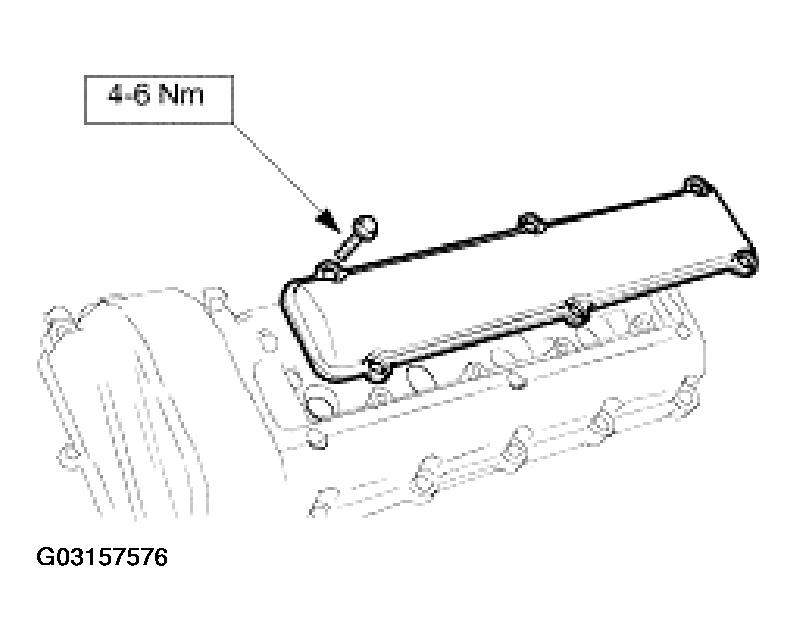

Fig 2: Installing Coil On-Plug Cover (LH)
Courtesy of JAGUAR CARS, INC.
