Engine Control Module (ECM): Removal

  1. Connect the battery and fit the battery cover.
  2. Remove ECM housing cover.

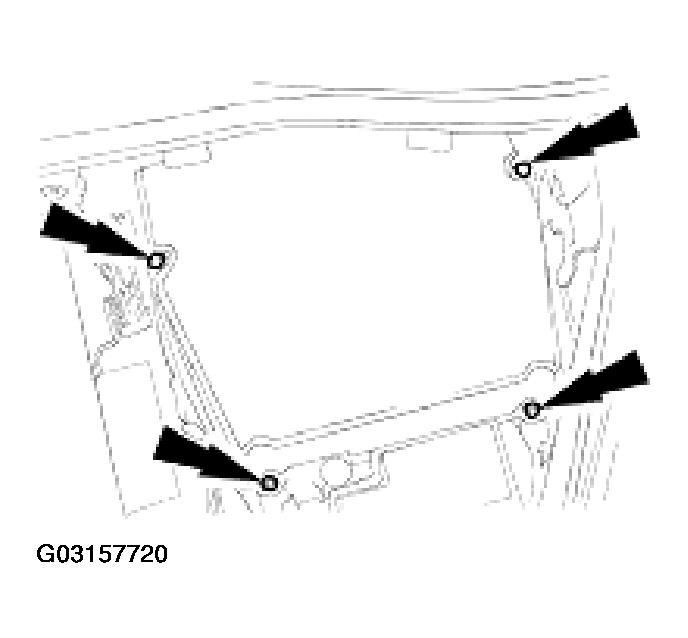

    Fig 1: Removing Housing Cover
    G03157720Courtesy of JAGUAR CARS, INC.
  3. RHD only: Remove security bracket securing screws.
    • Remove bracket.
  4. Disconnect electrical connectors.
  5. Lift ECM from housing.

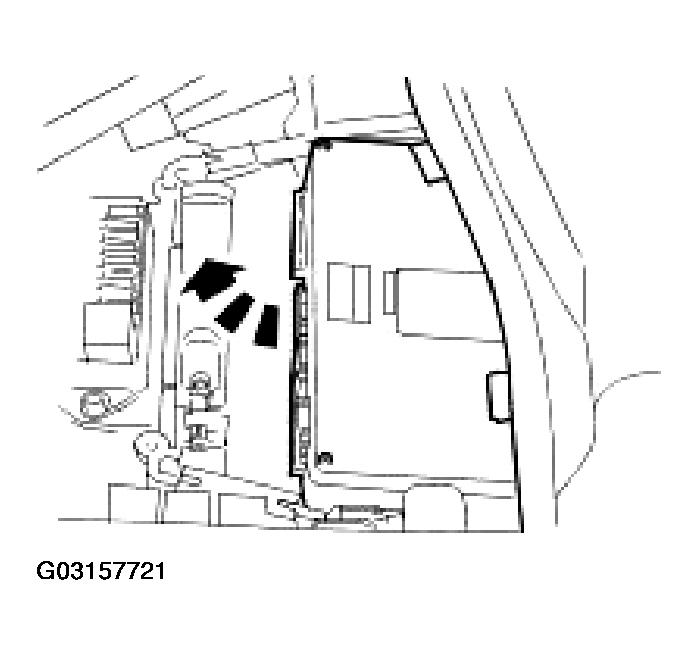

    Fig 2: Removing ECM
    G03157721Courtesy of JAGUAR CARS, INC.
  6. RHD only: Remove security bracket securing screws.
    • Remove brackets.
