Engine Coolant Temperature (ECT) Sensor: Installation
- Fitting is the reverse of the removal procedure, noting that a new sealing washer should be used and tighten the sensor as specified.

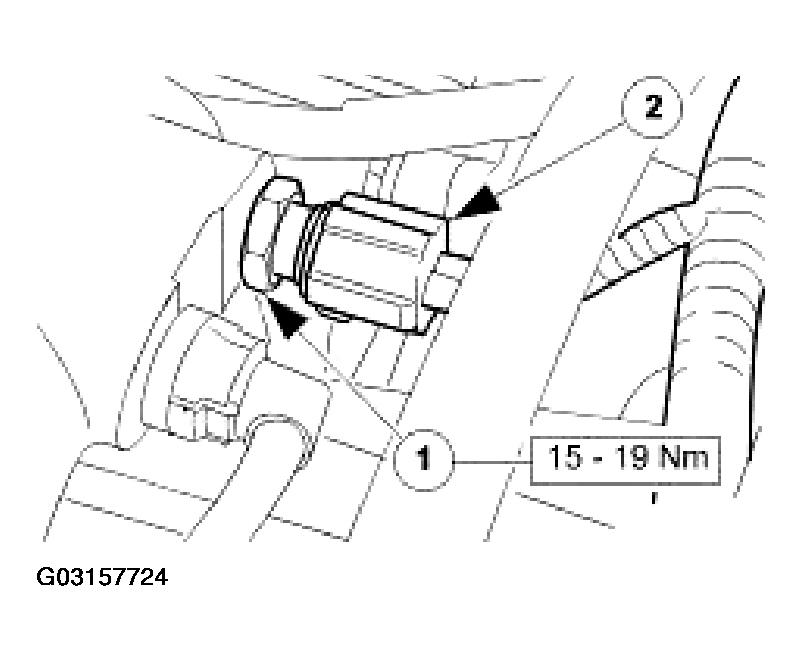

- Fit the sensor and new sealing washer. (1)
- Connect the harness plug to the sensor. (2)
- Check and adjust the coolant level as required.
