XK8 2D Convertible
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Safety Belt System
›
Description And Operation
›
Notes
Description And Operation: Notes

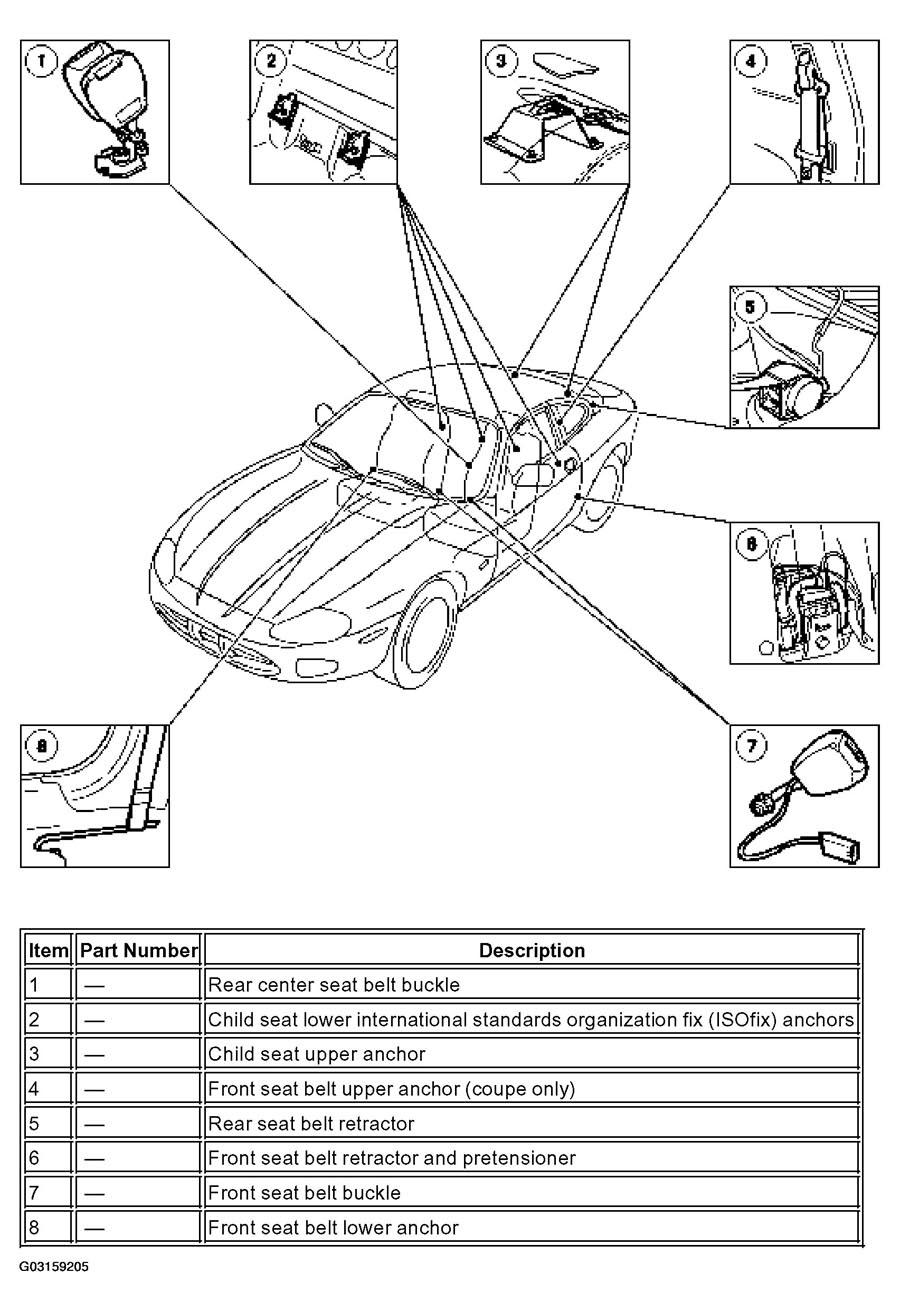

Fig 1: Identifying Safety Belt System Components
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
