Steering Column Lock Module: Installation

  1. Install the solenoid to the steering lock housing.
    • Install and fully seat the solenoid to the steering lock housing (1).
    • Use a suitable pin punch to drive in a new pin (2) to secure the solenoid to the lock housing.

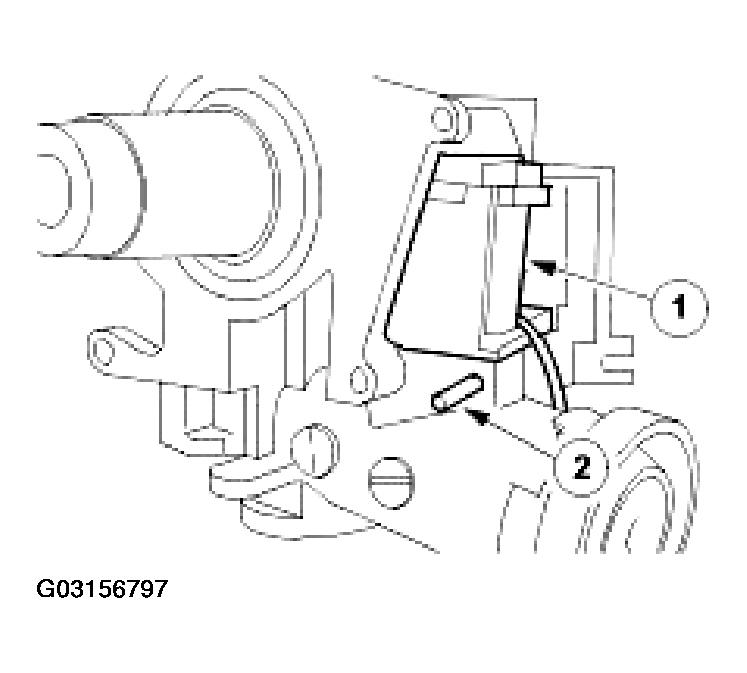

    Fig 1: Installing Solenoid To Steering Lock Housing
    G03156797Courtesy of JAGUAR CARS, INC.
  2. Install the steering column switchgear mounting bracket; refer to STEERING COLUMN MULTIFUNCTION SWITCH MOUNTING BRACKET .
  3. Install the cassette and cancellation module; refer to STEERING COLUMN MULTIFUNCTION SWITCH .
  4. Install the steering wheel; refer to STEERING WHEEL .
  5. Install the air bag module; refer to DRIVER-SIDE AIR BAG MODULE .
  6. Reconnect the battery ground cable.

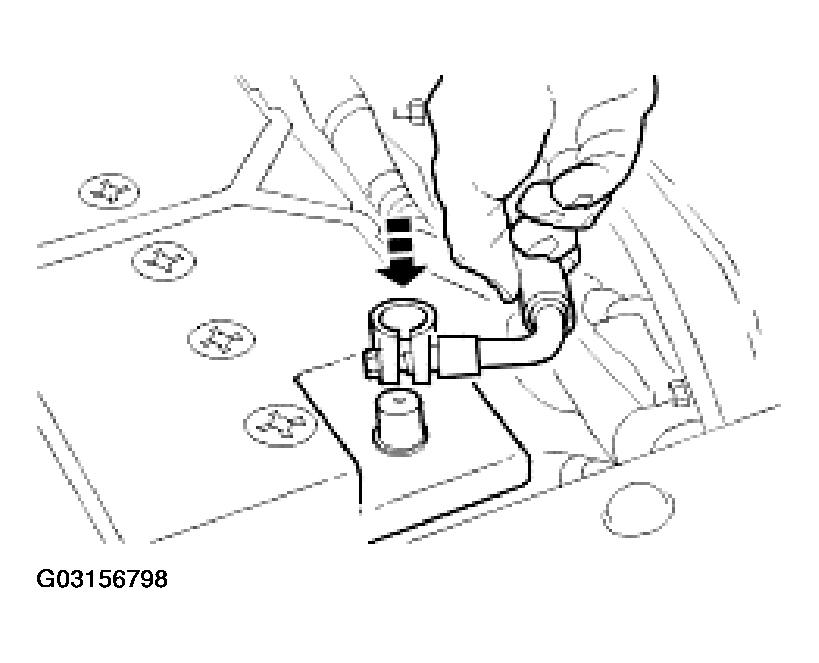

    Fig 2: Reconnecting Battery Ground Cable
    G03156798Courtesy of JAGUAR CARS, INC.
  7. Install the battery cover.
  8. Install the steering column upper cowl.
  9. Install the steering column lower cowl; refer to STEERING COLUMN LOWER SHROUD .
  10. Install the underscuttle; refer to INSTRUMENT PANEL LOWER TRIM PANEL .
